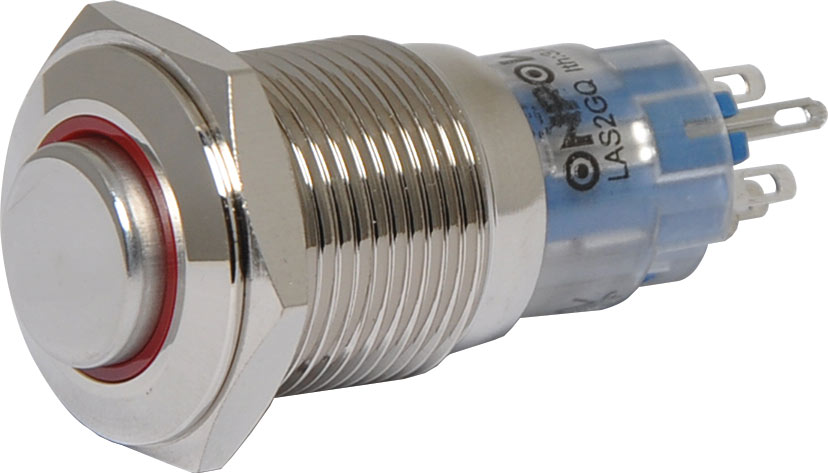

DPDT Momentary LED Red Solder Tail Pushbutton Switch

SKU: S0930
Switch type: DPDT Contact rating: 3A @ 250V AC Contact resistance: <50mΩ Insulation resistance: >100MΩ LED: 12V AC/DC Dialectric strength: 1000V between poles Electrical life: >30,000 cycles
$18.14

All Prices Shown are (ex GST)
Bulk Pricing
ea $18.14
10+ $16.32
25+ $14.50
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

DPDT momentary LED red solder tail push button switch.


Specifications

Colour: Red

  • Action: Momentary
  • Switch type: DPDT
  • Contact rating: 3A @ 250V AC
  • Contact resistance: <50mΩ
  • Insulation resistance: >100MΩ
  • LED: 12V AC/DC
  • Dielectric strength: 1000V between poles
  • Electrical life: >30,000 cycles

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
