NC/NO Green Industrial IP67 Momentary Pushbutton Start Switch

Be the first to review this product

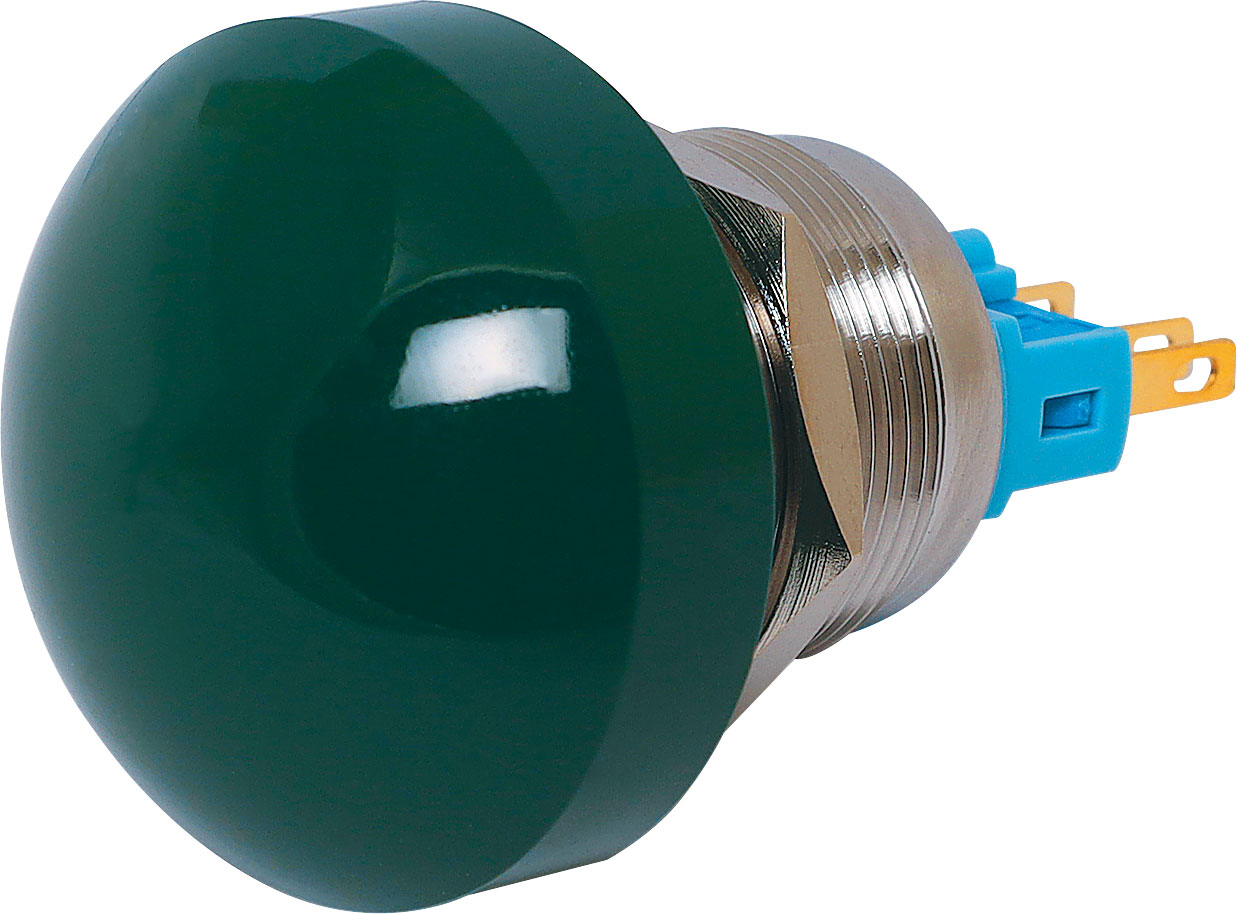

This industrial grade 22mm pushbutton switch is ideal for medical, access control, emergency and mining applications.
SKU: S0918
$27.23
Per ea
Quantity Price
ea $27.23
4+ $24.50
6+ $21.77

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This industrial grade 22mm pushbutton switch is ideal for medical, access control, emergency and mining applications. IP67 rated to prevent dirt, dust and water penetration. High quality metal actuator.


Features

  • NC/NO contact type, configurable as SPDT
  • IP65/IP67 Waterproof Rated
  • ROHS Compliant
  • Vandal Resistant
  • Heavy Duty
  • Non Magnetic
  • Corrosion Resistant

Specifications

Contact Type: NC/NO

  • Operating Temperature: -40° ~ 70°C
  • Mechanical Life: > 1000000 cycles
  • Operating Humidity: 10% ~ 99%
  • Input Voltage: 3-250V DC/AC
  • Input Current: =5A
  • Contact Resistance: < 50MΩ
  • Pulse Time: < 50Mn
  • Operating Pressure: 3-6N
  • Contact Material: Silver Plated Gold
  • Material: Stainless Steel 304/316
  • Terminal: Quick Terminal
  • Operation Type: Momentary

12 Months

We Offer 12 Months for this product
