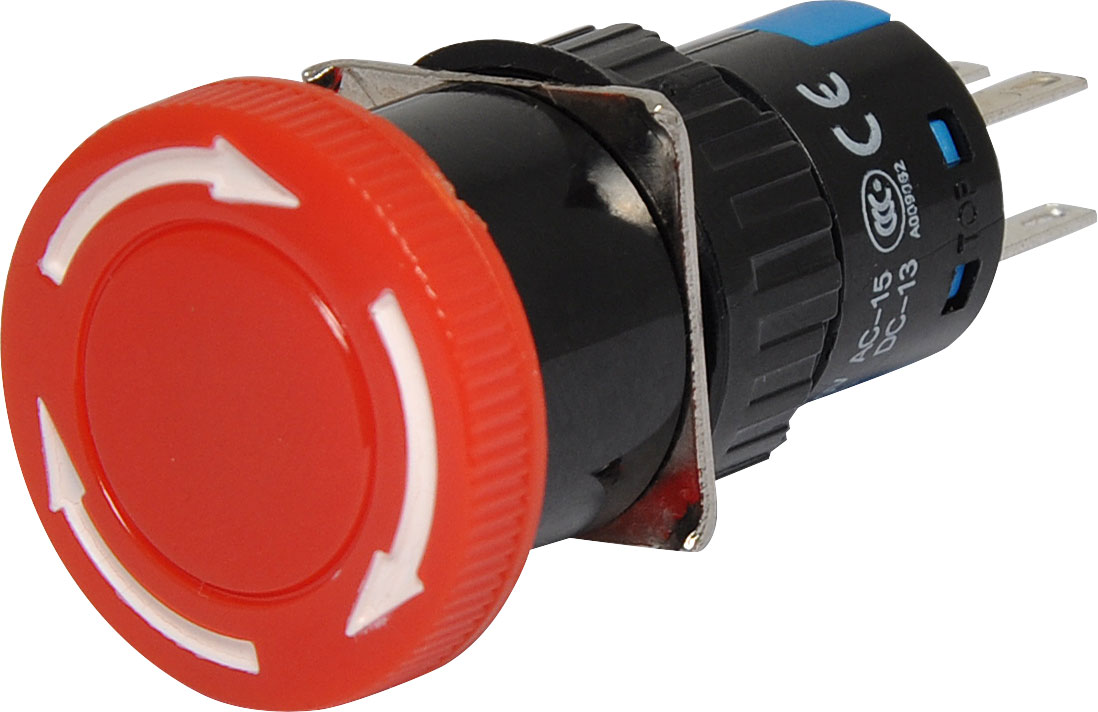

DPDT Emergency Stop Solder Tail Pushbutton Switch

SKU: S0820
Alternate action latches in off position. Rotating the spring loaded actuator clockwise allows circuit to reconnect.
$16.09

All Prices Shown are (ex GST)
Bulk Pricing
ea $16.09
10+ $15.18
25+ $14.09
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Alternate action latches in off position. Rotating the spring loaded actuator clockwise allows circuit to reconnect. IP65 Rated

Specifications:

Switch type: DPDT

  • Contact rating: 500mA @ 250V AC 1A @ 24V DC
  • Thermal Current: 5A
  • Contact resistance: <50mΩ
  • Insulation resistance: >100MΩ
  • Dialectric strength: 1000V between poles
  • Electrical life: >50,000 cycles
  • Ingress protection rating: IP65

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
