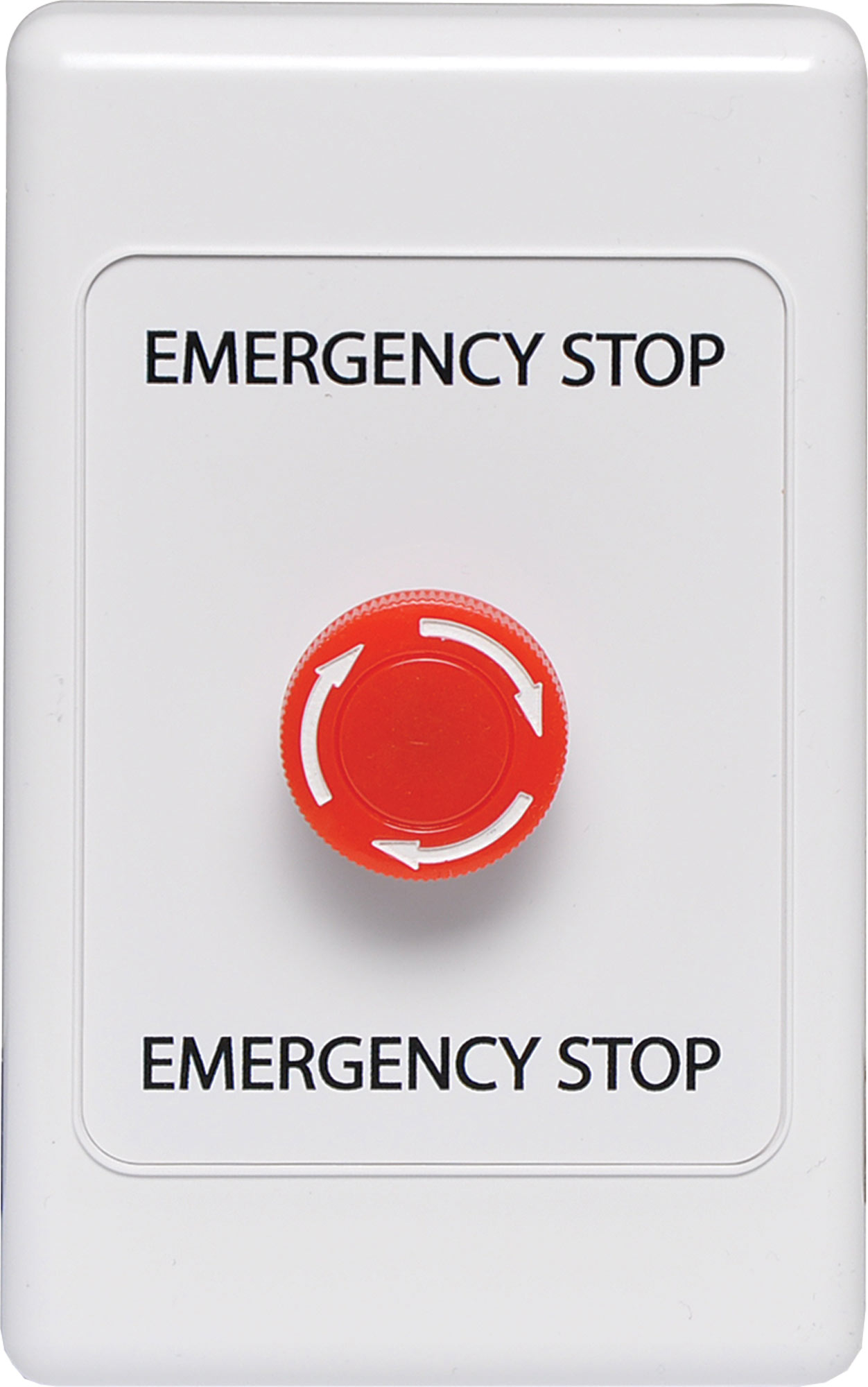

Wallplate Fitted With Push/Twist Emergency Stop Switch

Manufacturer: Dynalink
Be the first to review this product
Alternate action latches in off position. Rotating the spring loaded actuator clockwise allows circuit to reconnect.
SKU: S0160
$34.50
Per ea
Quantity Price
ea $34.50
2+ $31.36
4+ $27.73

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Alternate action latches in off position. Rotating the spring loaded actuator clockwise allows circuit to reconnect. IP65 Rated.

All wall plates assembled by Altronics are supplied with two facia clip on covers. These are designed to match your current decor. Simply clip on the desired cover after installation.

Specifications:

Switch type: DPDT

  • Contact rating: 500mA @ 250V AC 1A @ 24V DC
  • Contact resistance: <50mΩ
  • Insulation resistance: >100MΩ
  • Dialectric strength: 1000V between poles
  • Electrical life: >50,000 cycles
  • Ingress protection rating: IP65

12 Months

We Offer 12 Months for this product
