Contactless ‘Wave to Open’ Wallplate

Be the first to review this product

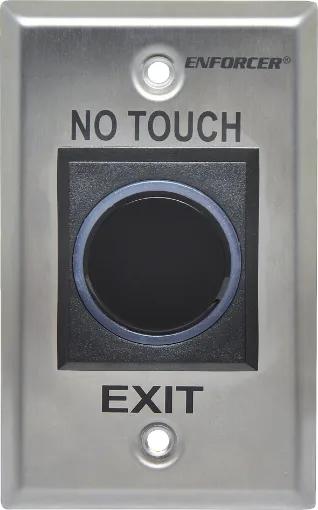

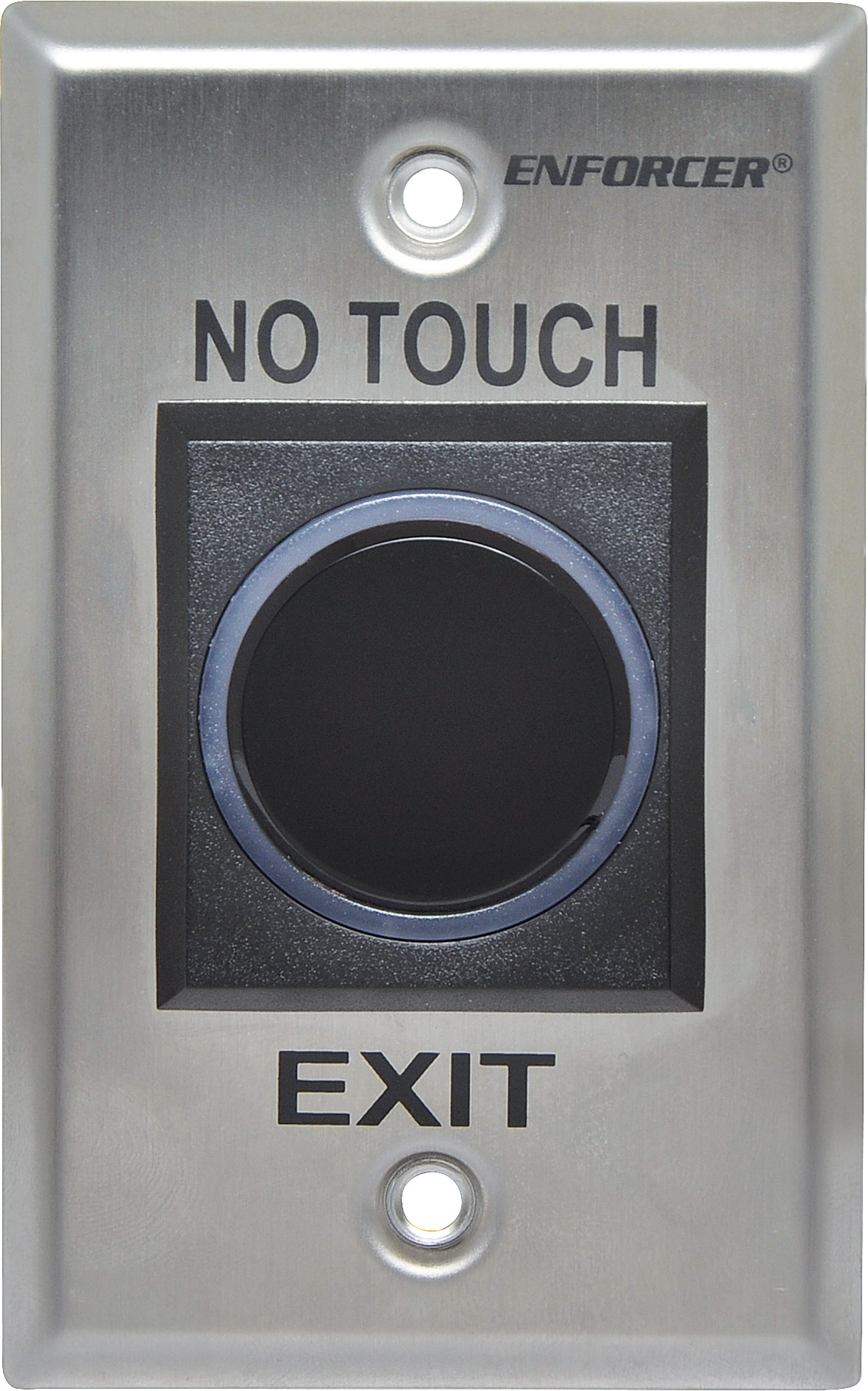

This contactless 'wave to open' wallplate uses infra-red technology to allow access from a protected area or activate a device simply by waving a hand.
SKU: S0156
$63.59
Per ea
QuantityPrice
ea$63.59
2+$59.05
4+$52.68

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This contactless ''wave to open'' wallplate uses infra-red technology to allow access from a protected area or activate a device simply by waving a hand. This no touch device is ideal for opening automated doors in clinics, hospitals and clean rooms or simply to minimise touched surfaces in commercial buildings, schools and educational facilities. Adjustable range from 6-20cm. 3A internal relay contacts. Turns from red to green or green to red when activated. 12-24V AC/DC input. Fits into a standard single gang electrical wallplate. Dimensions: 70 x 115 x 29mm

Features

  • Users simply wave a hand in front of sensor
  • Adjustable range from 6-20cm
  • Reliable IR technology senses motion
  • No touch reduces the risk of cross-contamination
  • Stainless steel single-gang plate
  • 3A relay, adjustable from 0.5~30 sec, toggle, or as long as hand is near the sensor
  • LED illuminated sensor area for easy identification
  • Selectable LED colors (turns from red to green or green to red) when activated

Specifications

Operating Voltage: 12V-24V DC

  • Current Draw: 120mA@12V DC
  • Relay type: Form "C" NO/NC/COM
  • Switching Capacity: 3A@24V DC
  • Response Time: 10mS
  • LED''s: Green to red/red to green
  • Output Time: Adjustable, 0.5~30sec., toggle, or as long as sensor is triggered
  • Sensing Range: Adjustable range from 6-20cm
  • Operating Temperature: 20°~55° C
  • Dimensions: 70 x 115 x 29mm
  • Weight: 85g

12 Months

We Offer 12 Months for this product
