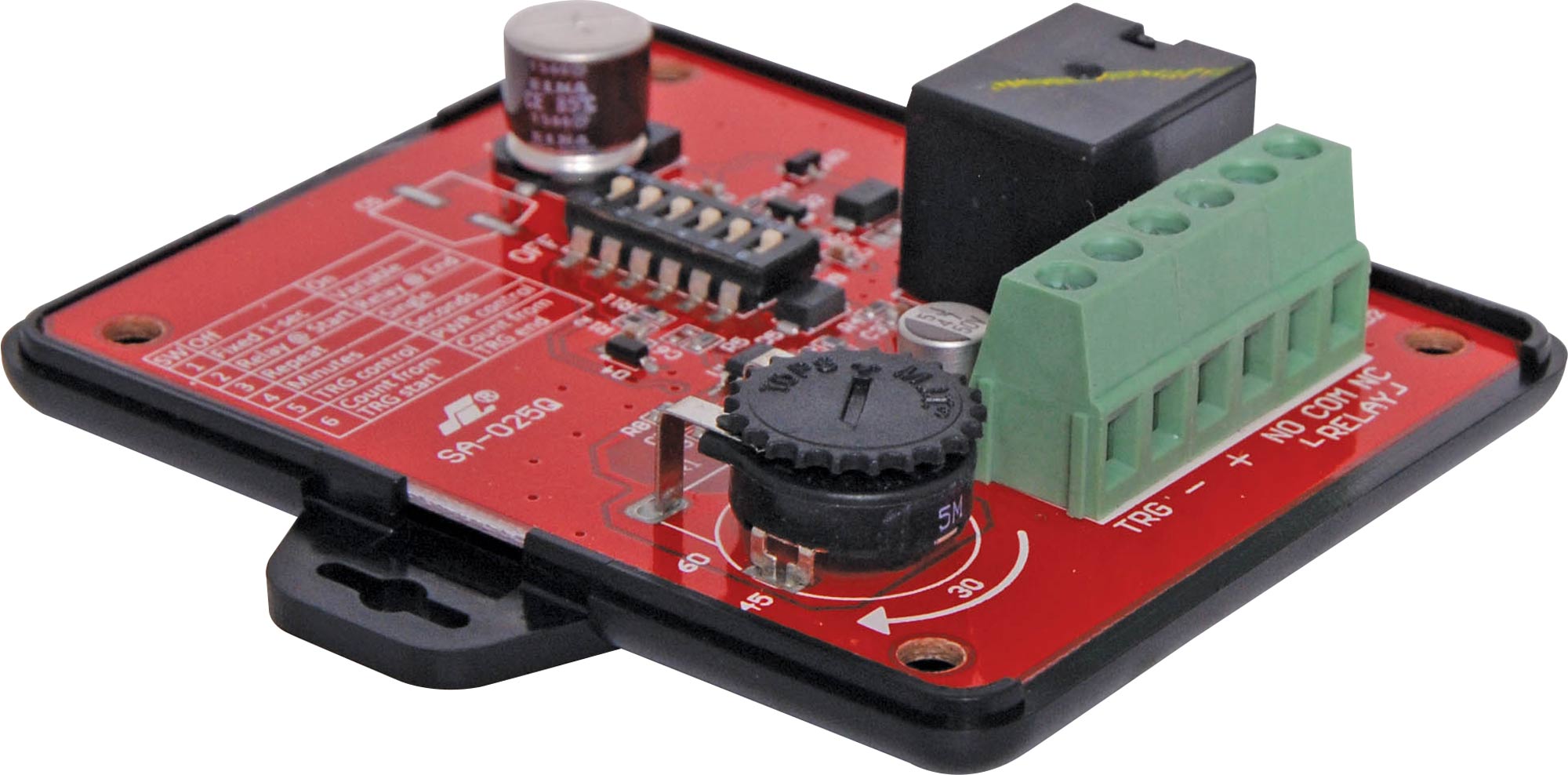

SA-025Q 12V / 24V 8A Programmable Timer

Manufacturer: Enforcer
Be the first to review this product
Enforcer SA-025Q. There are numerous situations that require the use of a timer. This timer offers several modes of operation which the user can easily program. It is suitable for use with either 12 or 24V.
SKU: S0101
$45.41
Per ea
QuantityPrice
ea$45.41
2+$40.91
4+$35.00

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Enforcer SA-025Q. There are numerous situations that require the use of a timer. This timer offers several modes of operation which the user can easily program. It is suitable for use with either 12 or 24V. Its small physical size makes it ideal for mounting into security cabinets, alarm panels, access control systems, fire alarms etc. Relay contacts rated at 8A, 120VAC/24VDC. Low 1mA power consumption on standby or 50mA energised. Includes enclosure.

Features

  • Timer can be set from 1 second to 60 minutes
  • Can be triggered by positive voltage (+DC), or closure or opening of dry contact
  • Relay can be programmed to activate at the start or at the end of the timing cycle
  • Relay can also be set to activate for one second at the end of the timing cycle
  • Programmable for pulse (flash) activation
  • Built-in reset function to manually reset timing cycle
  • Form C relay, contacts rated 8A@120VAC/24VDC
  • LED indicates relay is energized
  • 12VDC/24VDC Operation (auto sensing)
  • Current: 1mA (standby), 50mA (active)
  • Board measures 73x63 mm
  • Functions programmed via DIP switches – no jumpers to cut

12 Months

We Offer 12 Months for this product
