SA-026Q 12V / 24V Programmable PCB Mini Timer

Manufacturer: Enforcer
SKU: S0090

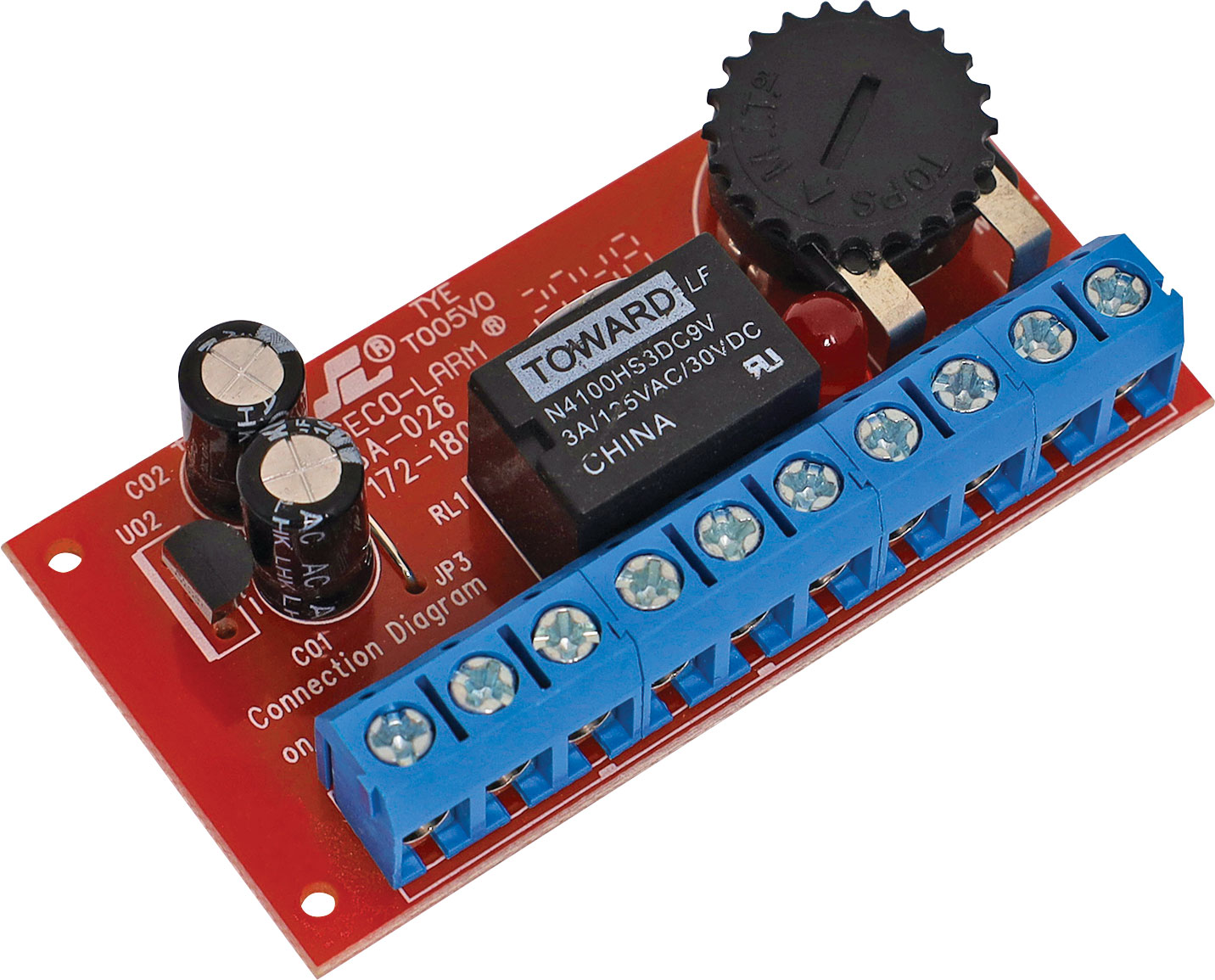

The SA-026Q low voltage miniature timer module operates on 12-24V AC or DC. It may be used to modify the activation time of a momentary contact switch for 1-180 seconds, adjustable via onboard variable resistor. May be triggered by a NC or NO contact.
$44.09

All Prices Shown are (ex GST)
Bulk Pricing
ea $44.09
2+ $42.05
4+ $39.77
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

The SA-026Q low voltage miniature timer module operates on 12-24V AC or DC. It may be used to modify the activation time of a momentary contact switch for 1-180 seconds, adjustable via onboard variable resistor. May be triggered by a NC or NO contact. Switched power output, plus voltage free changeover relay contacts.

Specifications:

Rating: 3A 24VDC

  • Timer duration: 1-180s
  • Trigger: NC or NO
  • Input: 12-24V AC/DC
  • Connections: Screw terminals
  • Dimensions: 30 x 55 x 16mm

Warranty & Returns

12 Months

We Offer 12 Months for this product
