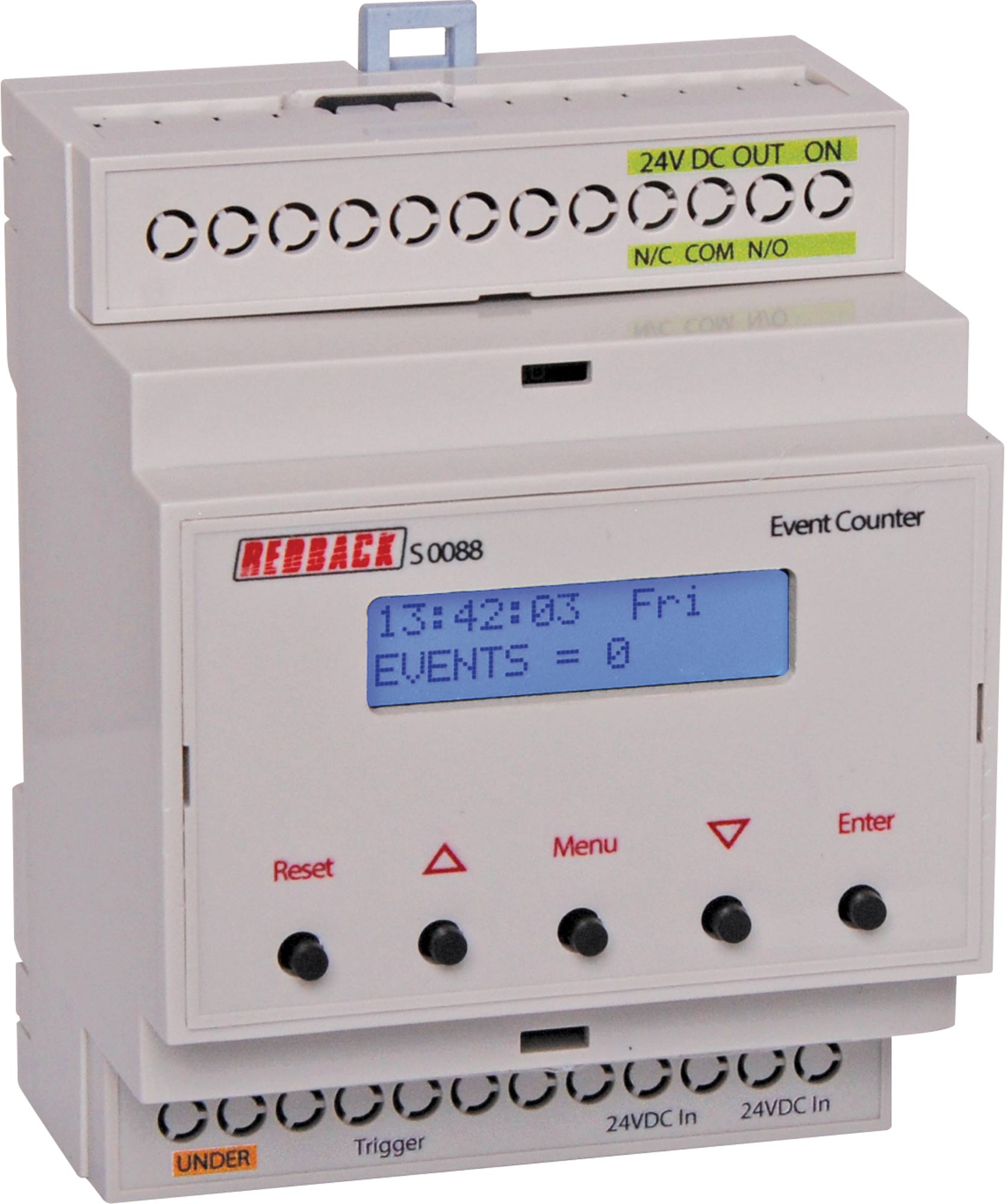

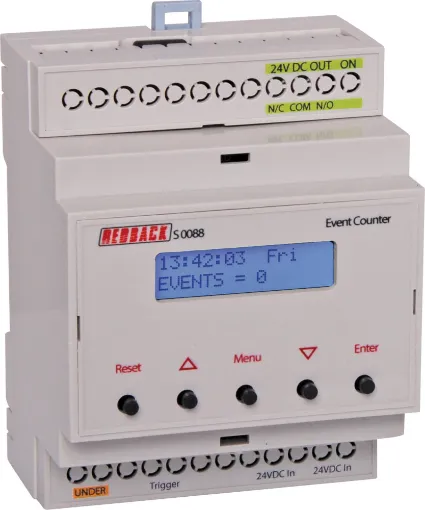

DIN Rail Event Counter

Manufacturer: Redback
Be the first to review this product
Allows you to count the number of instances of a pair of closing contacts. Event times and dates are recorded to the internal Micro SD card for easy review.
SKU: S0088
$180.91
Per ea
QuantityPrice
ea$180.91

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Allows you to count and log the number of events triggered by a pair of closing contacts. Event times and dates are recorded to the internal Micro SD card for easy review. A 24V DC output is provided (NC or NO output) to run external systems such as a buzzer or light. This can be set to activate for every event or after a set amount of events. Output also features an adjustable ‘ON’ time delay which can be set between 0s and 10s (100ms intervals). Powered by included 24V DC plugpack.

Features:

  • Events triggered by closing contact
  • Event time and date recorded
  • Power ON time and date recorded
  • 24V DC switched output
  • Adjustable output ON Time delay
  • Adjustable output
  • Event count
  • Battery Backup (Time only)
  • Micro SD card supplied
  • CR2032 backup battery supplied
  • 24V DC operation
  • Supplied with 24V DC plugpack

12 Months

We Offer 12 Months for this product
