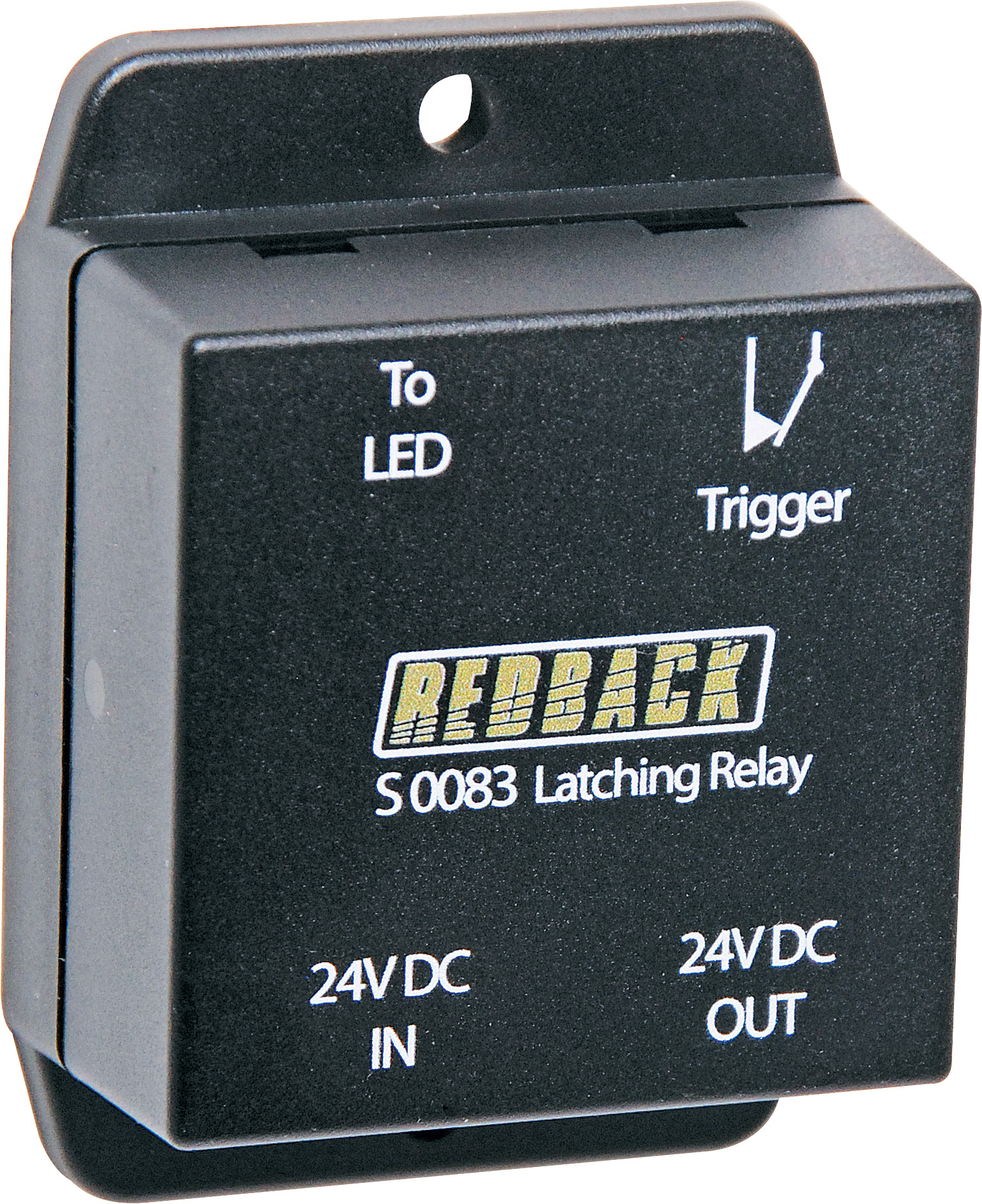

24V DC Latching Relay Module

This latching relay box offers a compact solution to switching high current circuitry on and off using a low current momentary switch. Simply wire your closing contacts into the trigger input, provide 24V DC in via screw terminals and connect your load to the 24V DC out terminals. For indication, terminals are also provided for an LED. Utilises the S 4160C relay (12V coil, 10A rated).

Size: 51W x 70H x 27Dmm (inc. flanges).

Please Note: To operate the unit simply activate the trigger to turn ON the output and activate the trigger again to turn OFF the output.

100% developed, designed & assembled in Australia.
