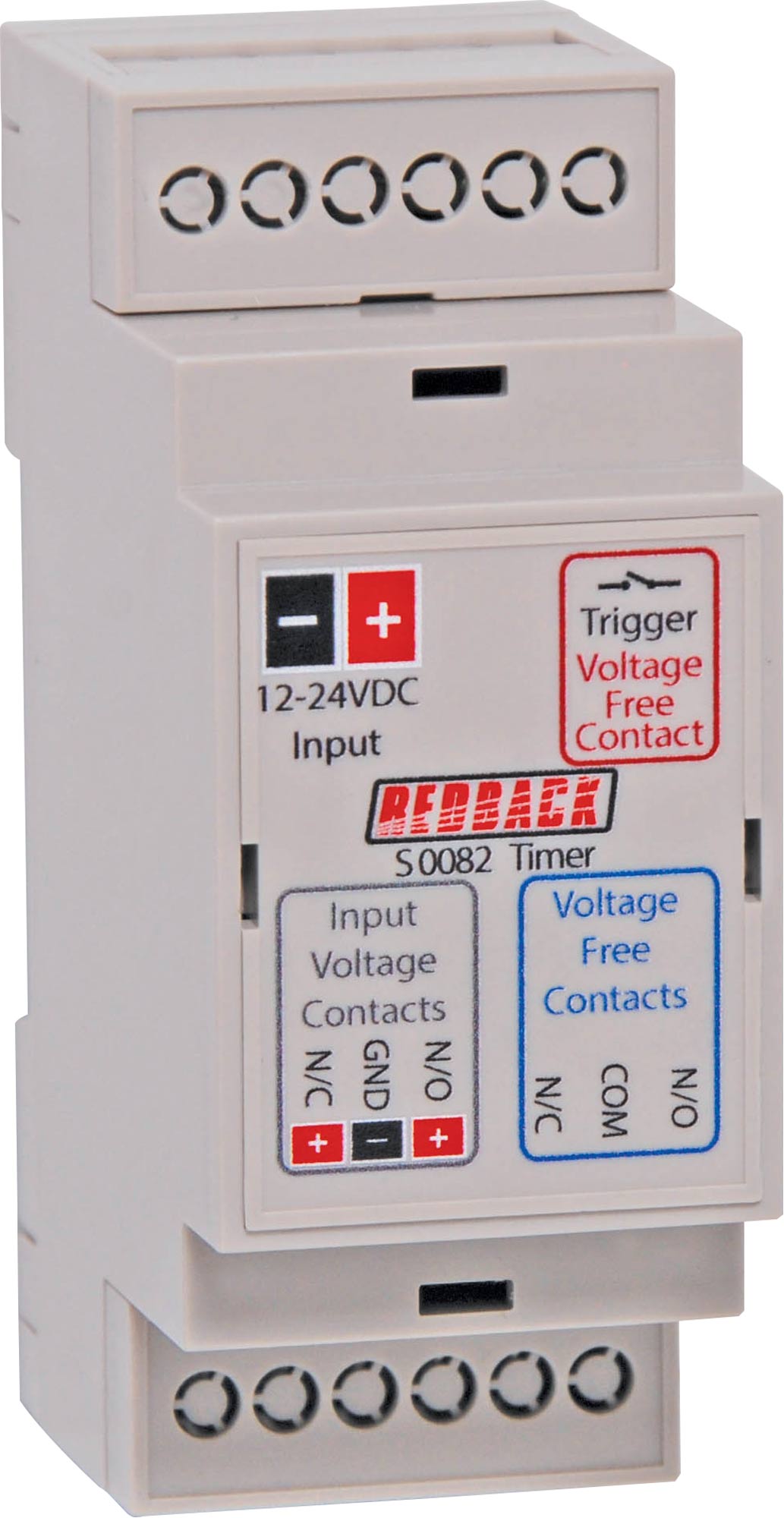

12V-24V DIN Rail Timer With Delay

This compact 12-24VDC timer has a multitude of operating modes. The timing is set via an internal trimpot. DIP switches select the timing range (0-60s, 0-60m or 0-24hrs). All timing events are activated with a closing set of voltage free contacts. There are numerous options for how/when the timer starts:

1. Contact closure, timer runs until timeout duration.
2. Contact closes, relay operates instantly, timer starts at release of contact opening. Times for set duration.
3. Contact closes, timer toggles ON or OFF for timer duration until contact opens.
4. Contact closure changes state of relay ie: relay toggles ON or OFF with every contact closure. No timing involved.

Housed in a standard DIN rail mount enclosure it is suited for use in alarm systems, access control, lighting and airconditioning systems. The relay output consists of one set of voltage free contacts and a set of active contacts, the same as the input voltage.

Size: 90W x 36D x 57Hmm.
