New
RoHS

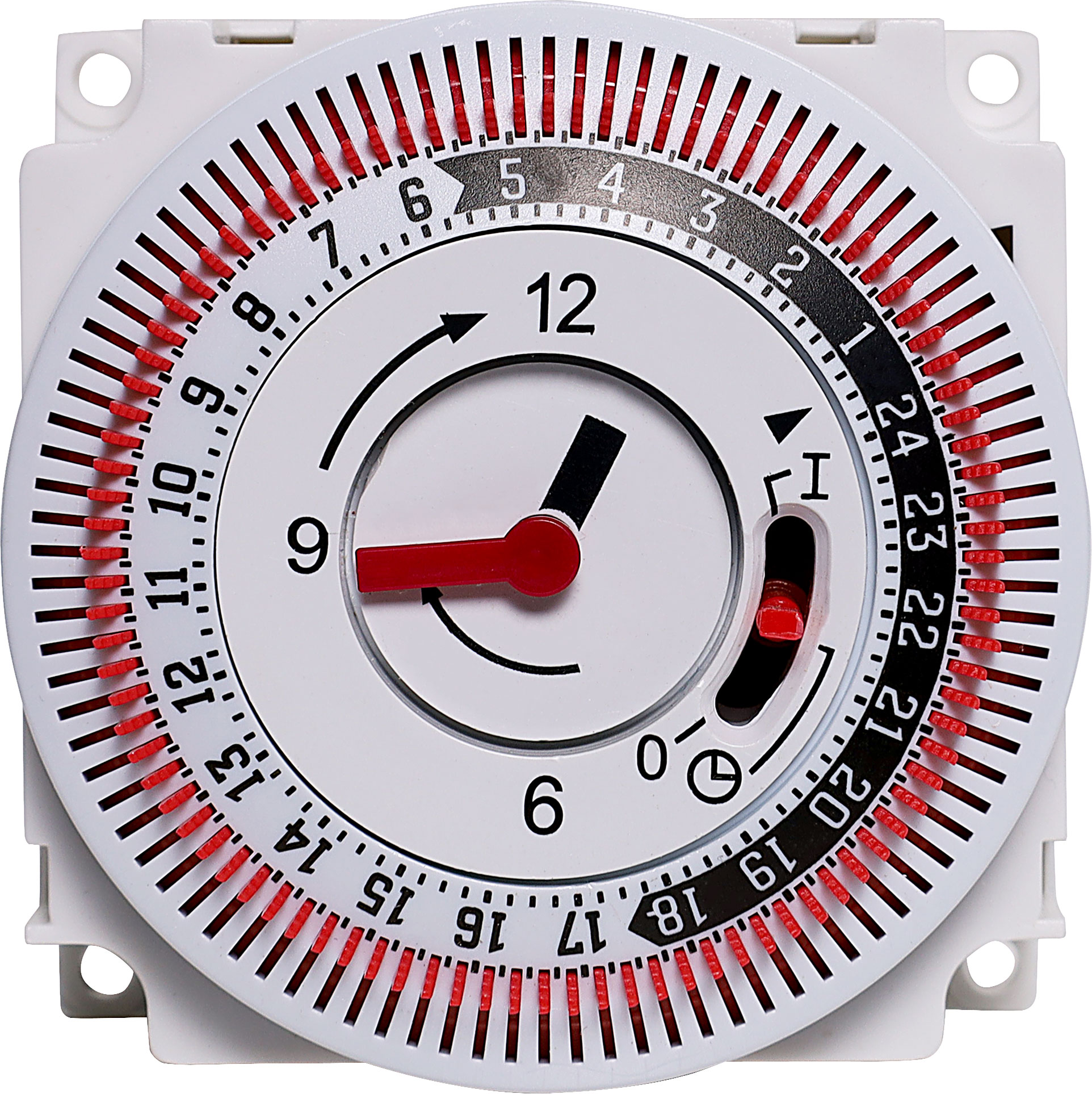

16A 240VAC NC Mains Timer Switch

SKU: S0044A
24 hour 240V mains operated ON/OFF timer. ON periods are set manually with the 15 minute increment tabs. Timer may be manually selected ON or OFF regardless of set time periods. Not suitable for use in direct sunlight. 6.3mm spade connections.
$13.59

All Prices Shown are (ex GST)
Bulk Pricing
ea $13.59
4+ $12.23
10+ $10.86
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

24 hour 240V mains operated ON/OFF timer. ON periods are set manually with the 15 minute increment tabs. Timer may be manually selected ON or OFF regardless of set time periods. Not suitable for use in direct sunlight. 6.3mm spade connections.

When connecting to mains power this must be installed by a licensed electrician.
To be installed in accordance to the latest issue of AS/NZ 3000 and by a licensed electrician as ruled in the state of installation.


Specifications:

Rated voltage: 200-240V 50Hz 16A

  • Quartz motor voltage: 24V 60Hz
  • IP: 20
  • Min setting time: 15min
  • Program per day: 48 ON/OFF
  • Dimensions: 60 x 60 x 35mm
  • Weight: 75g
  • Switch Life: >5000 times
  • Rated functioning temperature: T55

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
