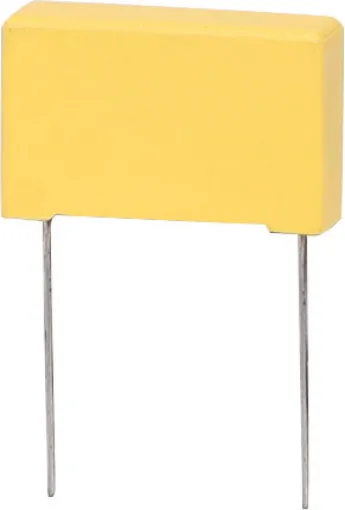

0.1uf X2 PCB Mains Suppression Capacitor

Be the first to review this product
X2 suppression capacitors are designed for direct connection across the 240V mains supply between current carrying conductors.
SKU: R3122A
$1.32
Per ea
QuantityPrice
ea$1.32
10+$0.95
25+$0.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

X2 suppression capacitors are designed for direct connection across the 240V mains supply between current carrying conductors.

Please Note: The colour has been updated from grey to yellow, however they work the same. Some stores may still have the grey colour capacitors in stock.

Specifications

Value: 0.1µF

  • Tolerance: ±10%
  • Pitch: 15.0mm
  • Voltage: 275V AC
  • Temperature Range: -40°C to +110°C
  • Approvals: ENEC, VDE, TUV, CE, UL, CUL
  • Dimensions: 18L x 12H x 6D mm
  • Leads: 20mm Ø0.8mm
  • Pitch: 15mm

Note: All quantities are supplied loose

12 Months

We Offer 12 Months for this product
