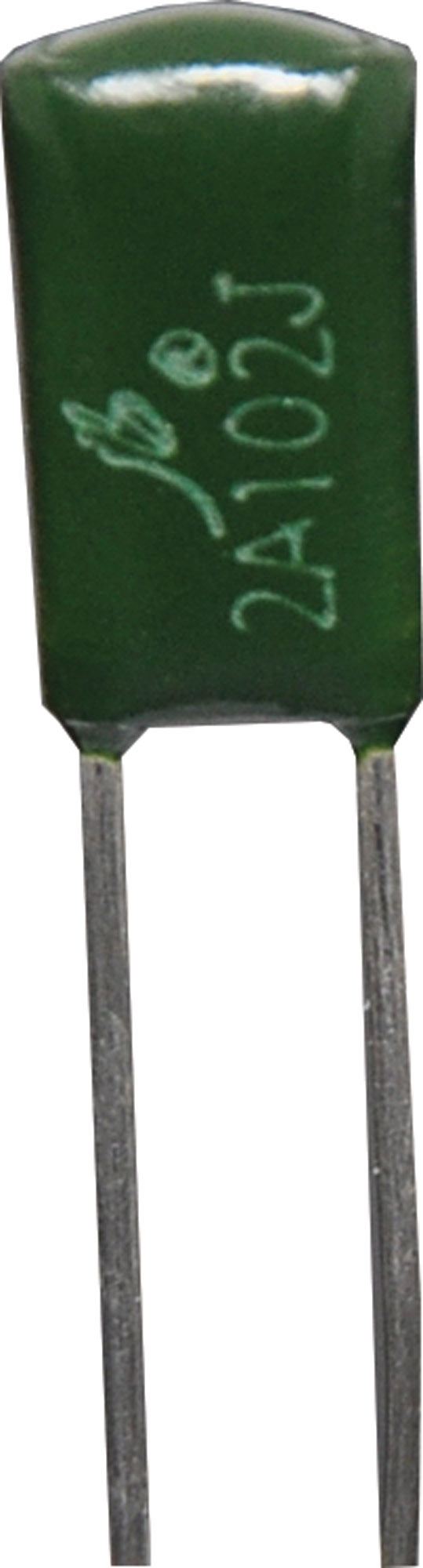

0.0022uF 100V 4mm Greencap Capacitor

Be the first to review this product
These 'Greencaps' are Mylar Polyester, not Metallised Polyester capacitors. FEATURES: - Inductive welded construction epoxy dip coated. - Good reputation in use with consumer & industrial electronics. - Optimum for automatic insertion due to their sm
SKU: R2704B
$0.32
Per EACH
Quantity Price
EACH $0.32
10+ $0.23
100+ $0.18

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Mylar Polyester
Non-Inductive
High Temperature Stability
Ideal for coupling and bypass applications

Note: All quantities are supplied loose.

Features

  • Inductive welded construction
  • Epoxy dip coated for superior heat, humidity and solvent resistance.
  • Good reputation in use with consumer & industrial electronics.
  • Optimum for automatic insertion due to their small size and light weight.

Specifications

Operating Temperature: -40C~ +85C

  • Rated Voltage: 100V, 250V, 400V, 630V, 1000V.DC
  • Capacitance Range: 0.001 ~ 0.47microF
  • Capacitance Tolerance: +/-5%, 10%, 20%
  • Insulation Resistance: 0.1microF >=30,000Mohm min, >0.1microF >15000Mohm
  • Dissipation Factor: <=0.1 (at 1KHz)
  • Dielectric Strength: 200% of rated voltage for 5 sec.

12 Months

We Offer 12 Months for this product
