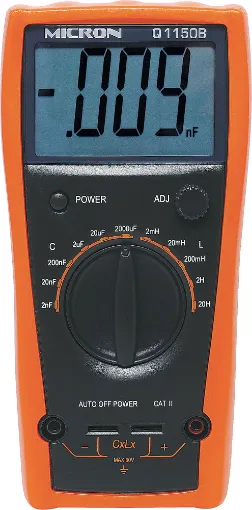

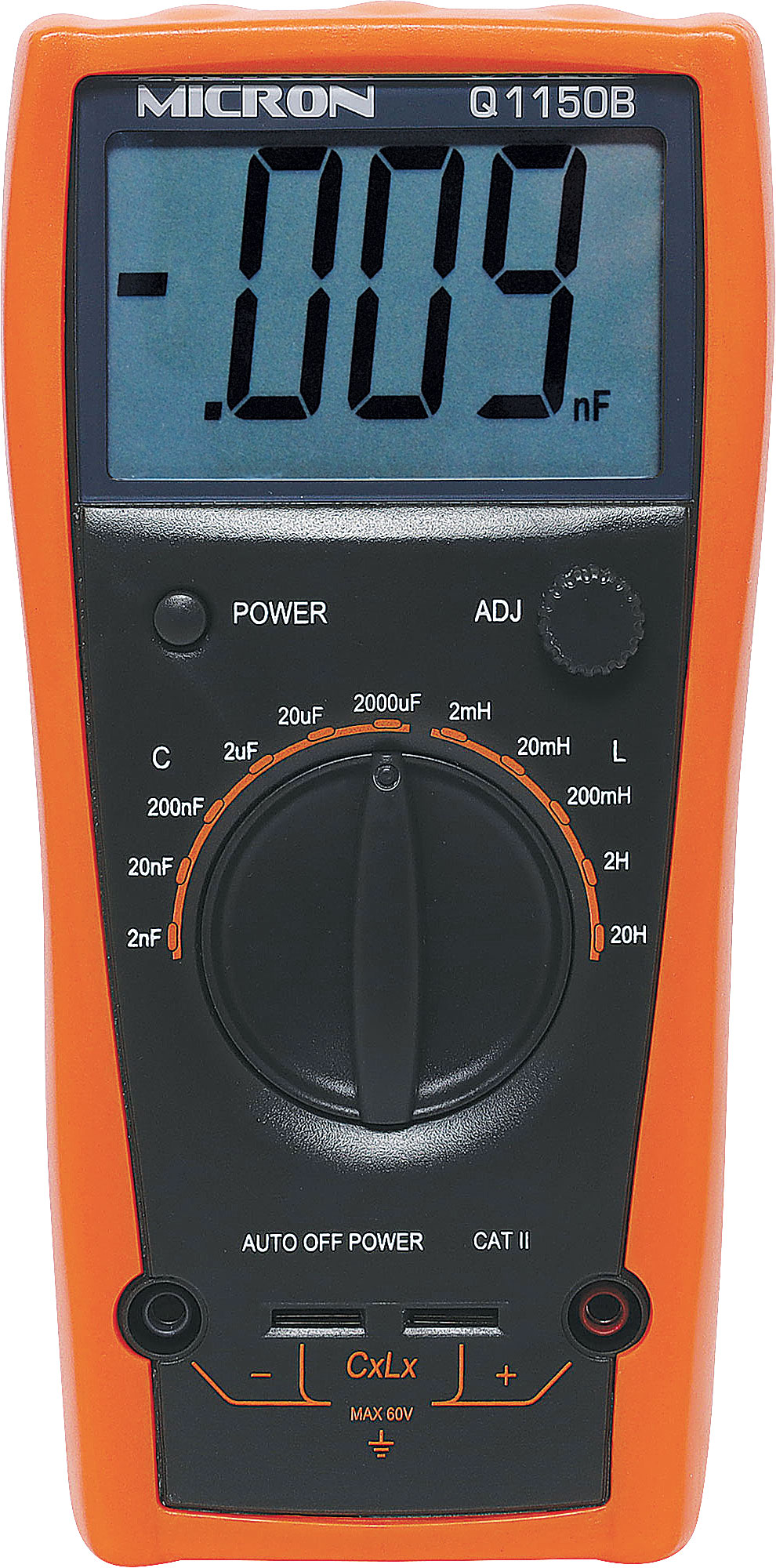

Digital LC Meter

Manufacturer: Micron
Be the first to review this product
This dedicated LC meter offers wider inductance and capacitance ranges than other "do-it-all" meters available on the market.
SKU: Q1150B
$59.55
Per ea
QuantityPrice
ea$59.55
2+$54.50
4+$50.23

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This dedicated LC meter offers wider inductance and capacitance ranges than other ‘do-it-all’ meters available on the market. A workbench essential for developing audio crossover circuits, switch mode power supplies and RF circuits. This meter includes a large 30mm, 3.5 digit display and is capable of reading capacitance from 2nF to 1000µF on polarised (electrolytic) and non-polarised capacitors, and inductance from 2mH to 20H. Supplied with high quality silicon rubber croc clip test probe leads, rubber holster.

Features

  • High accuracy inductance & capacitance ranges
  • Jumbo 1999 count readout
  • Battery included
  • Supplied with quality silicon rubber test leads, rubber holster.

Specifications

Inductance: 2mH, 20mH, 200mH, 2H, 20H (±2.0%+5d)

  • Capacitance: 2nF, 20nF, 200nF, 2µF, 20µF, 2000µF (±2.5%+10d)
  • Display: 3.5 digit LCD, 1999 count
  • Protection: 315mA M205 fused on L/C input
  • Dimensions: ≈ 97W x 35D x 190H mm

2 Years

We Offer 2 Years for this product
