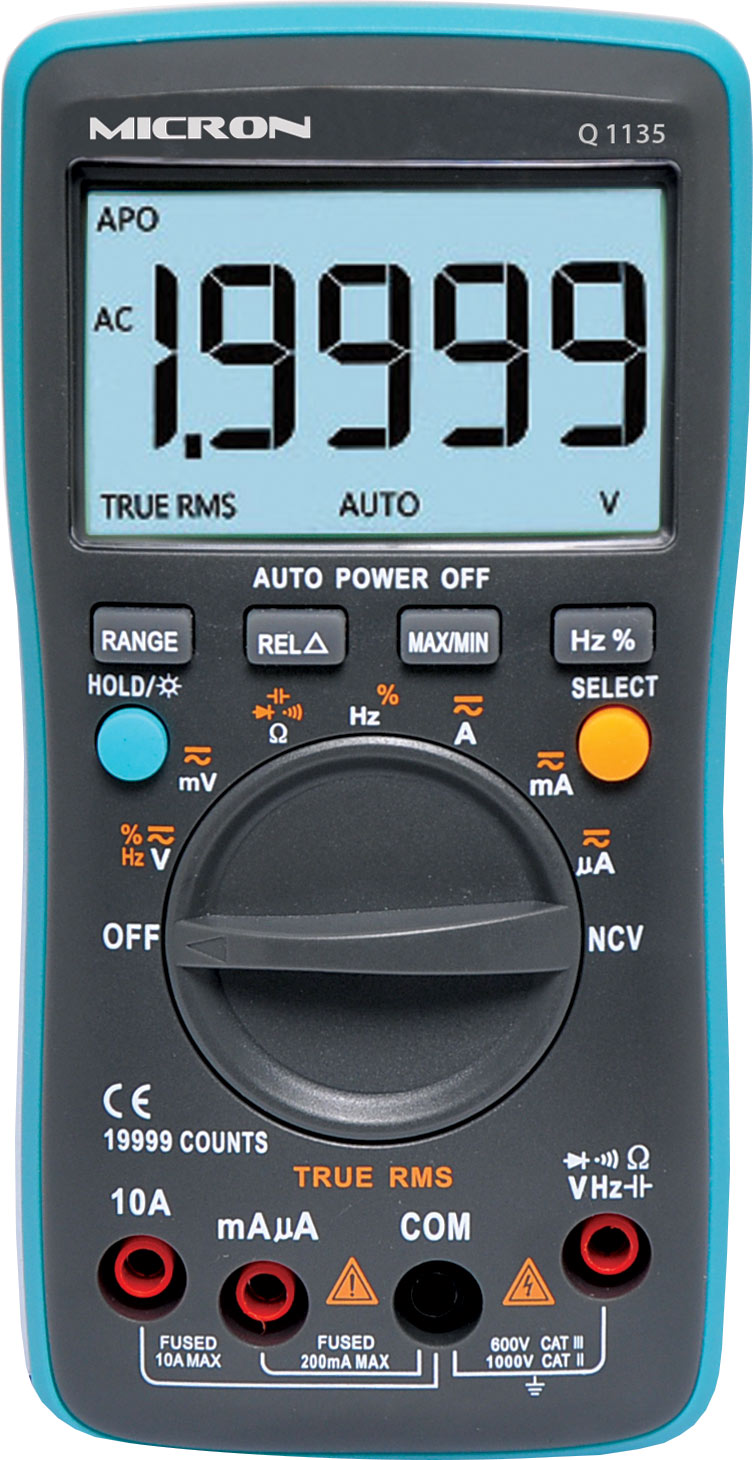

True RMS Autoranging Digital Multimeter

Manufacturer: Micron
This professional digital multimeter offers extended resolution to 4 digits!
SKU: Q1135
$80.91
Per ea
QuantityPrice
ea$80.91
2+$72.73
4+$64.77

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The largest screen in our range with 19999 count! This meter offers everything the serious enthusiast or trades person could need with auto ranging true RMS measurement, min/max & relative modes; frequency, duty cycle and non-contact voltage detection. Plus the standard AC/DC modes commonly found on all multimeters. The larger display offers extended resolution for measurements. Supplied with test probes and carry pouch.

Features

  • Large easy read 19999 count screen
  • Auto ranging
  • True RMS measurement
  • Data hold, min/max and relative modes
  • Continuity buzzer
  • Diode test
  • Non contact AC voltage detection
  • 2x AA battery included

Specifications

Voltage DC: 19.999mV, 199.99mV, 1.9999V, 19.999V, 199.99V, 1000V (±0.05%+3d)

  • Voltage AC: 19.999mV, 199.99mV, 1.9999V, 19.999V, 199.99V, 750V (±0.3%+3d)
  • Current DC: 199.99µA, 1999.9µA, 19.999mA, 199.99mA, 1.9999A, 10.000A (±0.5%+3d)
  • Current AC: 199.99µA, 1999.9µA, 19.999mA, 199.99mA, 1.9999A, 10.000A (±0.8%+3d)
  • Capacitance: 9.999nF, 99.99nF, 999.9nF, 9.999µF, 99.99µF, 999.9µF, 9.999mF (±2%+5d)
  • Ohms: 199.99Ω, 1.9999kΩ, 19.999kΩ, 199.99kΩ, 1.9999MΩ, 19.999MΩ, 199.99MΩ (±1%+3d)
  • Continuity: 40Ω threshold, audible tone
  • Diode test: Test current 5mA max
  • Duty cycle: 1-99% @ 250V RMS max (±0.1%+2d)
  • Frequency: 99.99Hz - 9.999MHz (±0.1%+2d)
  • Display: 4.75 digit, 19999 count, backlit
  • Protection: 200mA M205 fused, 10A input fused
  • Dimensions: 81W x 39D x 161H mm
