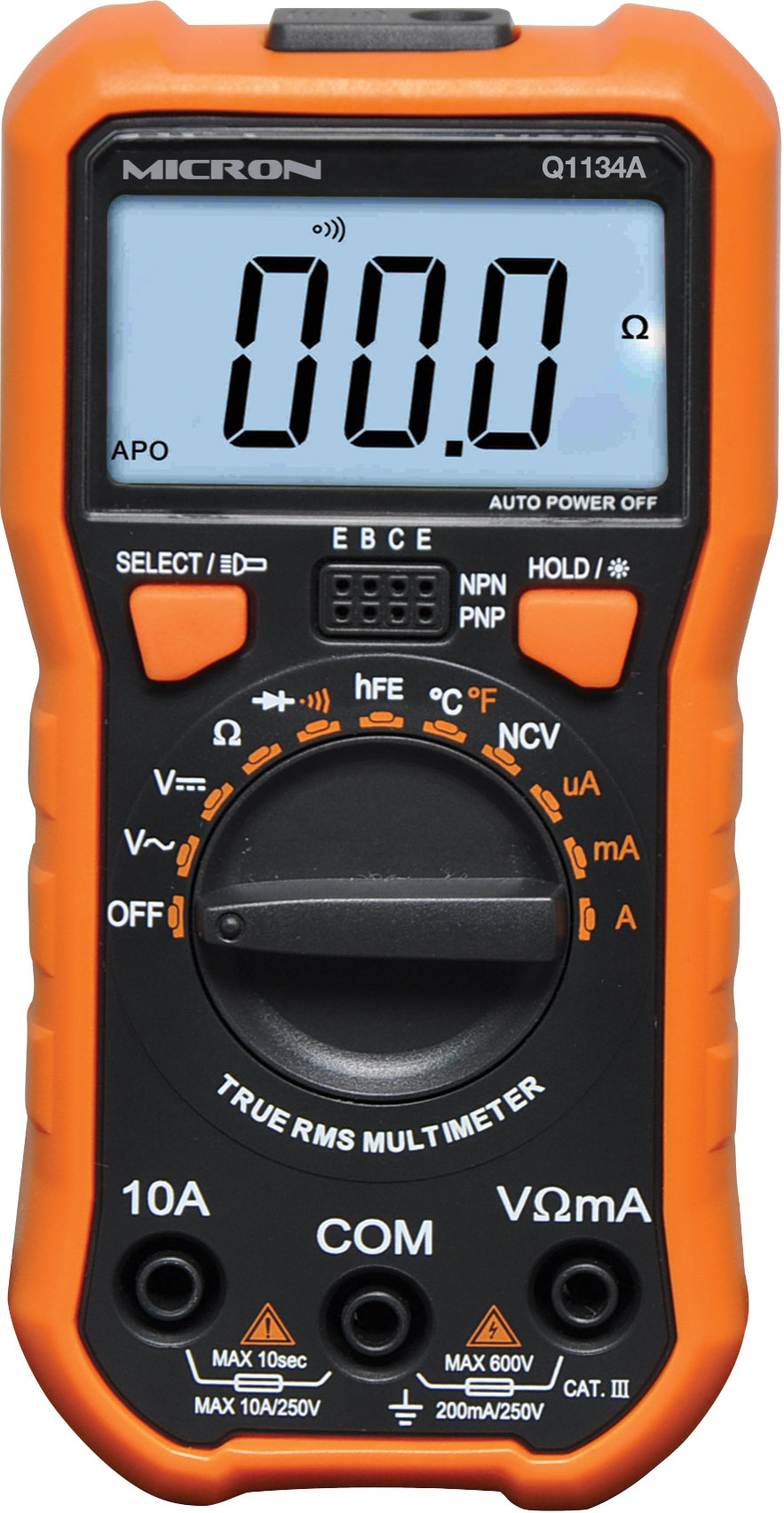

Autoranging True RMS Digital Multimeter

Manufacturer: Micron
Be the first to review this product
An affordable, versatile multimeter designed for the electronics enthusiast or handyman.
SKU: Q1134A
$37.73
Per ea
QuantityPrice
ea$37.73
2+$34.09
5+$31.36

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This Auto-ranging True RMS Digital Multimeter is an affordable, versatile meter designed for the electronics enthusiast or handyman. Auto-ranging design makes it easy to use single handed when testing - no need to switch ranges all the time! It includes a non-contact voltage detector for identification of live wires. Includes test leads, holster & temperature probe.

Features

  • New type holster, streamlined design, comfortable handle
  • Large LCD display makes reading clear
  • Strong antimagnetic and anti- interferential performance
  • Auto power off when there is no measurement in 15 minutes
  • Full function protection
  • Unit symbol display, easy to read
  • True RMS, non- contact voltage detect (NCV) and data hold function
  • Lighting function, backlight display.

Specifications

Technical Data

  • DCV: 200mV/2V/20V/200V/600V, ±(0.5%+4)
  • ACV: 2V/20V/200V/600V, ±(0.8%+6)
  • DCA: 200uA/2000uA/20mA/200mA/2A/10A, ±(1.0%+5)
  • ACA: 200uA/2000uA/20mA/200mA/2A/10A, ±(1.5%+5)
  • Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ, ±(0.8%+1)
  • Temperature: -40°C~1000°C, ±(1.0%+5)
  • 0°F~1832°F, ±(1.0%+5)

Special function

  • True RMS: Yes
  • NCV: Yes
  • Data hold: Yes
  • Function protection: Yes
  • Torch function: Yes
  • Backlight display: Yes
  • Diode test: 0V~2V, it displays “OL” if over 2V
  • hFE test: 0~2000
  • Continuity alarm: Less than 50Ω, it displays “OL” if over 200Ω
  • Low battery indicator: Approx. less than 2.4 V
  • Auto power off: About 15 minutes
  • Input impedance: 10MΩ
  • Sampling rate: 3 times/s
  • AC frequency response: 40Hz-2kHz
  • Operation method: Auto range
  • Max. display: 2000
  • LCD size: 61x28mm
  • Battery: 3V AAA×2
  • Power consumption: Quiescent current about 2mA

General

  • Colour: Orange and Grey
  • Weight: 195g (including battery)
  • Dimensions: 140×72×37mm
  • Accessories: Test leads, battery, manual, TP01 temperature probe

12 Months

We Offer 12 Months for this product
