New
RoHS

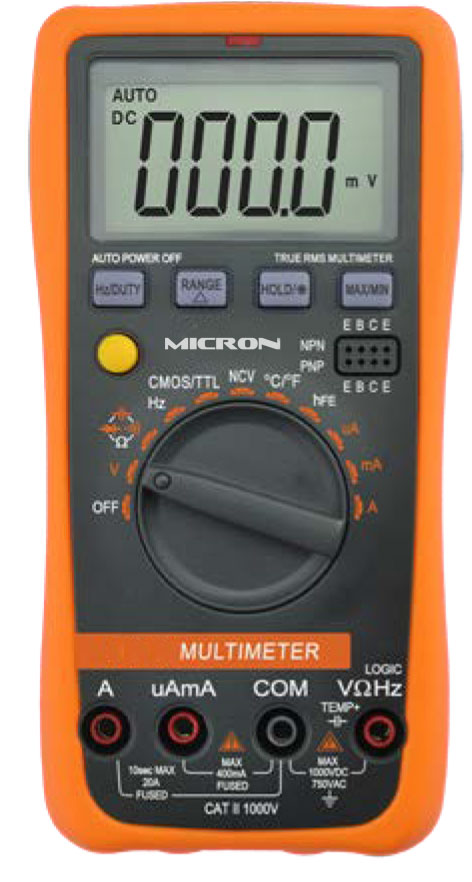

Autoranging Digital Multimeter

Manufacturer: Micron
Be the first to review this product
Featuring large, easy to read 20mm digits, this quality mini auto ranging digital multimeter is ideal for mobile technicians, installers or enthusiasts who want excellent performance and functions at an affordable price.
SKU: Q1133B
$62.73
Per ea
QuantityPrice
ea$62.73
2+$56.59
5+$50.23

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Featuring large, easy to read digits, this quality auto ranging digital multimeter is ideal for mobile technicians, installers or enthusiasts who want excellent performance and functions at an affordable price. Supplied with test leads, rubber holster and temperature probe.

Note: Batteries are included.

Features:

  • Streamlined design, comfortable handle
  • Large LCD display makes reading clear
  • Strong antimagnetic and anti-interferential performance
  • Auto power off when there is no measurement in 15 minutes
  • Full function protection
  • Unit symbol display, easy to read
  • CMOS, TTL logic test; True RMS, NCV, MAX/MIN tests
  • Relative value measurement, frequency/ duty cycle test, data hold

Specifications

DCV: 600mV/6V/60V/600V/1000V (±0.5%+5)

  • ACV: 6V/60V/600V/750V (±0.8%+10)
  • DCA: 600uA/6000uA/60mA/600mA/6A/20A (±1.0%+5)
  • ACA: 600uA/6000uA/60mA/600mA/6A/20A (±1.5%+10)
  • Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ (±0.8%+2)
  • Capacitance: 6nF/600nF/6µF/600µF/6mF/60mF (±2.5%+5)
  • Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz (±0.5%+4)
  • Temperature: -40°C to 1000°C (±1.0%+5)
  • True RMS test: Yes
  • NCV Test: Yes
  • Max/Min test: Yes
  • Logic Function: Yes
  • Diode and hFE test: Yes
  • Continuity alarm: Less then 50Ω
  • Low Battery Indication: Approx. Less than 2.4V
  • Duty cycle test: Yes
  • Data hold: Yes
  • Backlight display: Yes
  • Auto power off: About 15 min
  • Function protection: Yes
  • Input impedance: 10MΩ
  • Sampling rate: 3times/s
  • AC frequency response: 40-400Hz
  • Operation Method: Auto or manual range
  • Max Display: 6000
  • LCD size: 54 x 30mm
  • Battery: 3V (1.5V AAA x 2)
  • Power consumpltion: Quiescent current approx. 2mA
  • Meter Colour: Orange hoister and grey device
  • Meter weight: 290g (including battery)
  • Dimensions: 170 x 86 x 35mm
  • Standard accessory: Test leads, battery, manual, temperature probe

2 Years

We Offer 2 Years for this product
