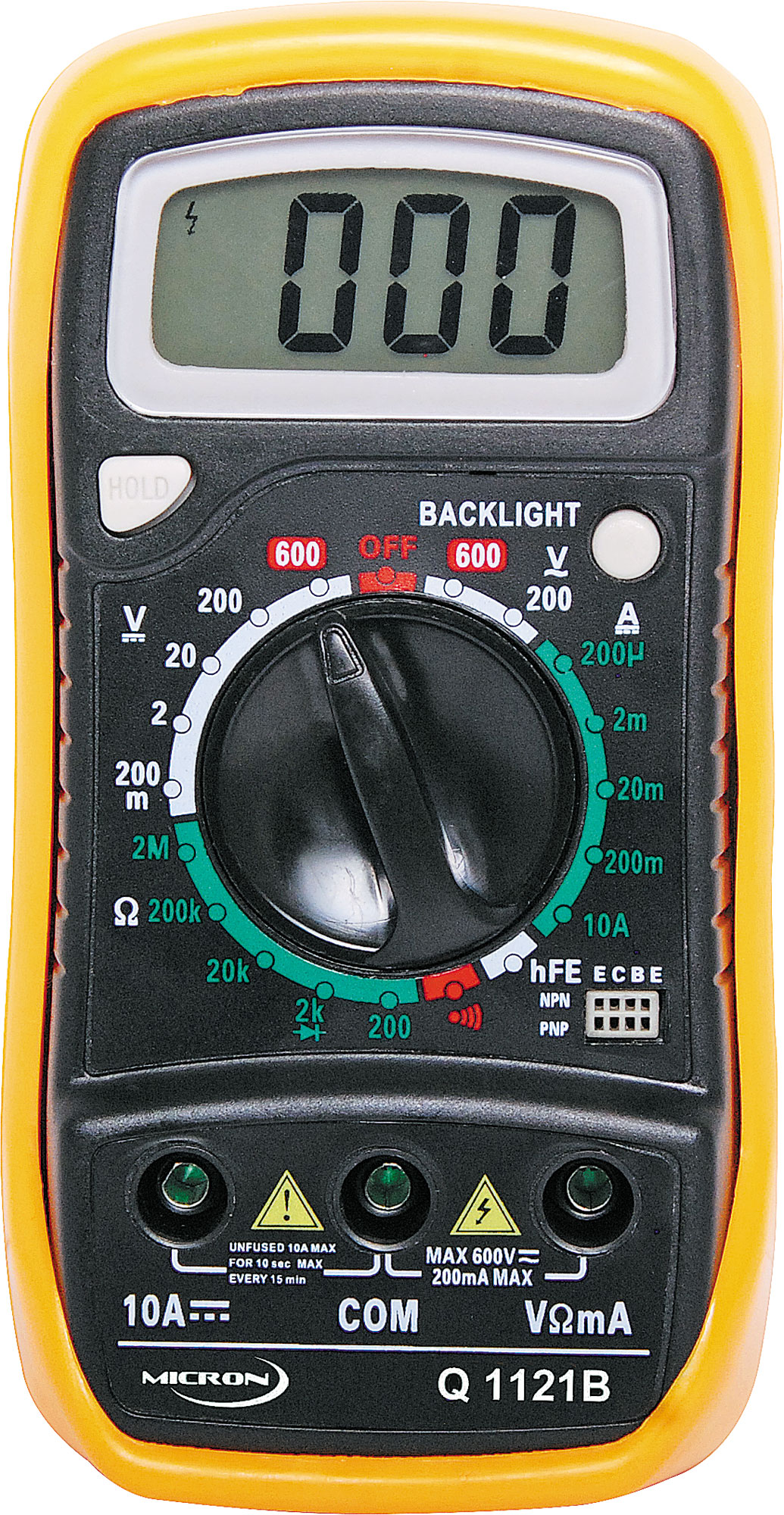

19 Range Digital Multimeter With Data Hold

Manufacturer: Micron
Be the first to review this product
Amazing multimeter for the price! This 3.5 digit multimeter features 19 ranges, an in-built hFE transistor and diode test function.
SKU: Q1121B
$17.23
Per ea
QuantityPrice
ea$17.23
2+$15.68
5+$14.32

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This 3.5 digit digital multimeter features 19 ranges, an in-built hFE transistor and diode test function. Backlit screen and data hold functions are great for measuring in the field. Perfect for the cash strapped student or budding enthusiast. Supplied with test leads & rubber holster.

Includes a 9V battery

Features:

  • Large display with backlight
  • Low battery indicator
  • Data hold function
  • Transistor tester
  • Current measurement
  • Voltage measurement
  • Diode tester
  • 1x 9V Battery included
  • Cat II

Specifications

Voltage DC: 200mV, 2V, 20V, 200V, 600V (±0.8%+2d)

  • Voltage AC: 200V, 600V (±1.2%+10d)
  • Current DC: 2mA, 20mA, 200mA, 10A (±1.5%+2d)
  • Resistance: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ (±1%+8d)
  • Diode test: Included
  • Transistor test: Measures hFE, NPN/PNP identification
  • Display: 3.5 digit LCD, 1999 count
  • Protection: 500mA M205 fused on all inputs except 10A range
  • Dimensions: ≈ 72W x 40D x 145H mm

2 Years

We Offer 2 Years for this product
