9999 Count Autoranging Digital Multimeter

Manufacturer: Micron
SKU: Q1090
Professional digital multimeter with in-built AC mains detection. Featuring a striking easy to read reverse backlit screen and a massive 9999 count readout. Auto ranging with easy push button operation. Great price and build quality.
$86.32

All Prices Shown are (ex GST)

Bulk Pricing
ea $86.32
2+ $77.73
4+ $69.05
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

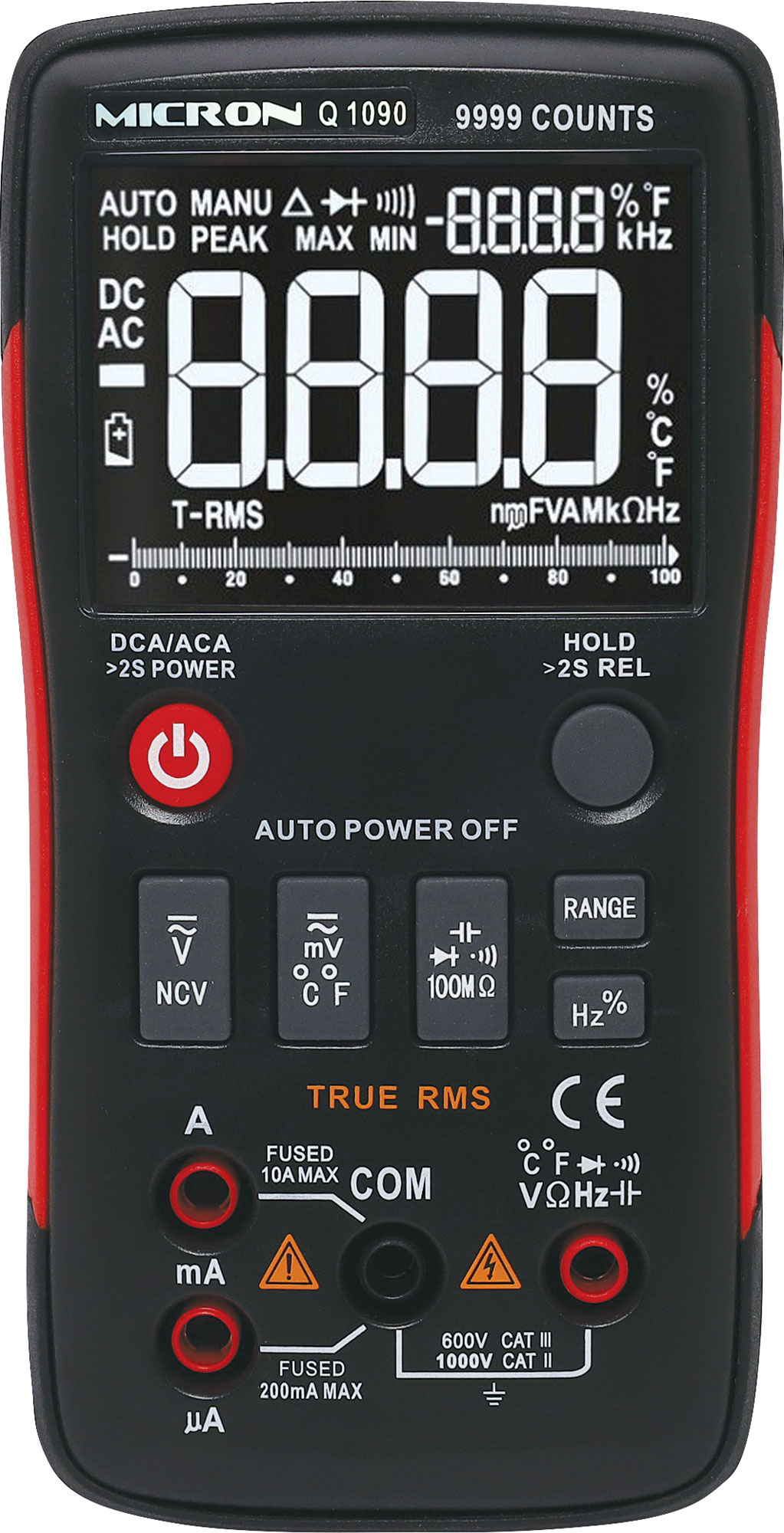

This compact auto-ranging true RMS meter features a striking reverse backlit screen, displaying large easy to read white digits. It offers simple push button operation and selection of measurement modes. The features packed into this meter is frankly amazing for its size and price. Includes test leads, temperature probe and carry pouch.

Features:

  • 9999 count reverse backlit readout
  • True RMS
  • Non contact voltage detection
  • Auto ranging with push button operation
  • Data hold and relative modes
  • Analog bar graph display
  • Cat III 600V, Cat II 1000V
  • Battery & carry pouch included

Specifications:

Voltage DC: 9.999mV, 99.99mV, 999.9mV, 9.999V, 99.99V, 999.9V (±0.5%+3d)

  • Voltage AC: 9.999mV, 99.99mV, 999.9mV, 9.999V, 99.99V, 750V (±1%+3d)
  • Current DC: 99.99mA, 9999µA, 999.9mA, 9.999A (±1%+3d)
  • Current AC: 99.99mA, 9999µA, 999.9mA, 9.999A (±1,2%+3d)
  • Capacitance: 9.999nF, 99.99nF, 999.9nF, 9.999µF, 99.99µF, 999.9µF, 9.999µF, 9.999mF (±2%+5d)
  • Ohms: 99.99Ω, 999.9Ω, 9.999kΩ, 99.99kΩ, 999.9kΩ, 9.999MΩ, 99.99MΩ (±1.5%+3d)
  • Continuity: 40Ω threshold, audible tone
  • Diode test: Test current 5mA max
  • Duty cycle: 1-99% @ 250V RMS max (±0.1%+2d)
  • Frequency: 99.99Hz - 5MHz (±0.1%+2d)
  • Temperature: -20˚C to 1000˚C (±2.5%+5d)
  • Display: 4 digit, 9999 count, backlit
  • Protection: 200mA M205 fused + 10A input fused
  • Dimensions: 74W x 34D x 146H mm

Warranty & Returns

2 Years

We Offer 2 Years for this product
