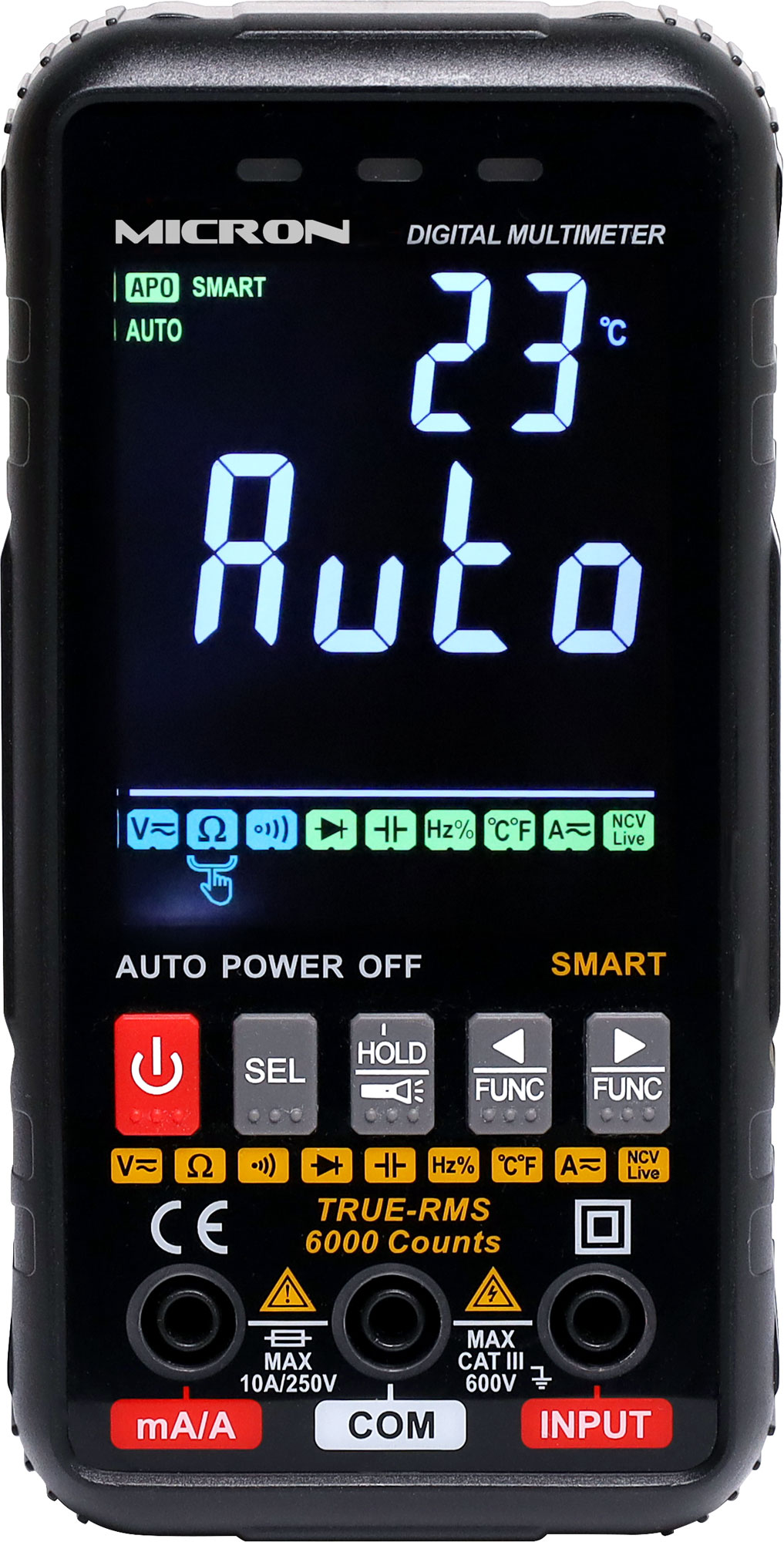

Autoranging True RMS Digital Multimeter with NCV

Manufacturer: Micron
Be the first to review this product
This compact true RMS digital multimeter provides in depth functionality for technicians troubleshooting devices and circuits.
SKU: Q1089
$71.82
Per ea
QuantityPrice
ea$71.82
2+$64.77
4+$57.50

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This compact true RMS digital multimeter provides in depth functionality for technicians troubleshooting devices and circuits. Its auto-ranging push button design simplifies operation and includes handy features such as test jack indicators to ensure you never plug a cable into the wrong socket. In addition it is capable of measuring, AC/DC voltage & current, resistance, continuity, capacitance, frequency/duty cycle, temperature and more!

A non-contact AC voltage detector is included providing a safe way to detect the presence of live AC wiring during testing. Cat III 600V protection rating with 5999 count easy read screen.

Includes probes, temperature sensor and carry case.

Kit Contents
1 x Multimeter
1x Test Lead Pair
1 x K-type probe
4 x 1.5V AAA Battery LR03
1 x Carry Case
1 x Manual

Features:

  • True RMS Auto Range.
  • Large easy to read reverse backlit screen.
  • Simple push button operation.
  • Large multifunction display.
  • Indicates correct connection jacks.



pic

pic


pic

pic

Specifications:

Voltage DC: 600mV, 6V, 60V, 600V (±0.5%+3d)

  • Voltage AC: 6V, 60V, 600V (±1%+3d)
  • Current DC: 600mA, 6A, 10A (±1,2%+3d)
  • Current AC: 600mA, 6A, 10A (±1,2%+3d)
  • Capacitance: 6nF, 60nF, 600nF, 6uF, 60uF, 600uF (±4%+5d), 6mF (±5%+5d), 60mF (±10%+10d)
  • Ohms: 600Ω, 6KΩ, 60KΩ, 600kΩ, 6MΩ (±1%+5d), 60MΩ (±2%+10d)
  • Continuity: 50Ω threshold, audible tone
  • Diode test: displays diode voltage drop, OC voltage 3.5V.
  • Duty cycle: 1-99% @ 250V RMS max (±0.1%+2d)
  • Frequency: 6Hz - 10MHz (±1%+3d)
  • Temperature: -40°C to 1000°C (±2°C). - K type probe only.
  • Display: 3 5/6 digit, 5999 count, backlit
  • Protection: 10A 250V ceramic fuse 5x20
  • Batteries: Requires 4 x 1.5V AAA alkaline batteries
  • Dimensions: 73W x 27D x 144H mm

2 Years

We Offer 2 Years for this product
