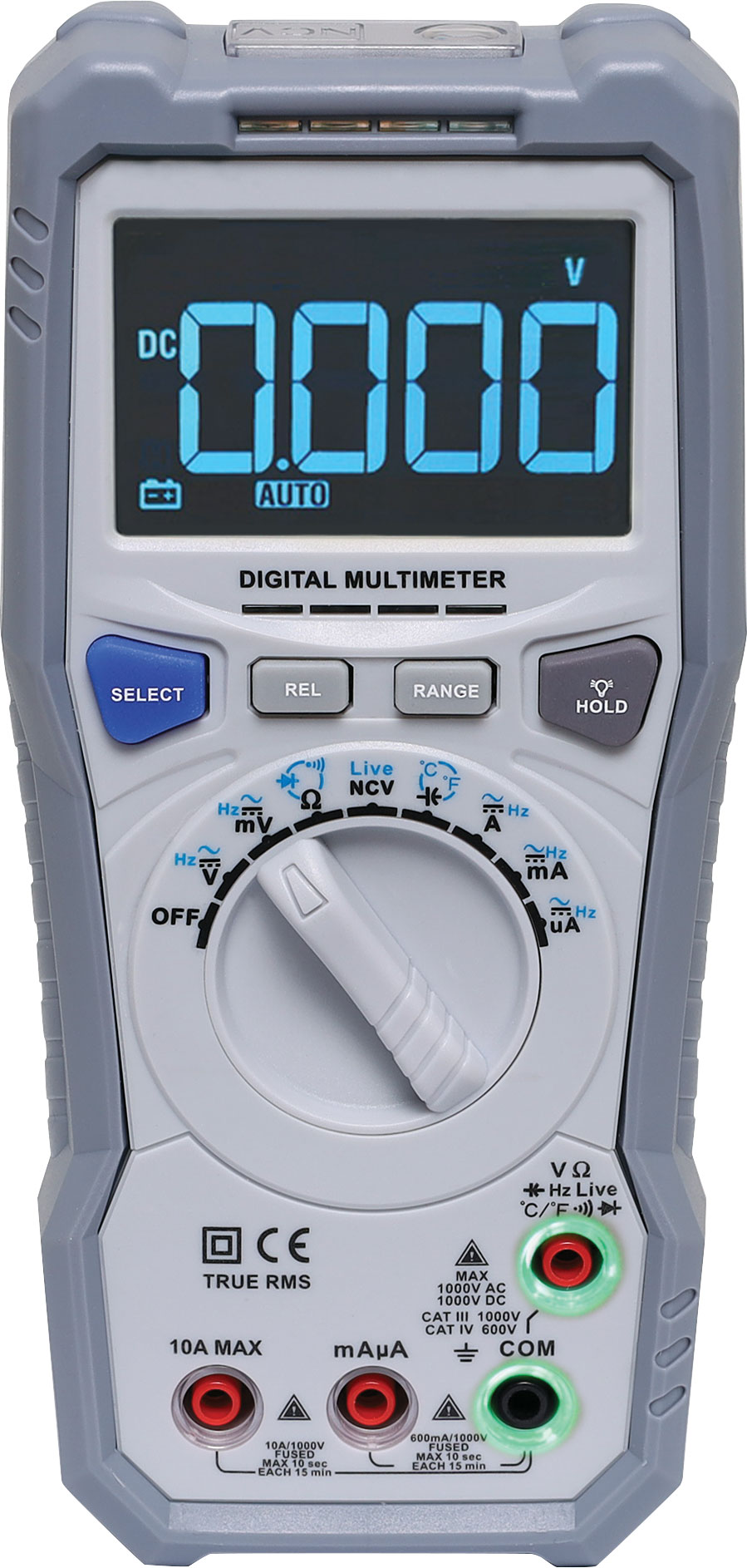

Autoranging True RMS Pro Digital Multimeter

Be the first to review this product
With wireless charging adaptor - no batteries required! Plus, input jack LED indicators to remind users to plug leads into the correct jacks.
SKU: Q1073A
$90.00
Per ea
QuantityPrice
ea$90.00
2+$80.91
5+$71.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A professional grade multimeter for trades, technicians and regular multimeter users. It features a unique magnetic USB wireless charger allowing you to keep your multimeter charged up and ready to go at all times. Its clear, crisp reverse backlit 6000 count screen offers sharper contrast and larger viewing angle than traditional DMM LCD readouts, particularly in sunlight. Packed with features such as non-contact voltage detection, live wire testing, temperature, LED light and diode test - in addition to regular DMM functions. When a function is selected LED lights illuminate in the jack sockets showing which sockets to plug the test leads into. Supplied with charging cable, Qi wireless charging adaptor, high quality silicon rubber test leads & K type temperature probe.


Please see Q1055A as the carry case to suit this digital multimeter in accessories listed below. The multimeter can be recharged through a USB port on your computer or using a USB power supply, we recommend using M 8861A which is sold separately (see accessories listed below).

Features:

  • True RMS AC measurement
  • 6000 count reverse backlit LCD
  • Autoranging
  • Frequency counter to 10MHz
  • Capacitance measurement
  • Fused 10A input
  • Temperature mode (°C/°F)
  • Test socket LED lights
  • Continuity and diode test
  • Internal rechargeable lithium battery
  • Range hold & relative mode
  • Data hold
  • Wireless USB charging adaptor
  • Cat III 1000V/Cat IV 600V

Specifications:

Voltage AC/DC: 600mV, 6V, 60V, 600V, 1000V (DC ±0.5%+5d), (AC ±1.2%+5d)

  • Current AC/DC: 600µA, 6000µA, 60mA, 600mA, 10A (DC ±1.2%+5d), (AC ±1.5%+5d)
  • Resistance: 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ (±0.8%+5d)
  • Frequency: 10Hz, 100Hz, 1kHz, 10kHz, 100kHz, 1MHz, 10MHz (±1.5%+5d)
  • Capacitance: 6nF, 60nF, 600nF, 6µF, 60µF, 600µF, 6mF, 60mF (±5%+5d)
  • Temperature: -20°C - ˜1000°C (±2%+2d)
  • Diode test: Test voltage 2V max
  • Continuity test: Less than 50Ω
  • Protection: 1000V/10A fused
  • Display: 3.75 digit LCD, 6000 count, backlit
  • Dimensions: ˜ 89W x 43D x 192H

2 Years

We Offer 2 Years for this product
