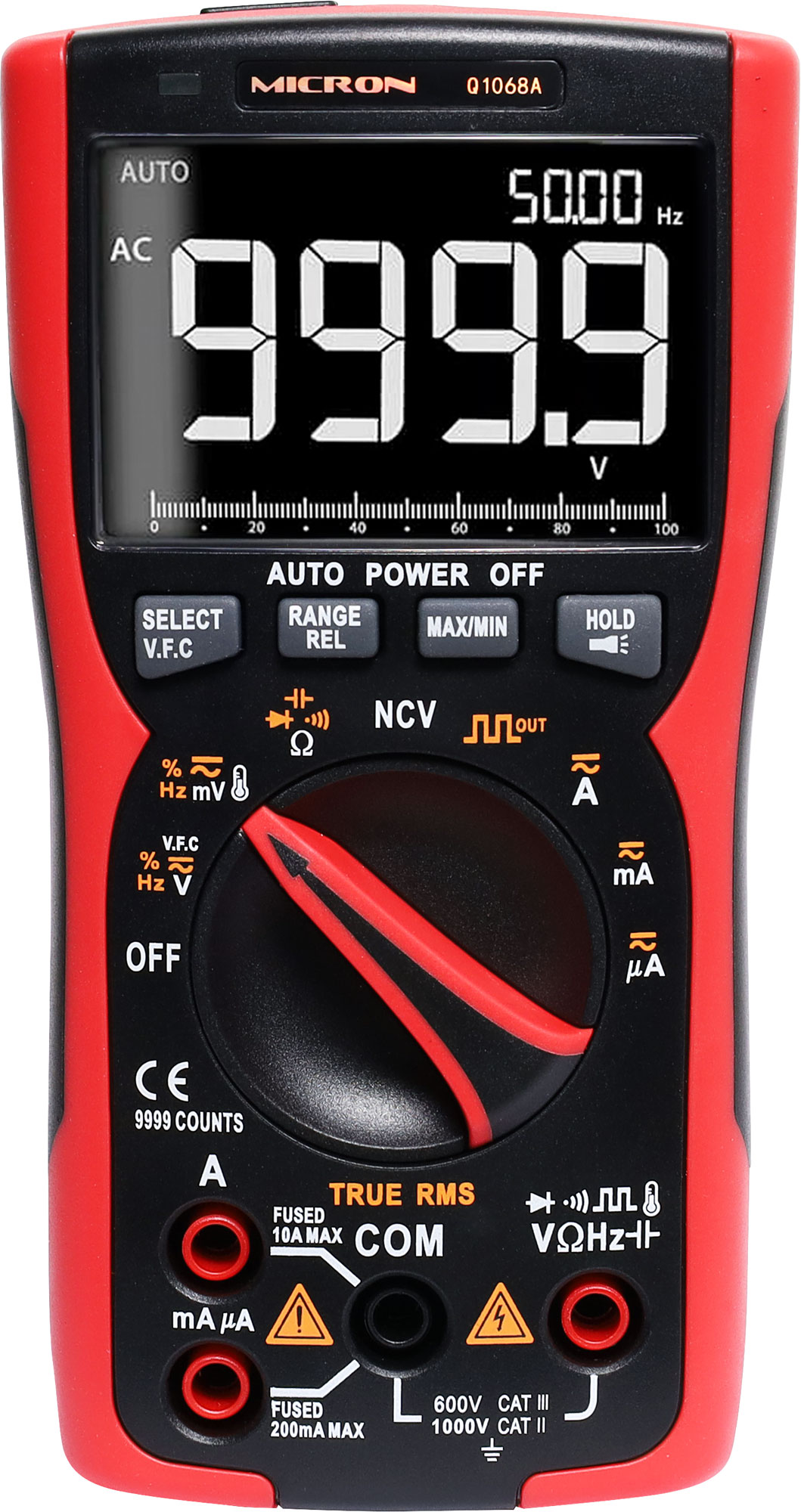

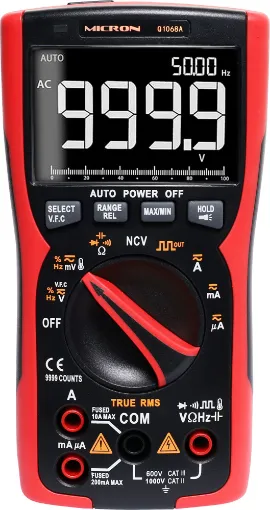

Autoranging True RMS Digital Multimeter

Manufacturer: Micron
Be the first to review this product
With in-built AC mains detection. This is one of the best digital multimeters we have evaluated when it comes to build quality and feature set. Its perfect for the serious enthusiast or tradesperson. LCD bargraph. 3.75 digit display. Mode assistance indicators.
SKU: Q1068A
$99.09 $80.91
Per ea
Save $18.18
Quantity Price
ea $99.09 $80.91
2+ $90.00 $80.91
4+ $80.91

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A rugged do-it-all meter is perfect for a serious electronics enthusiast, electrical tradesperson or service tech. The 9999 count 3.75 digit display also features a LCD bargraph and helpful mode indicators. Standard measurement ranges include AC/DC voltage & current, resistance, capacitance, temperature, frequency & duty cycle. In addition, the top of the meter has an AC sensor and flashing LED which enables detection of lethal mains voltages in circuits or wiring. The rubberised case offers excellent physical protection. Includes carry case, temperature probe, high quality rubber insulated test leads and 3 x AAA batteries.

Features:

  • Auto ranging with manual override
  • Min/max & data hold
  • Non contact AC voltage detector
  • Frequency/duty cycle measurement
  • Temperature measurement
  • Backlit LCD screen with bargraph
  • Diode test
  • Continuity buzzer
  • 3 x AAA Batteries included
  • Auto power off
  • Cat II 1000V, Cat III 600V
  • 2 year warranty.

Specifications:

Voltage DC: 9.999mV, 99.99mV, 999.9mV, 9.999V, 99.99V, 999.9V (±0.5%+3d)

  • Voltage AC: 9.999mV, 99.99mV, 999.9mV, 9.999V, 99.99V, 750V (±1%+3d)
  • Current AC/DC: 99.99µA, 999.9µA, 9.999mA, 99.99mA, 999.9mA, 9.999A (±1%+3d)
  • Temperature: -20°C to 1000°C (±2.5%+5d)
  • Resistance: 99.99Ω, 999.9Ω, 9.999kΩ, 99.99kΩ, 999.9kΩ, 9.999MΩ, 99.99MΩ (±3%+5d)
  • Frequency: 99.99Hz, 999.9Hz, 9.999Hz, 99.99kHz, 999.9kHz, 5MHz, (±0.1%+2d)
  • Capacitance: 9.999nF, 99.99nF, 999.9µF, 9.999µF, 99.99µF, 999.9µF, 9.999mF (±2.5%+5d)
  • Duty cycle: 1% - 99%
  • Diode test: Yes
  • True RMS: Yes
  • Data Hold: Yes
  • Low battery indication: Yes
  • Auto power off: Yes
  • Protection: 250V/10A fused
  • Ranging: Auto/Manual
  • Update Rate: 3 Times/Second
  • Display: 3.75 digit LCD, 9999 count, backlit
  • Dimensions: ˜ 76W x 37D x 147H mm
  • Weight: 191g (without batteries)
  • Battery Type: 1.5V AAA Battery x 3
  • Operating Temperature: 0°C to 40°C
  • Operating Humidity: <75%
  • Storage Temperature: -20°C to 60°C
  • Storage Humidity: <80%
