New
RoHS

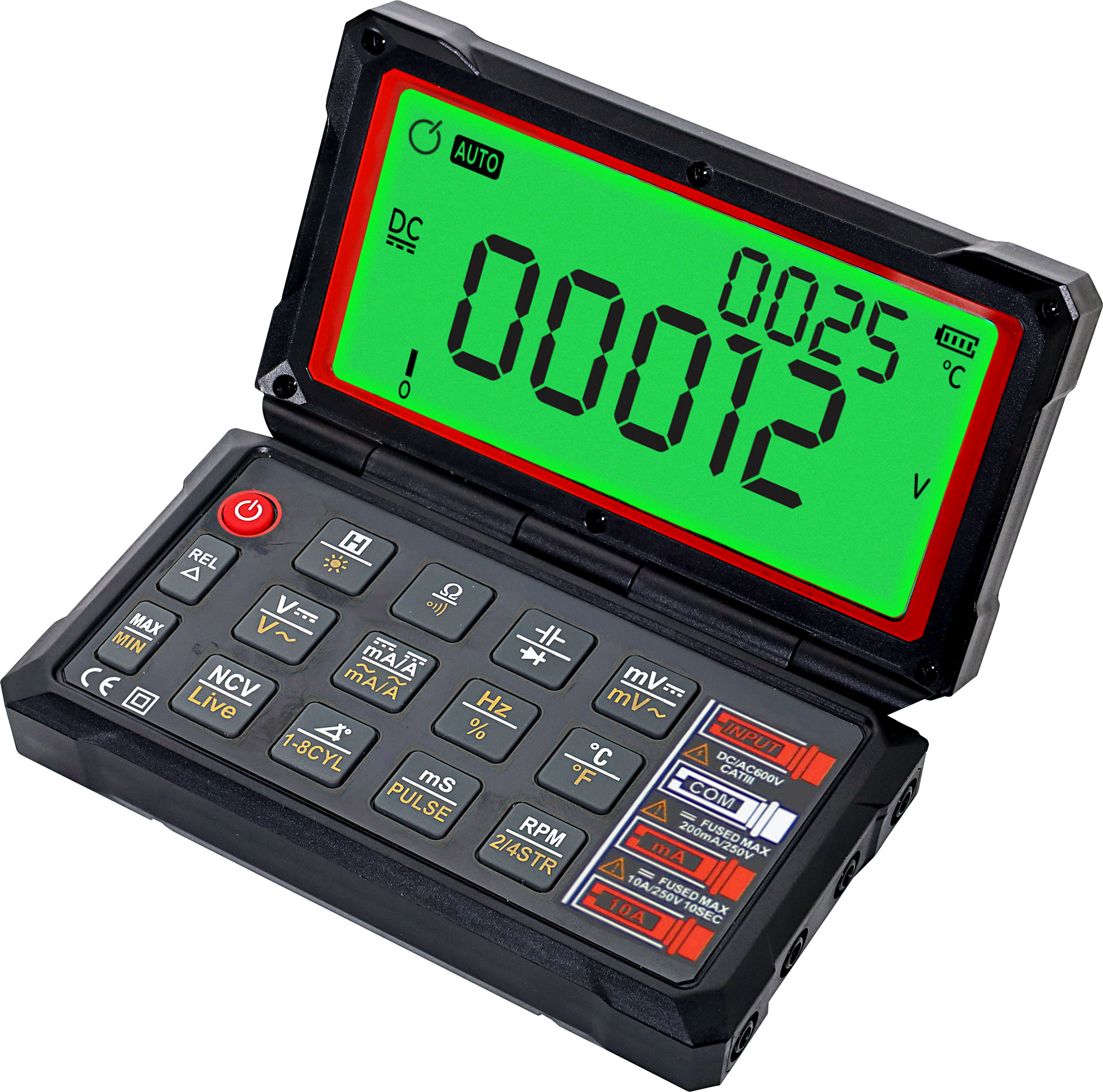

Autoranging Folding Digital Multimeter

Manufacturer: Micron
Be the first to review this product
This folding autoranging digital multimeter provides in depth functionality for technicians troubleshooting devices and circuits.
SKU: Q1058
$90.00 $71.82
Per ea
Save $18.18
Quantity Price
ea $90.00 $71.82
2+ $80.91 $71.82
5+ $71.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This folding autoranging digital multimeter provides in depth functionality for technicians troubleshooting devices and circuits. Plus features such as dwell angle, RPM engine speed and duty cycle it can also be utilised in automotive servicing. The folding design and rugged case stays put on any surface while testing, making it great for auto electricians and working in tricky spaces. Additional measurement features include  AC/DC voltage & current, resistance, capacitance, frequency, temperature and more! Features a 20000 count easy read screen with green backlighting. Includes probes, USB C charging cable and carry case. Cat III 600V

Features:

  • Large easy to read 20000 count screen
  • Folding design stays stable on any surface
  • Use it on the bench top or in the field
  • Autoranging
  • Handy automotive testing functions
  • Non-contact AC voltage detection >90V AC
  • Data hold, min/max relative modes
  • In-built lithium battery pack - no batteries required!
  • USB C rechargeable
  • Temperature measurement (sensor included)

Specifications:

Automatic function and range selection

  • Full-range overload protection
  • Maximum permissible voltage between the probe and earth: 1000 V DC or 750 V AC
  • Operating height: Max. 2000m
  • Display: LCD Maximum counts: 20000
  • Polarity indication: automatic, '' – '' indicates negative polarity
  • Over range display: ''OL'' or “-OL''
  • Sampling rate: approx. 2 times per second
  • Unit display: function display, battery display
  • Automatic close-down time: approx. 15 minutes
  • Power supply: 3.7 V/1800 mAh lithium battery
  • Battery undervoltage indication: LCD displays “(Battery Icon Displayed)”
  • Temperature coefficient: < 0.1 x accuracy / ?
  • Operating temperature: 0ºC-40ºC
  • Storage temperature: -20?-60?

12 Months

We Offer 12 Months for this product
