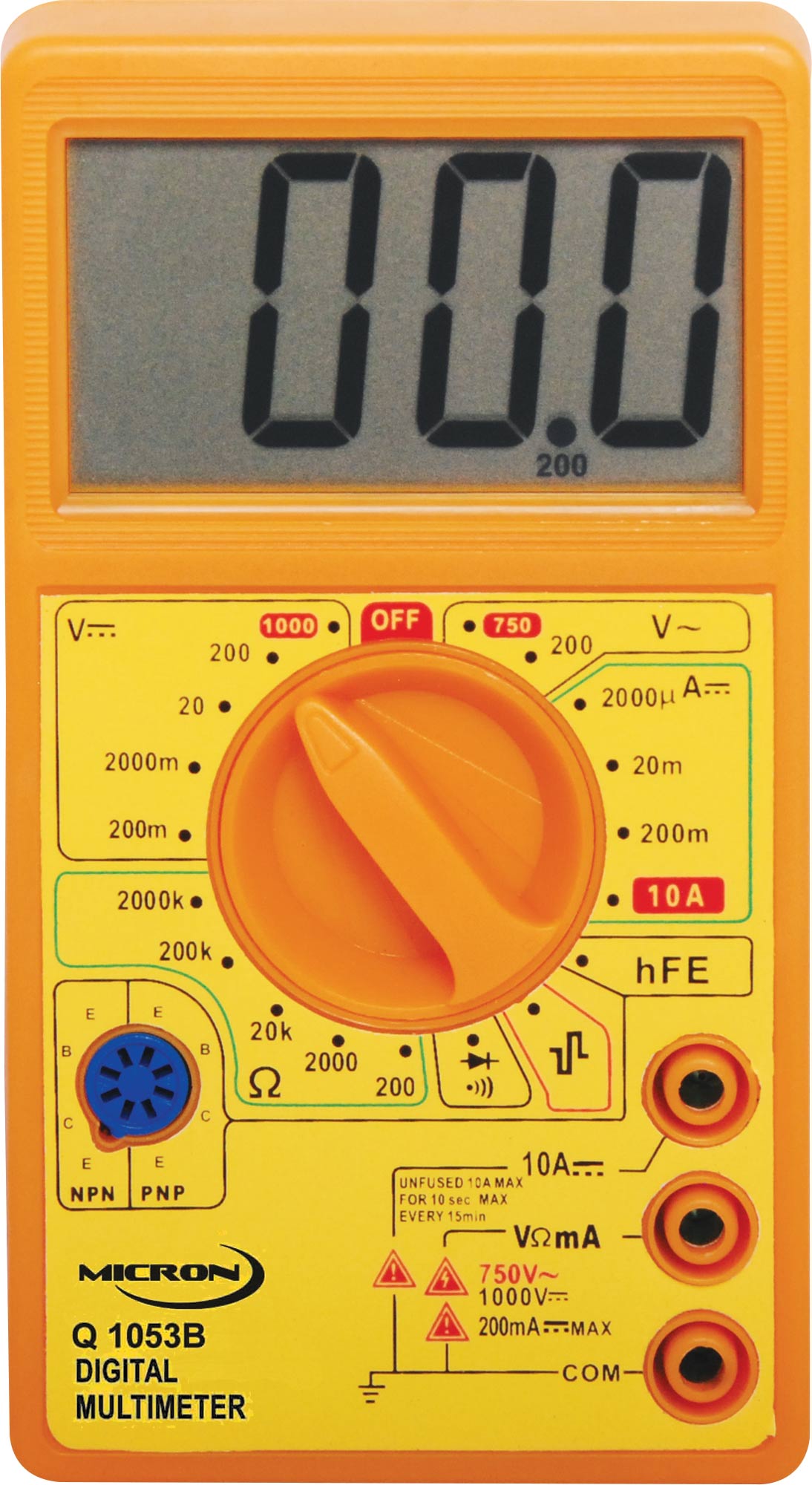

19 Range Digital Multimeter With Transistor Test

Manufacturer: Micron
Be the first to review this product
This compact, affordable digital multimeter features 19 ranges, square wave output, continuity buzzer, in-built hFE transistor and diode test function.
SKU: Q1053B
$10.86 $7.18
Per ea
Save $3.68
QuantityPrice
ea $10.86 $7.18
2+ $9.95 $7.18
5+ $8.86 $7.18

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Featuring 19 ranges, square wave output, continuity buzzer, in-built hFE transistor and diode test function. Suitable for students or budding enthusiasts. This meter offers quality and features found in much more expensive models, but at the fraction of the price. Perfect as a spare meter for the toolbox or work van. Supplied with test leads.

Features:

  • Low battery indicator
  • Jumbo display
  • Continuity buzzer
  • Square wave output
  • Transistor tester
  • Current measurement
  • Voltage measurement
  • Diode tester
  • Battery included
  • Cat II 500V

Specifications:

Voltage DC: 200mV, 2V, 20V, 200V, 1000V (±0.5%+4d)

  • Voltage AC: 200V, 750V (±1.2%+10d)
  • Current DC: 2000µA, 20mA, 200mA, 10A (±2%+2d)
  • Resistance: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ (±1%+8d)
  • Diode test: Included
  • Continuity test: Audible buzzer
  • Transistor test: Measures hFE, NPN/PNP identification
  • Display: 3.5 digit LCD, 1999 count
  • Dimensions: ˜ 68W x 24D x 125H mm

2 Years

We Offer 2 Years for this product
