Analog Multimeter With Transistor Test

Manufacturer: Pros Kit
Be the first to review this product

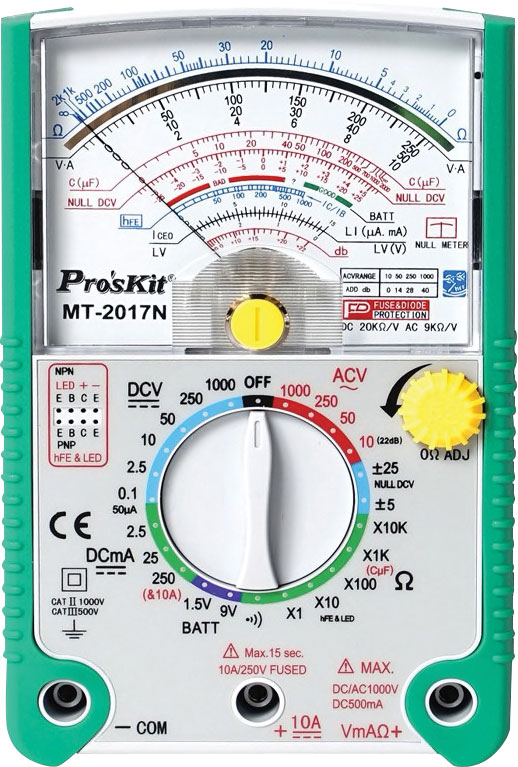

This quality analog multimeter is ideal for observing constantly varying quantities such as cycling voltages or speaker resonance testing. It has 20kO/Volt sensitivity with a colour scale and mirrored arc for parallax error reduction.
SKU: Q1026B
$72.68
Per ea
QuantityPrice
ea$72.68
2+$65.41
5+$58.14

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This quality analog multimeter by ProsKit is ideal for observing constantly varying quantities such as cycling voltages or speaker resonance testing. This meter has 20kΩ/Volt sensitivity with a colour scale and mirrored arc for parallax error reduction. Includes audible continuity tester, battery test range, and up to 10A DC current measurement. Complete with integral stand, fuse and diode protection and test leads.

Requires 1 x 9V battery and 2 x AAA batteries (sold separately)

Features

  • Battery test range
  • Continuity tester
  • 10A DC current range
  • Requires 9V battery
  • Integral stand
  • Fuse and diode protection
  • Moving coil to measure extremely cyclic voltages
  • Mirrored scale to minimise parallax error
  • Resistance range zero adjustment
  • Transistor hFE & LED tester
  • CAT II 1000V / CAT III 500V

Specifications:

DC volts: 0.1, 0.5, 2.5, 10, 50, 250, 1000V ±3%

  • AC volts: 10, 50, 250, 1000V ±4%
  • DC amps: 50µA, 2.5mA, 25mA, 250mA, 10A ±3%
  • Resistance: 1Ω, 10Ω, 100Ω, 1KΩ, 10K?
  • Battery test: 1.5V and 9V
  • Sensitivity: 20KΩ/V DC, 9KΩ/V AC
  • Protection: 500mA M205
  • Dimensions: ˜105W x 40D x 160H mm



pic

pic





12 Months

We Offer 12 Months for this product
