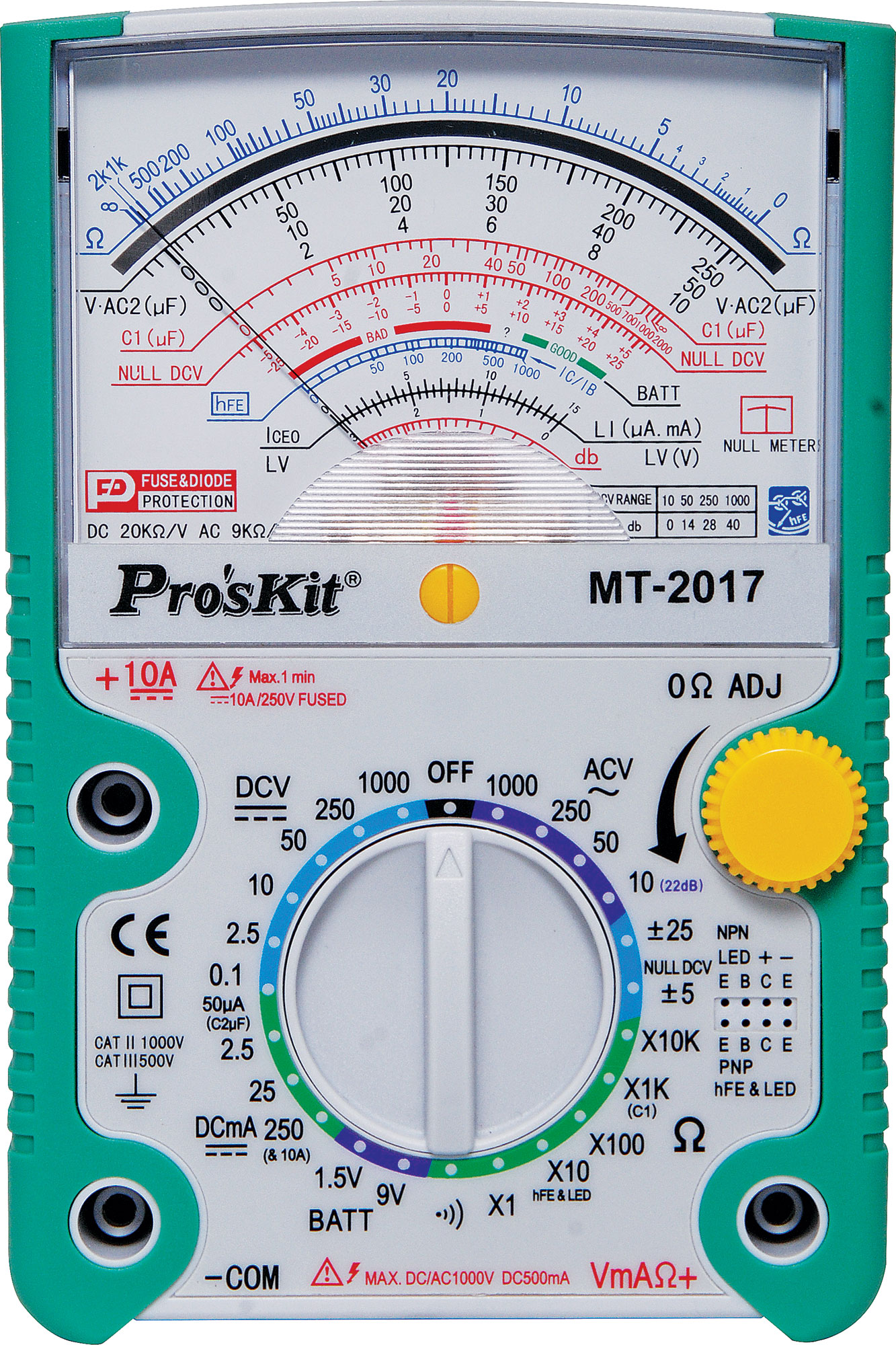

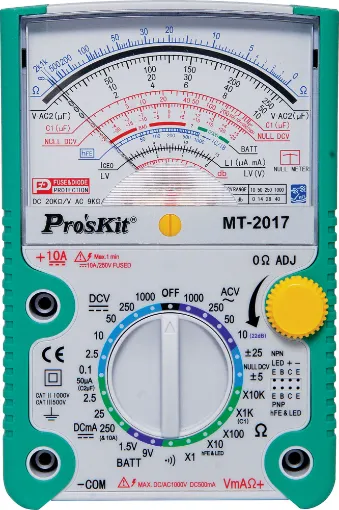

Analog Multimeter With Transistor Test

Manufacturer: Pros Kit
SKU: Q1026A
This quality analogue multimeter is ideal for observing constantly varying quantities such as cycling voltages or speaker resonance testing. It has 20kO/Volt sensitivity with a colour scale and mirrored arc for parallax error reduction.
$62.68

All Prices Shown are (ex GST)
Bulk Pricing
ea $62.68
2+ $56.59
5+ $50.23
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This quality analog multimeter is ideal for observing constantly varying quantities such as cycling voltages or speaker resonance testing. Analog multimeters are ideal for observing constantly varying quantities such as cyclic voltages or for speaker resonance testing. This multimeter has 20k ohm /Volt sensitivity with a colour scale and mirrored arc for parallax error reduction. Includes audible continuity tester, battery test range, and up to 10A DC current measurement. Complete with integral stand, fuse and diode protection and test leads.

Requires 1 x 9V battery and 2 x AAA batteries (sold separately)

Features

  • Battery test range
  • Continuity tester
  • 10A DC current range
  • Integral stand
  • Fuse and diode protection
  • Moving coil to measure extremely cyclic voltages
  • Mirrored scale to minimise parallax error
  • Resistance range zero adjustment
  • Transistor hFE & LED tester

Specifications:

DC volts: 0-0.1, 2.5, 10, 50, 250, 1000V ±4%

  • AC volts: 10, 50, 250, 1000V ±4%
  • DC amps: 0, 0.05, 2.5, 25, 250mA, 10A ±4%
  • Resistance: 1, 10, 100, 1k, 10kΩ
  • Battery test: 1.5V and 9V
  • Sensitivity: 20K Ohm/V DC, 9K Ohm/V AC
  • Protection: 500mA/250V and 10A/250V
  • Dimensions: 160L x 105W x 40H mm
