Flush Mount Power Monitor Panel with 100A Shunt

Manufacturer: Powerhouse
Be the first to review this product

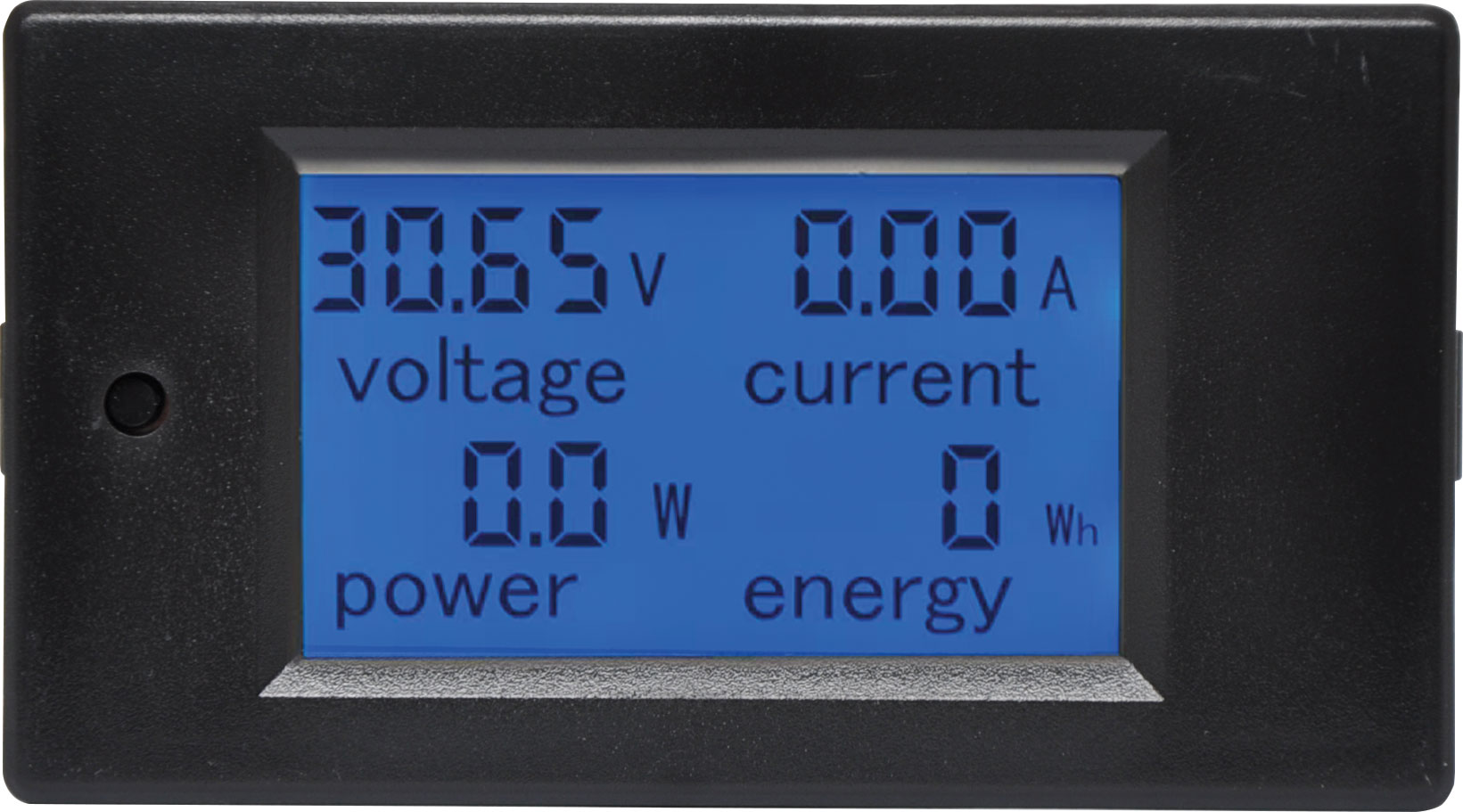

A complete power monitoring panel with voltage, current, power and energy consumption (Wh) displayed simultaneously.
SKU: Q0591
$36.32
Per ea
QuantityPrice
ea$36.32
4+$32.68
6+$29.05

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A complete power monitoring panel with voltage, current, power and energy consumption (Wh) displayed simultaneously. Easy press fit mount with voltage alarm function. 2000W max. 6.5-100V DC. Cut out dimensions 84.5W x 44.5Hmm. Features a 100A external shunt.

Features

  • Electrical parameter measurement function (voltage, current, active power, energy)
  • Voltage alarm function (over voltage alarm threshold, backlight and voltage flashing to alarm).
  • The reset function of energy key.
  • Store data when power off.
  • Large-screen LCD (display voltage, current, active power, energy at the same time)
  • Backlight function.

Specifications

Working Voltage: 6.5V~100V DC

  • Test Voltage: 6.5V~100V DC
  • Rated Power: 100A/2000W
  • Measurement accuracy:1.0 grade

12 Months

We Offer 12 Months for this product
