Panel Mount Multi-Function Digital Power Meter

Be the first to review this product
This Panel Mount Multi-Function Digital Power Meter is suitable for applications requiring a professional finish and digital accuracy.
SKU: Q0589
$27.23
Per ea
QuantityPrice
ea$27.23
4+$24.50
6+$21.77

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

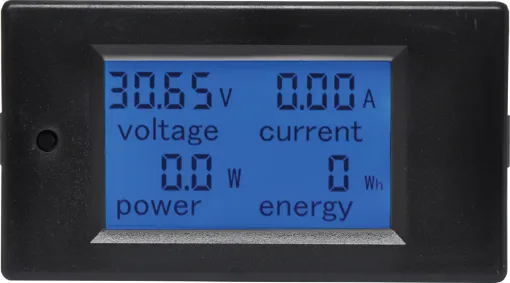

A complete power monitoring panel with voltage, current, power and energy consumption (Wh) displayed simultaneously. Easy press fit mount with voltage alarm function. 2000W max. 6.5-100V DC. Cut out dimensions 84.5W x 44.5Hmm. Available with 20A internal load shunt.

Features

  • Electrical parameter measurement function (voltage, current, active power, energy)
  • Voltage alarm function (over voltage alarm threshold, backlight and voltage flashing to alarm).
  • The reset function of energy key.
  • Store data when power off.
  • Large-screen LCD (display voltage, current, active power, energy at the same time)
  • Backlight function.

Specifications

Working voltage: 6.5 - 100VDC

  • Test voltage: 6.5-100VDC
  • Rated power: 20A/2000W
  • Measurement accuracy: 1.0 grade]
  • Screen size: 30H x 51Wmm
  • Physical size: 89.5W x 49.5H x 24.5Dmm
  • Cutout dimensions: 84.6W x 44.6Hmm

12 Months

We Offer 12 Months for this product
