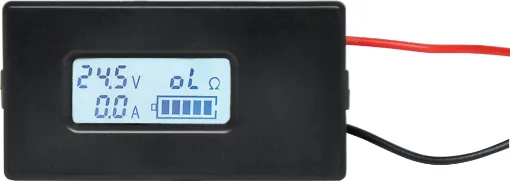

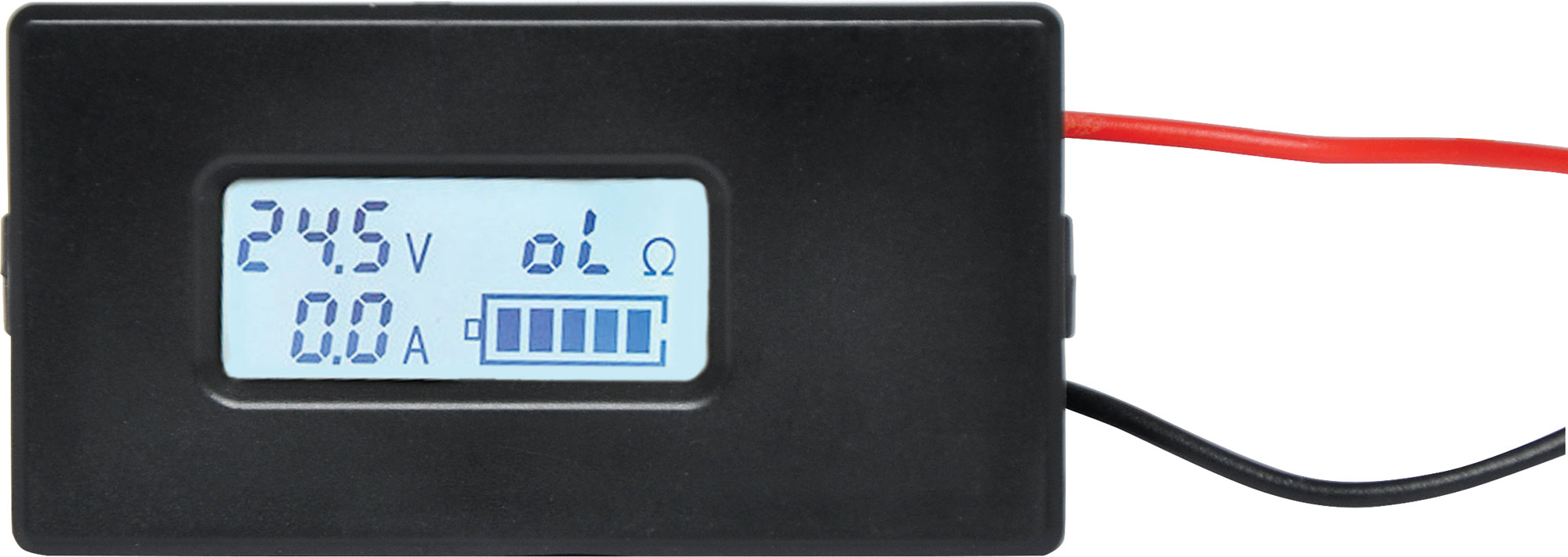

Mini Flush Mount Power Monitor Panel

Manufacturer: Powerhouse
SKU: Q0586
This compact flush mount panel display provides an easy way to monitor battery voltage, approximate level, load current and resistance.
$18.14

All Prices Shown are (ex GST)
Bulk Pricing
ea $18.14
4+ $16.32
6+ $14.50
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This compact flush mount panel display provides an easy way to monitor battery voltage, approximate level, load current and resistance.

10A max.
Measures 2.8-30V. 0.1V resolution with 2% accuracy.
Cut out dimensions: 22.5 x 49mm.
Overall dimensions: 27 x 51 x 16.5mm.

Features

  • Electrical parameter measurement (voltage, current, load resistance, dump energy (symbol display))
  • Backlight (you can control the backlight on/off through the button)
  • LCD display (display voltage, current, resistance, energy at the same time)

Specifications

Working Voltage: 2.8V~100V DC

  • Test Voltage: 2.8V~100V DC
  • Rated Power: 10A
  • Measurement Accuracy: 2%

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
