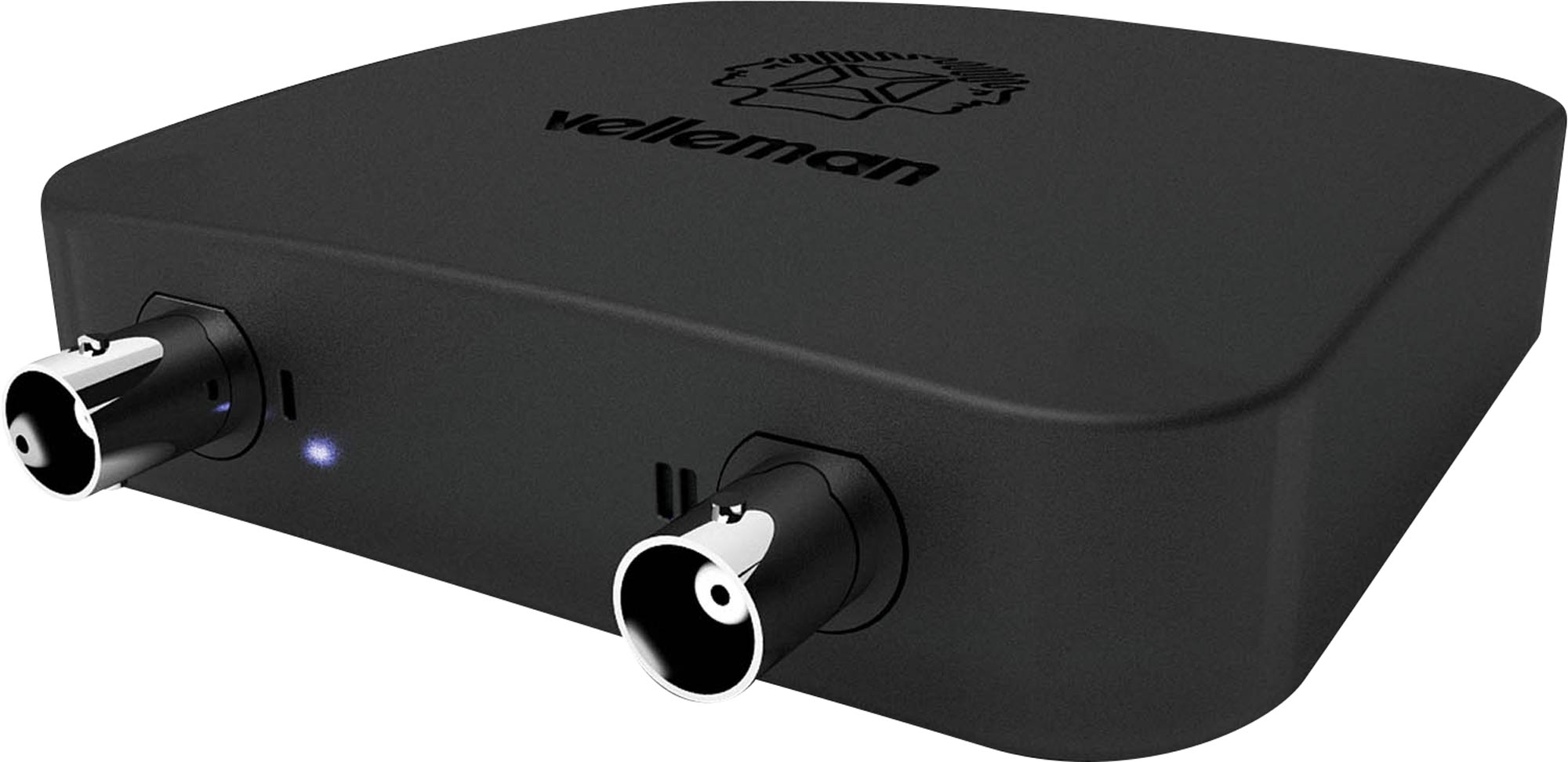

12MHz Dual Channel PC Oscilloscope Signal Generator

Manufacturer: Velleman
Be the first to review this product
Pocket size PC oscilloscope and function generator. This small box contains a world of measuring tools!
SKU: Q0207
$299.09 $190.00
Per ea
Save $109.09
QuantityPrice
ea $299.09 $190.00

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Turn your laptop into a 12MHz scope!
This compact black box is a great do-it-all solution to save space on your workbench and make use of your PC or laptop. It connects via USB and provides function generator, 12Mhz oscilloscope, transient recorder, bode plotter and spectrum analysing functions. Includes Windows software, USB cable & easy to read getting started guide.

function generator:
crystal-based stability
standard waveforms: sine, square and triangle
predefined library waveforms included: sine(x)/x, sweep, ...

in the box:
getting started manual
USB PC Scope+generator unit
USB cable

Specifications:

General information

  • • markers: for amplitude/voltage and frequency/time
  • • input coupling: DC, AC and GND
  • • 8 bit resolution
  • • storage of display and data
  • • supply from USB port (500mA)*
  • • dimensions: 100x100x35mm / 3,9x3,9x1.4"
  • Spectrum analyser:
  • • frequency range: 0 .. 120Hz to 12MHz
  • • linear or logarithmic timescale
  • • operating principle: FFT (Fast Fourier Transform) • FFT resolution: 2048 lines
  • • FFT input channel: CH1 or CH2
  • • zoom function
  • Transient recorder
  • • timescale: 20ms/Div to 2000s/Div
  • • max record time: 9.4hour/screen
  • • automatic storage of data
  • • automatic recording for more than 1 year • max. number of samples: 100/s
  • • min. number of samples: 1 sample/20s
  • Function generator
  • • frequency range: sine from 0.5Hz to 1MHz
  • • square and triangle from 0.5Hz to 500kHz
  • • extended waveform library
  • • amplitude range: 200mVpp to 8Vpp @ 1KHz//
  • output impedance: 50ohm
  • Oscilloscope
  • • bandwidth: two channels DC to 12 MHz ±3dB • input impedance: 1 Mohm / 30pF
  • • maximum input voltage: 30V (AC + DC)
  • • time base: 0.1μs to 500ms per division
  • • input range: 10mV to 3V/division
  • • readouts: True RMS, dBV, dBm, p to p, Duty
  • cycle, Frequency...
  • • record length: 4K samples / channel
  • • sampling frequency: 250Hz to 25MHz
  • • sample history and digital grab function
  • Bode plotter
  • • Automated sync between oscilloscope and generator
  • • Frequency range: 1kHz , 10kHz, 100kHz, 1MHz
  • • Frequency start: 1Hz, 10Hz, 100Hz, 1kHz, 10kHz
