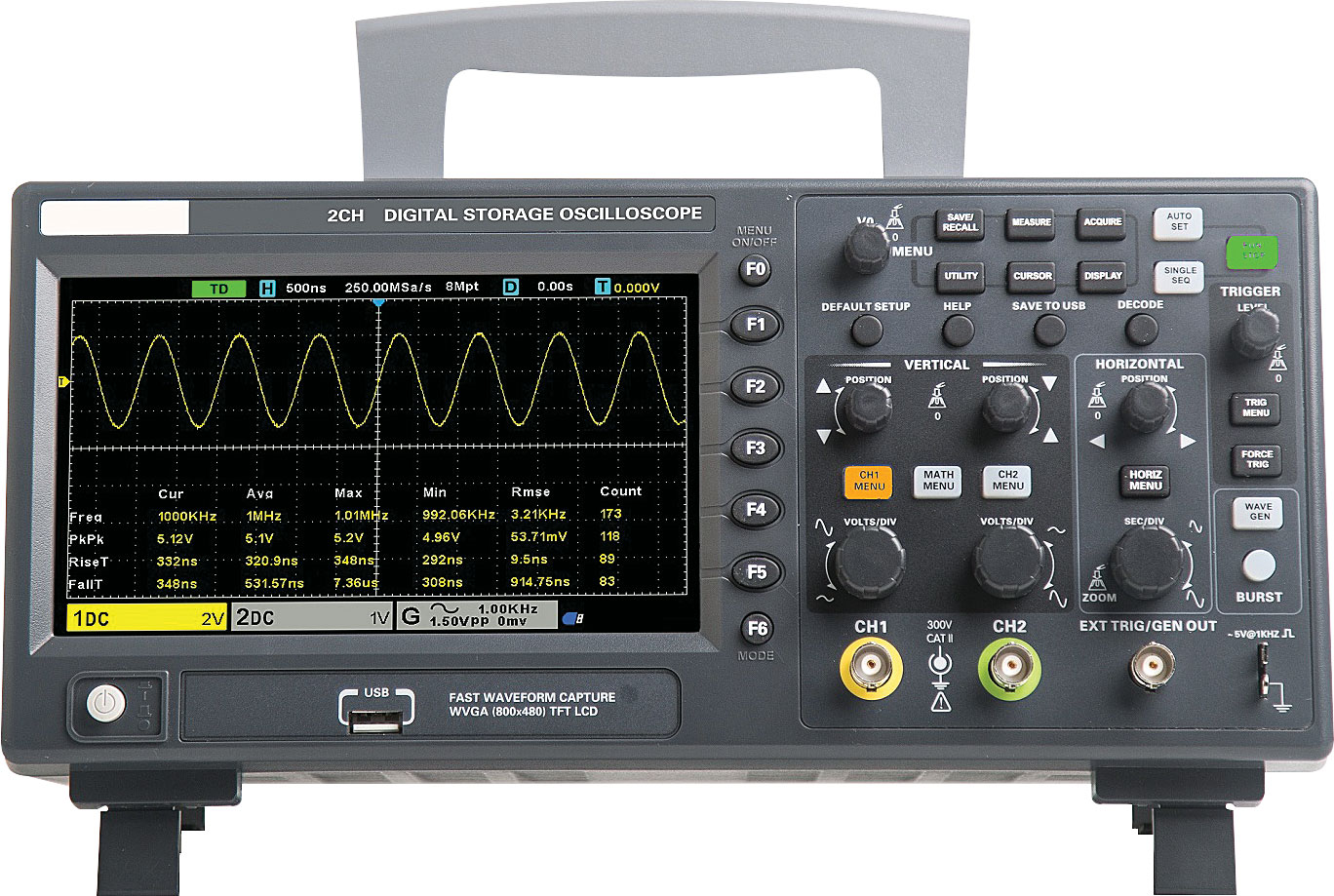

100MHz LCD Digital Storage Oscilloscope & Waveform Generator

Specifications

Basics

• Bandwidth: 150MHz
• Oscilloscope Channels: 2CH
• Waveform Generator: 1CH
• Sample Rate: 1GSa/s (single channel) 500MSa/s (two channels)

Acquisition

• Normal: Sample data
• Peak-to-Peak Value: Display high frequency and random burr
• Average Waveform Times:  4, 8, 16, 32, 64, 128
• High Resolution: Up to 12bit

Input

• Input Coupling: DC, AC, GND
• Input Impedance: 1MΩ±2% 20pF±3pF
• Probe Attenuation Factor: 1X, 10X, 100X, 1000X
• Voltage Rating: 300V CAT II
• Maximum Input Voltage: 300V RMS (10X)

Horizontal

• Waveform Interpolation: (sin x)/x
• Maximum Record Length:
• Single Channel Maximum 8M
• Two channels Maximum: 4M
• Horizontal Scale Range: 2ns/div~100s/div  1, 2, 5 step by step
• Time Base Mode: Y-T, X-Y, Roll
• Zero Offset: ±0.5 div×minimum time base gear
• Sample Rate and Delay Time Accuracy: ±25ppm
• Delta Time Measurement Accuracy (Full Bandwidth) Sample Rate and Delay Time Accuracy: single-shot, Normal mode ± 1 sample interval+100ppm×reading+0.6ns) 16 times averages ± (1 sample interval+100ppm×reading+0.4ns)
• Sample Interval: =sec/div÷200
• Sample Rate and Delay Time Accuracy: ±50ppm (at any interval greater than 1ms)

Vertical

• Model: Q0203B
• Bandwidth: 100MHz
• Rising Time in BNC Position (typical): 2.4ns, 3.5ns, 2.4ns, 3.5ns
• Vertical Resolution: 8 bits resolution, each channel samples simultaneously
• Vertical Sensitivity: 2mV/div to 10V/div
• Offset Range = 200mV/div, ±1V; 200mV/div ±50V
• Mathematical Operation: +, -, ×, ÷, FFT
• FFT Window: Rectangle, Hanning, Hamming, Blackman, Bartlett, Flattop
• Bandwidth Limit: 20MHz
• Bass Response (-3db): In BNC position = 10Hz
•

• Vertical gain accuracy In ‘’normal’’  or ‘’average’’ acquisition mode, the accuracy of 10V/div to 10mV/div is ±3%;
• In ‘’normal’’ or ‘’average’’ acquisition mode, the accuracy of 5mV/div to 2mV/div is ±4%
• Note: Bandwidth reduced to 6MHz when using a 1X probe.

Trigger

• Trigger Type: Edge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC
• Trigger Level Range: ±5 divisions from the centre of the screen
• Trigger Mode: Auto, Normal, single
• Level CH1- CH2: ±4 divisions from the centre of the screen
• Hold-Off Range: 8ns~10s
• Trigger Level Accuracy: CH1-CH2 0.2 div×volts/div within ±4 divisions from the centre of the screen
•

• Edge Trigger
• Slope: Rising edge, falling edge, rising or falling edge
• Signal Source: CH1, CH2, EXT(Only With AWG Model)
•

• Pulse Width Trigger
• Polarity: Positive polarity, negative polarity
• Condition (When): <, >, !=, =
• Signal Source: CH1-CH2,
• Pulse Width Range: 8ns ~ 10s
• Accuracy: 8ns
•

• Video Trigger
• Signal Standard: NTSC, PAL
• Signal Source: CH1-CH2
• Synchronisation: Scanning line, line number, odd field, even field, all field
•

• Slope Trigger
• Slope: rising, falling
• Condition (When): <, >, !=,  =
• Signal Source: CH1-CH2
• Time Range: 8ns - 10s
• Accuracy: 8ns
•

• Overtime Trigger
• Signal Source: CH1-CH2
• Polarity: Positive polarity, negative polarity
• Time Range: 8ns - 10s
• Accuracy: 8ns
•

• Window Trigger
• Signal Source: CH1-CH2
•

• Pattern Trigger
• Pattern 0: low level; 1: high level; X: ignore
• Level (signal source): CH1- CH2
•

• Interval Trigger
• Slope: rising, falling
• Condition (When): <, >,  !=,  =
• Signal Source: CH1-CH2
• Time Range: 8ns - 10s
• Accuracy: 8ns
•

• Under Amp Trigger
• Polarity: Positive polarity, negative polarity
• Condition (When): <, >, !=, =
• Signal Source: CH1-CH2
• Time Range: 8ns - 10s
• Accuracy: 8ns
•

• UART Trigger
• Condition (When): Start, Stop, data, Parity ERR, COM ERR
• Signal Source (RX/TX): CH1-CH2
• Data Format: Hex (hexadecimal)
• Data Length: 1 byte
• Data Bit Width: 5 bit, 6 bit, 7 bit, 8 bit
• Odd-Even Check: none, odd, even
• Idle Level: high, low
• Baud Rate (optional): 110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/115200/230400/380400/460400 bit/s
• Baud Rate (user-defined): 300bit/s~334000bit/s
•

• LIN trigger
• Condition (When): Interval field, synchronisation field, ID field, synchronisation error, identifier, ID and data
• Signal Source: CH1-CH2
• Data Format Hex: (hexadecimal)
• Baud Rate (optional): 110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/115200/230400/380400/460400 bit/s
• Baud Rate (user-defined): 300bit/s~334000bit/s
•

• CAN Trigger
• Condition (When): Start bit, remote frame ID, data frame ID, frame ID, data frame data, error frame, all errors, ACK Error, overload frame
• Signal Source: CH1-CH2
• Data Format: Hex (hexadecimal)
• Baud Rate (optional): 10000, 20000, 33300, 500000, 62500, 83300, 100000, 125000, 250000, 500000, 800000, 1000000
• Baud Rate (user-defined): 5kbit/s~1Mbit/s
•

• SPI Trigger Signal Source: CH1-CH2
• Data Format: Hex (hexadecimal)
• Data Bit Width: 4, 8, 16, 24, 32
•

• IIC Trigger
• Signal Source: (SDA/SCL) CH1-CH2
• Data Format: Hex (hexadecimal)
• Data Index: 0-7
• When (condition): Start bit, stop bit, No Ack, address, restart, address and data

Measurement

• Cursor
• Voltage difference between cursors ?V
• Time difference between cursors ?T
• Reciprocal of ?T, in Hertz (1/?T)
•

• Auto Measurement: frequency, period, mean, peak-to-peak, RMS, minimum, maximum, rising time, falling time, + width, - width, base, top, middle, amplitude, overshoot, pre-shoot, rising edge phase difference, falling edge phase difference, + duty, - duty, period mean, PRMS, FOVshoot, ROVshoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF
•

• DVM
• Data Source: CH1, CH2
• Measurement Type: DC RMS, AC RMS, DC
• Frequency Meter: hardware 6 bits frequency meter

Arbitrary Waveform Generator

• Channel: 1
• Sample Rate: 200MSa/s
• Vertical Resolution: 12 bits
• Maximum Frequency: 25 MHz
• Standard Waveforms: sine, square, ramp, Exp, noise, DC
• Arbitrary Waveform: Arb1, Arb2, Arb3, Arb4
• Sin Frequency Range: 0.1Hz-25MHz
• Square/pulse Frequency range: 0.1Hz-10MHz
• Triangular Wave Frequency Range: 0.1Hz-1MHz
• Sampling Wave Frequency Range: 0.1Hz-1MHz
• Index Frequency Range: 0.1Hz-5MHz
• Noise Frequency Range: 0.1 Hz to 10 MHz
• Waveform Length: 4KSa
• Frequency Accuracy: 100 ppm (<10 kHz) 50 ppm (>10 kHz)
• Frequency Resolution: 0.1 Hz or 4 bits, take the greater one
• Amplitude Output Range 10mV to 7Vp-p (high impedance), 5mV to 3.5Vp-p (50Ω)
• DC Offset Range: ±3.5 V, high impedance, ±1.75 V, 50 Ω
• Resolution: 100 µV or 3 bits, take the greater one
• Accuracy: 2% (1 kHz)
• Output Impedance: 50 Ω

Display

• Type: 7"" diagonal TFT liquid crystal
• Resolution: 800 (horizontal) * 480 (vertical) pixels
• Display Colour: 16 million colours (24 bits true colour)
• Persistence Time: minimum, 1s, 5s, 10s, 30s, infinite
• Display Type: dot, vector
• Display Brightness: adjustable
• Grid Type: adjustable
• Grid Brightness: adjustable

General Specifications

• Interface: Standard interface USB Host, USB Device, Probe compensator output
• Output Voltage (typical): about 2Vpp input =1MΩ load
• Frequency (typical): 1kHz
• Power Supply: 240V AC
• Power Consumption: <30W
• Fuse: T 3.15A, 250V, 5x20mm
• Operating Temperature: 0 to 50°C
• Storage Temperature: -40 to +71 °C
• Humidity: =+40°C =90% relative humidity, +41°C ~50°C =60% relative humidity.
• Size: 318 x 110 x 150mm (length x width x height)
• Weight: 1900g
