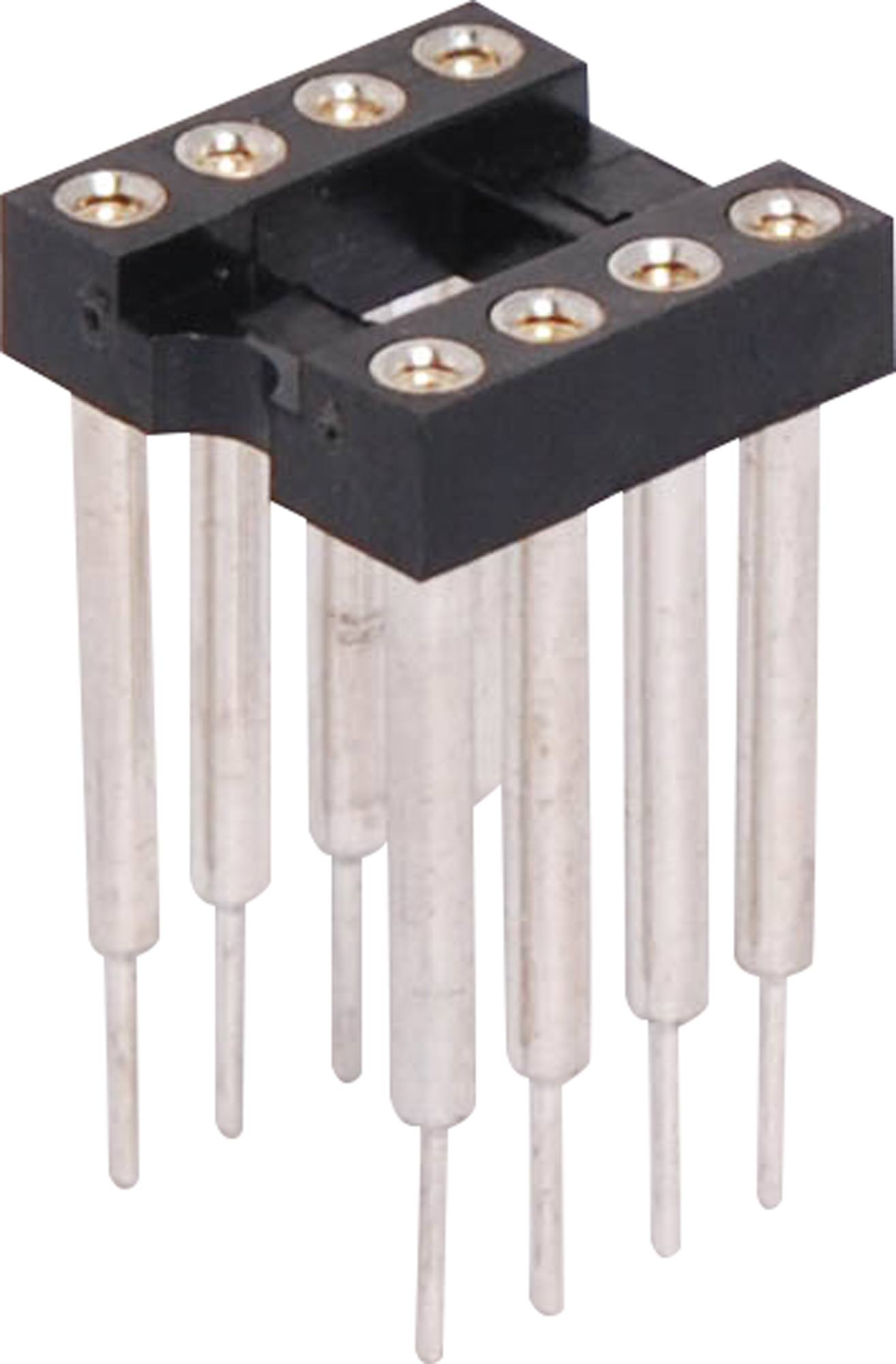

8 Pin (0.3") DIL Machined Pin IC Socket 15.3mm Pins

SKU: PX0576
Contact Resistance: 30m Max @ DC 100mA Insulation Resistance: 1000M Min @ DC 250V Current Rating: 1 Amp Dielectric Voltage: AC 500V for 1 Minute Operating Temp: -55&deg to 105&deg C Gold Plated Beryllium Copper Contacts.
$1.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $1.55
10+ $1.41
50+ $1.27
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Quality Oupiin brand 8004 series, 8 pin DIL IC socket with machined pins and gold plated beryllium copper contacts. Standard 2.54mm (0.1") pin spacing, 7.62 (0.3") pitch.

Specifications:

Contact Resistance: 30m? Max @ DC 100mA

  • Insulation Resistance: 1000M? Min @ DC 250V
  • Current Rating: 1 Amp
  • Dielectric Voltage: AC 500V for 1 Minute
  • Operating Temp: -55° to 105° C
  • Gold Plated Beryllium Copper Contacts.

Warranty & Returns

12 Months

We Offer 12 Months for this product
