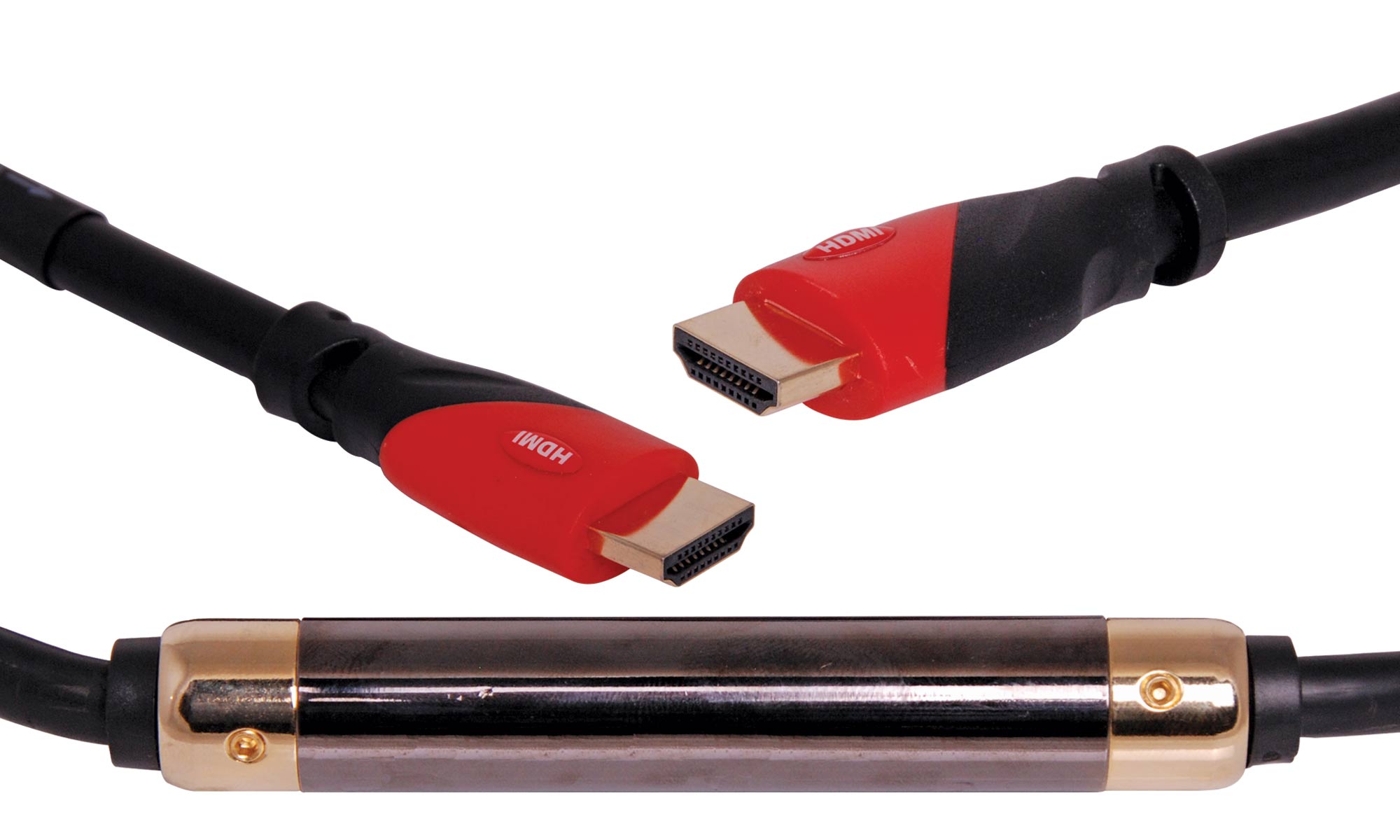

HDMI® male to HDMI® male cable fitted with a booster/repeater for reliable long distance transmission. Low profile connector fits 25mm conduit. This series is backed by Dynalink''s lifetime warranty and offers excellent performance for your HDMI® equipped devices. They are capable of 4K resolutions at 60Hz with 32 channels of audio.
Narrow HDMI® plug design suits 25mm electrical conduits.
Due to feedback from installers we have designed this range of HDMI® leads to use a narrow profile connector which is suitable for running through 25mm electrical conduits in walls and slabs. This makes it much easier to run cables on the job without the need for complicated cable terminations.
Please note: These leads are directional. There are input and output direction markers at each end on the outer PVC sheath showing which direction to connect the device. The booster amplifier is always towards the output end.
Key Features:
» HDMI® certified.
» Narrow profile plug suits 25mm conduits.
» 26AWG cable gauge with fibre wrap shielding
» Supports 4K resolutions at 60Hz.
» 32 channels of audio.
» 10.2Gbits/s TMDS bandwidth.
» 48 bit/px deep colour.
HDMI High Speed With Ethernet. Made by an official HDMI® adopter.
Altronics only stocks the ''HDMI® High Speed With Ethernet'' type of leads outlined in the official HDMI® adopter standard.
Read more about HDMI® lead types.
4K @ 30/60Hz Ultra HD Ready
This range of HDMI® leads provides support for 4K resolutions. This provides the best possible performance on Ultra HD monitors and source equipment.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.Specifications
Connector: Type A Male, Gold
- Wire gauge: 26AWG
- Wire material: Bare copper
- Out-diameter: 8.5mm
- Resolution: 4K (3840 x 2160) @ 60Hz max.
- Data rate: 10.2GBPS
- Colour depth: 36BIT
- Type of shielding: Triple shield
