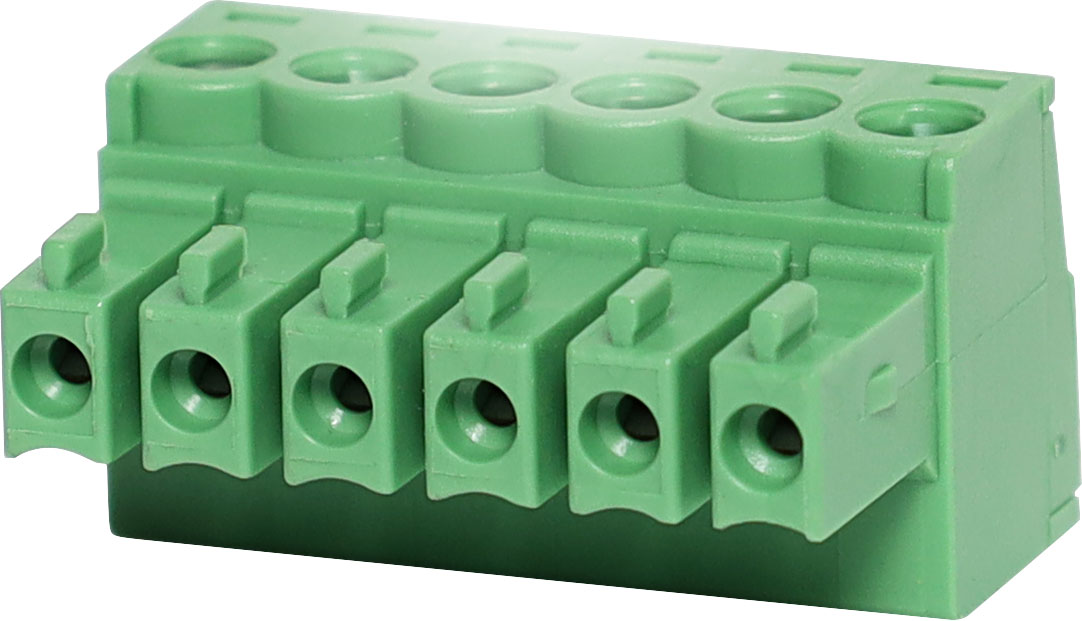

6 Way 3.50mm Pluggable Terminal Plug

Manufacturer: Dinkle
Be the first to review this product
Screw terminal plugs with rising clamp type terminals. Rated 8A at 300V. Cable hole entry size 28 ~ 14AWG.
SKU: PA2716
$2.64
Per ea
QuantityPrice
ea$2.64
10+$2.36
40+$2.09

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Screw terminal plugs with rising clamp type terminals. Rated 8A at 300V. Cable hole entry size 28 ~ 14AWG.

For extended specfications, please refer to our datasheet PDF download

General
Pitch (mm): 3.50
Colour: Green (default)
Connection method: Screw Connection
Type of locking: Without
Dimensions L x W x H: 3.50*P x 15.5 x 11.1mm
Number of positions: 02P~24P
Level: Single level

Material information
Insulation material: PA
Insulation material group: I
Flame retardant rating , compliant with UL94: V0
Insulation resistance: 500MĪ© at DC 500V
Conductor material: COPPER ALLOY
Plating of conductor surface: Tin PLATED

12 Months

We Offer 12 Months for this product

Only registered users can write reviews
