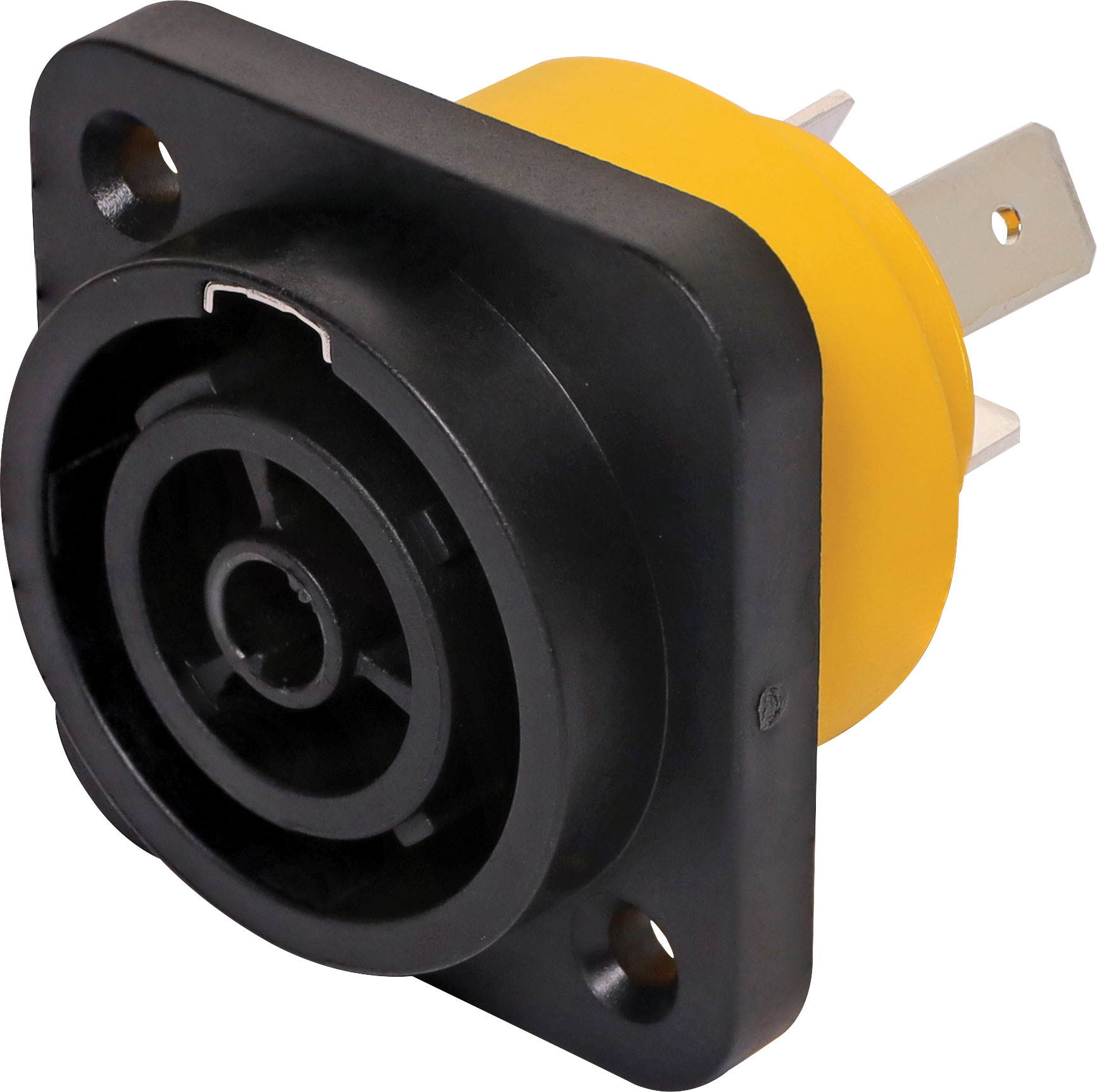

HPT-3-FDW IP65 Power Out 16A Chassis Connector

Manufacturer: Amphenol
Be the first to review this product
Extra heavy duty weatherproof (IP65) Amphenol Power connector as used in commercial heavy duty power applications. Power In. HPT-3-FDW 16A 250V. SAA approved.
SKU: PA0778
$6.82
Per ea
QuantityPrice
ea$6.82
5+$5.91
10+$5.41

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Extra heavy duty weatherproof (IP65) Amphenol Power connector as used in commercial heavy duty power applications. Power In. HPT-3-FDW 16A 250V. SAA approved.






When connecting to mains power this must be installed by a licensed electrician.
To be installed in accordance to the latest issue of AS/NZ 3000 and by a licensed electrician as ruled in the state of installation.


Features

  • Locking 16 A / 250 V AC appliance coupler
  • 3 contacts for line, neutral and premating safety ground
  • Fast and easy twist lock latching system
  • Extremely robust and reliable

Specifications

Current Rating: 16 A

  • Voltage Rating: 250 V
  • Mounting Angle: Straight
  • Mounting Style: Panel
  • Color: Black
  • Number of Ports: 1 Port
  • IP Rating: IP65
  • Series: HPT
  • Flammability Rating: UL 94 V-0
  • Housing Material: Thermoplastic (TP)
  • Maximum Operating Temperature: + 80 C
  • Minimum Operating Temperature: - 25 C
  • Termination Style: Solder

12 Months

We Offer 12 Months for this product
