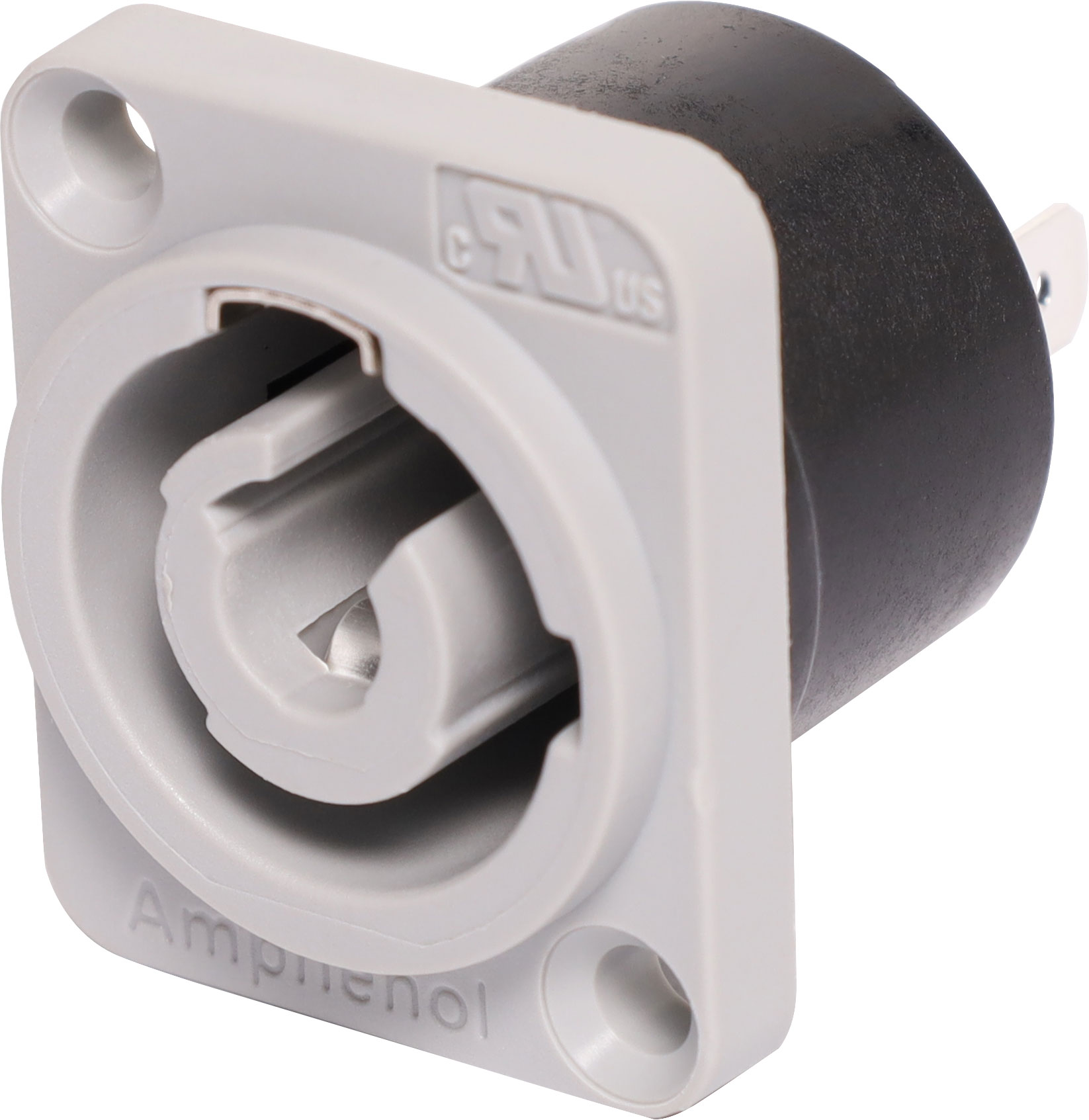

HP-3-MDGW Power Out 25A Chassis Socket

Manufacturer: Amphenol
SKU: PA0774
Extra heavy duty connector as used in commercial lighting and audio applications. Power Out. SAA approved.
$6.59

All Prices Shown are (ex GST)
Bulk Pricing
ea $6.59
5+ $6.32
10+ $5.00
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Extra heavy duty connector as used in commercial lighting and audio applications. Power Out. SAA approved.






When connecting to mains power this must be installed by a licensed electrician.
To be installed in accordance to the latest issue of AS/NZ 3000 and by a licensed electrician as ruled in the state of installation.


Features

  • Locking 25 A / 250 V ac appliance coupler
  • 3 contacts for line, neutral and premating safety ground
  • Fast and easy twist lock latching system
  • Extremely robust and reliable

Specifications

General Characteristics

  • Number of contacts: 2 + PE
  • Termination: Screw or Solder Tab 3/16”
  • Flammability: UL94V-0
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU

Electrical Characteristics

  • Rated Operating Voltage: 250VAC
  • Test Voltage AC RMS: 3200V
  • Current carrying capacity: 25A
  • Typical Contact Resistance: =3mΩ
  • Insulation Resistance (initial): =2GΩ
  • Insulation Resistance (after damp heat test): =1GΩ

Climatic Characteristics

  • Protection Class: IP20
  • Operating Temperature: -25°C to 75°C

Mechanical Characteristics

  • Chassis Connector: 12g
  • Cable Plug: 32g
  • Typical Cable retention force: 200N (Subject to cable material and O.D.)
  • Screw Terminals: 2.5mm2 (AWG14)

Materials

  • Connector Shell / Finish: PA66 GF30 / Black / Grey
  • Insulators: PA66 GF30
  • Cable Boot / Backshell: Santoprene / PBT
  • Cable Clamp (Chuck): P.O.M
  • Contact Plug - Material / Plating: Brass / Silver
  • Contact Chassis - Material / Plating: Phosphor Bronze / Silver
