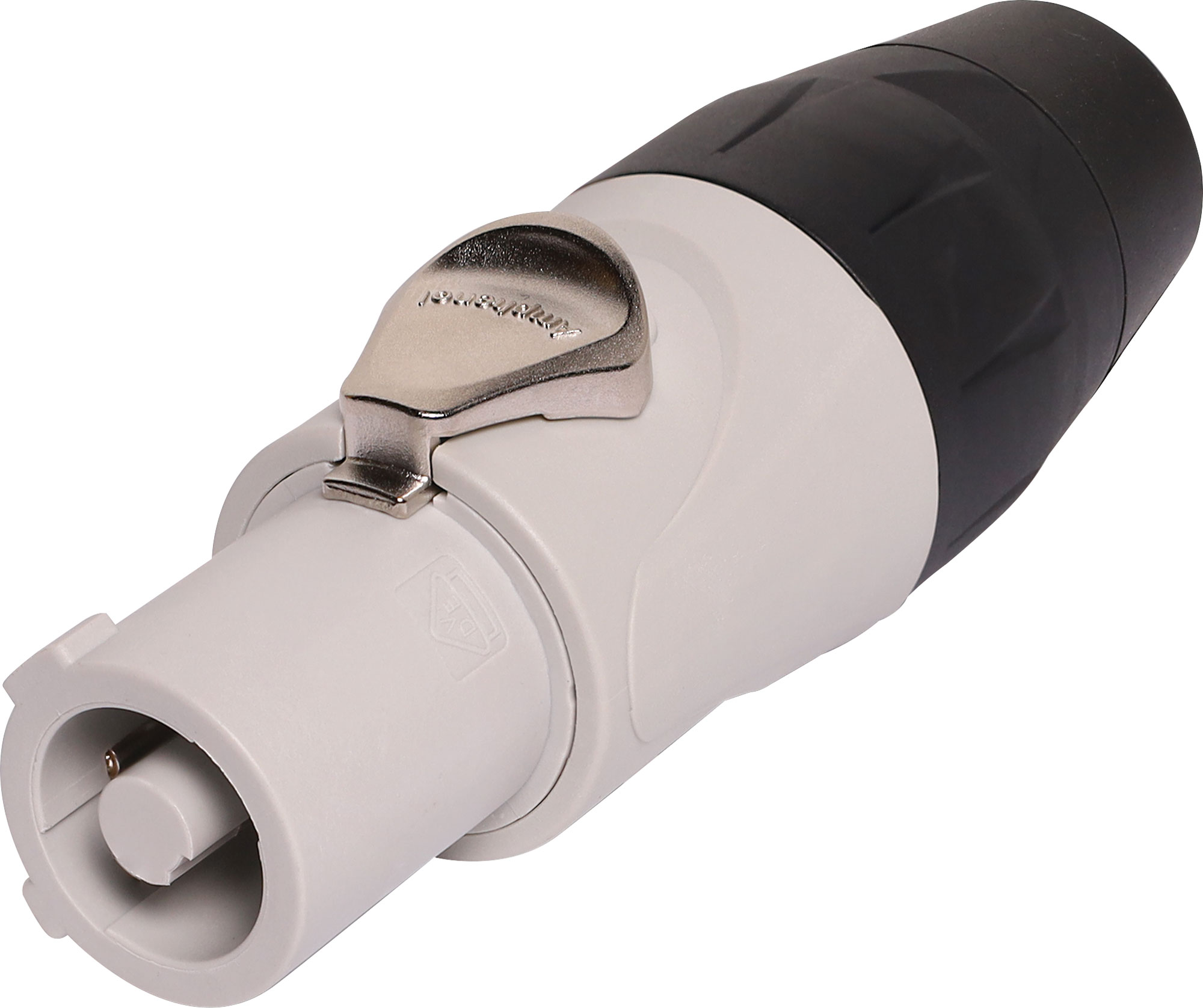

HP-3-FG Power Out 25A Line Connector

Manufacturer: Amphenol
Be the first to review this product
Extra heavy duty Amphenol Power connector as used in commercial heavy duty power applications. Power Out. HP-3-FG 25A 250V. SAA approved.
SKU: PA0772
$12.68
Per ea
QuantityPrice
ea$12.68
5+$11.59
10+$10.23

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Extra heavy duty Amphenol Power connector as used in commercial heavy duty power applications. Power Out. HP-3-FG 25A 250V. SAA approved.






When connecting to mains power this must be installed by a licensed electrician.
To be installed in accordance to the latest issue of AS/NZ 3000 and by a licensed electrician as ruled in the state of installation.


Features

  • Locking 25 A / 250 V AC appliance coupler
  • 3 contacts for line, neutral and premating safety ground
  • Fast and easy twist lock latching system
  • Extremely robust and reliable
  • Ergonomic design
  • User friendly latch design for easy handling

Specifications

Current Rating: 25 A

  • Voltage Rating: 250 V
  • Mounting Angle: Straight
  • Mounting Style: Cable
  • Number of Ports: 1 Port
  • Series: HP
  • Contact Material: Brass
  • Contact Plating: Silver
  • Flammability Rating: UL 94 HB
  • Housing Material: Polyamide (PA)
  • Insulation Resistance: 2 GOhms
  • Maximum Operating Temperature: + 75 C
  • Minimum Operating Temperature: - 25 C
  • Wire Gauge: 14 AWG

12 Months

We Offer 12 Months for this product
