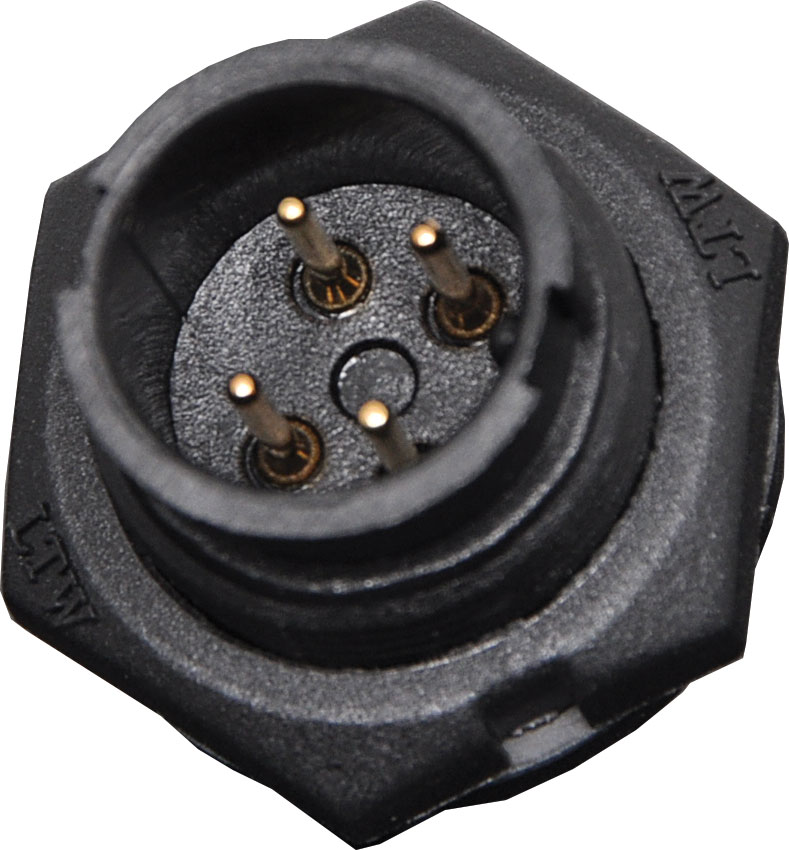

4 Pin 5A Locking Male PCB IP67 Waterproof Plug

Manufacturer: Amphenol LTW
SKU: P9494
Waterproof IP67 rated 4 Pin Male Chassis Mount PCB Connector. Lock type mounting ring.
$13.59

All Prices Shown are (ex GST)
Bulk Pricing
ea $13.59
4+ $13.18
10+ $12.50
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Waterproof IP67 rated 4 Pin Male Chassis Mount PCB Connector. Lock type mounting ring.

See accessories for mating connectors and suitable cap

Dimensions


Specifications

Number of Contacts: 4

  • Gender: Male
  • Mounting Type: Panel Mount
  • Connector Size: Standard
  • Termination Method: Solder
  • Current Rating: 5A
  • IP Rating: IP67
  • Contact Gender: Male
  • Voltage Rating: 500 V dc
  • Mating Type: Bayonet
  • Body Orientation: Straight
  • Series: BD
  • Housing Material: Glass Fibre Reinforced Nylon
  • Contact Plating: Gold
  • Contact Material: Copper Alloy
  • Minimum Operating Temperature: -40°C
  • Maximum Operating Temperature: +105°C
