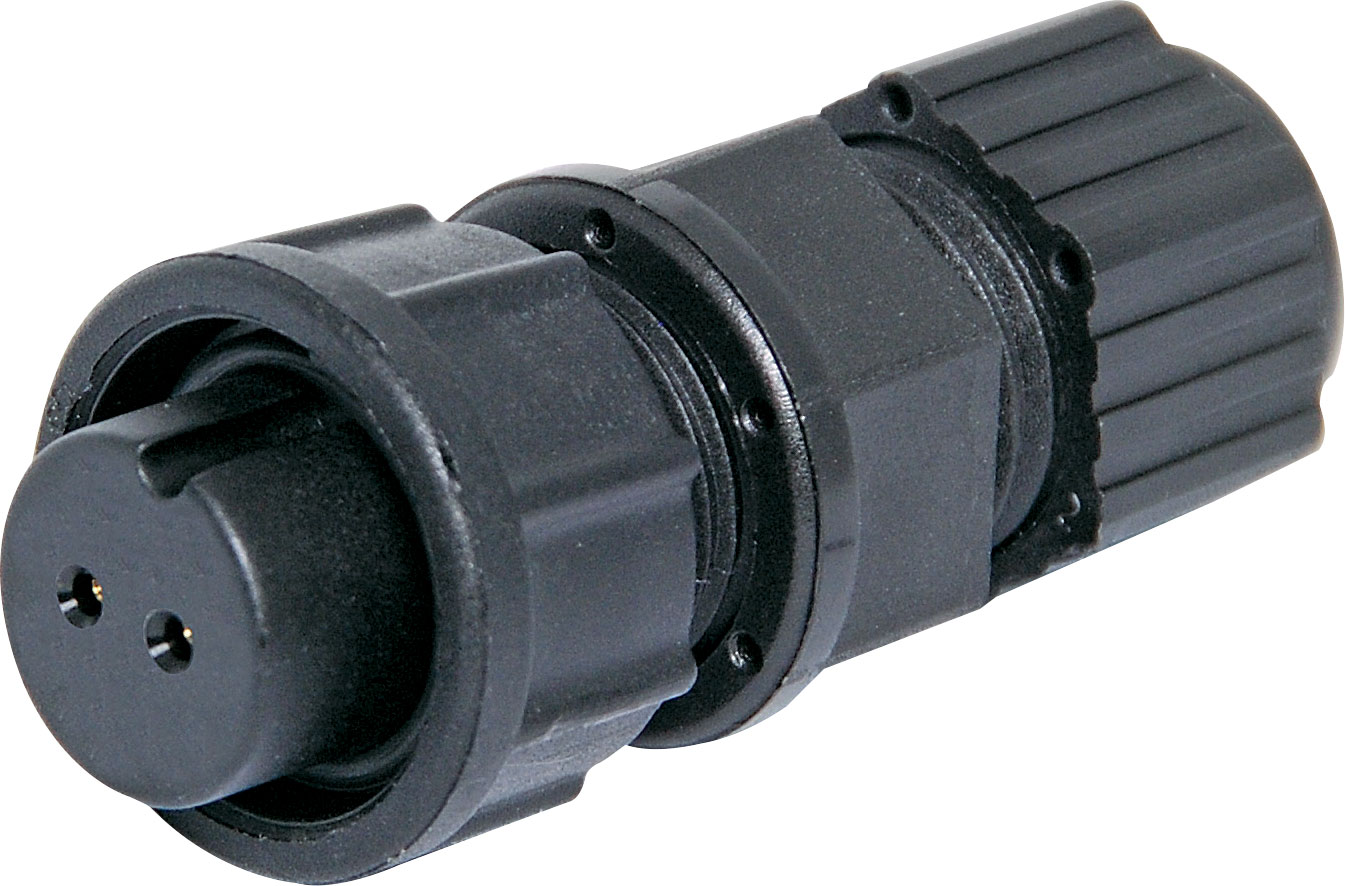

2 Pin 5A Locking Female Line IP67 Waterproof Socket

Manufacturer: Amphenol LTW
SKU: P9482
Waterproof IP67 rated 2 Pin Female Line connector for installations outdoors or in areas prone to moisture build up. Lock Type mating ring. 5A rated.
$19.09

All Prices Shown are (ex GST)
Bulk Pricing
ea $19.09
4+ $16.36
10+ $14.55
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Waterproof IP67 rated 2 Pin Female Line connector for installations outdoors or in areas prone to moisture build up. Lock Type mating ring. 5A rated.

See accessories for mating connectors and suitable cap

Specifications

Number of Contacts: 2

  • Gender: Male
  • Mounting Type: Panel Mount
  • Connector Size: Standard
  • Termination Method: Solder
  • Current Rating: 5A
  • IP Rating: IP67
  • Contact Gender: Male
  • Voltage Rating: 500V dc
  • Mating Type: Bayonet
  • Body Orientation: Straight
  • Series: BD
  • Housing Material: Glass Fibre Reinforced Nylon
  • Minimum Operating Temperature: -40°C
  • Contact Material: Copper Alloy
  • Contact Plating: Gold
  • Maximum Operating Temperature: +105°C

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
