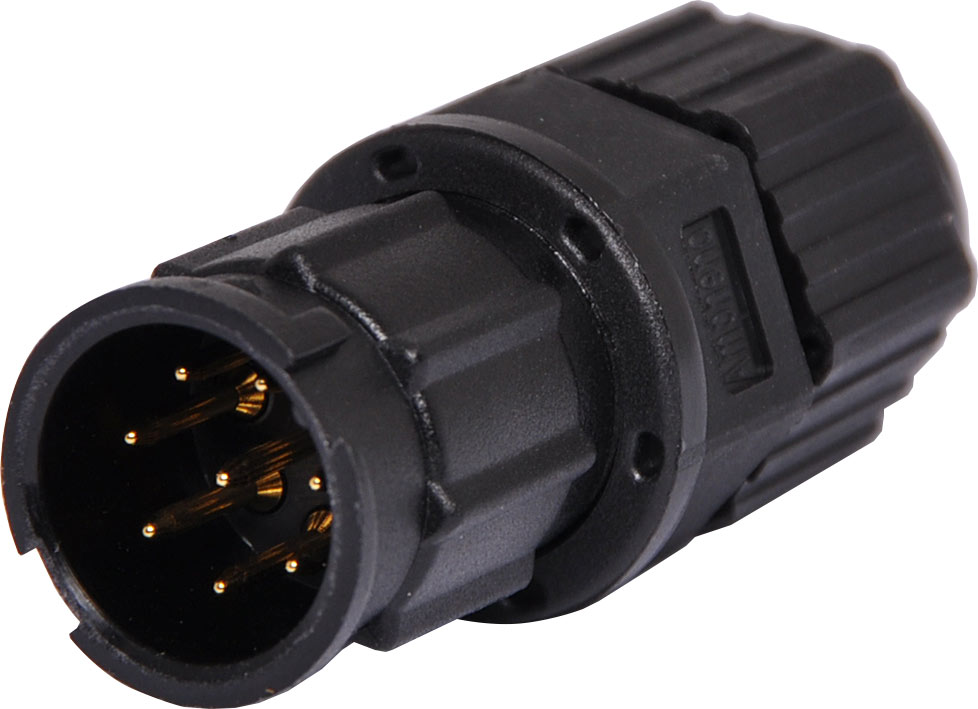

8 Pin 5A Locking Male Line IP67 Waterproof Plug

Manufacturer: Amphenol LTW
Be the first to review this product
Waterproof IP67 rated 8 Pin male line connector for installations outdoors or in areas prone to moisture build up. 5A rated.
SKU: P9478
$25.91
Per ea
QuantityPrice
ea$25.91
4+$23.32
10+$20.73

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Waterproof IP67 rated 8 Pin male line connector for installations outdoors or in areas prone to moisture build up. 5A rated.

See accessories for mating connectors and suitable cap

Specifications

Number of Contacts: 8

  • Gender: Male
  • Mounting Type: Panel Mount
  • Connector Size: Standard
  • Termination Method: Solder
  • Current Rating: 5A
  • IP Rating: IP67
  • Contact Gender: Male
  • Voltage Rating: 500V DC
  • Mating Type: Bayonet
  • Body Orientation: Straight
  • Series: BD
  • Housing Material: Glass Fibre Reinforced Nylon
  • Maximum Operating Temperature: +105°C
  • Minimum Operating Temperature: -40°C
  • Contact Plating: Gold
  • Contact Material: Copper Alloy

12 Months

We Offer 12 Months for this product
