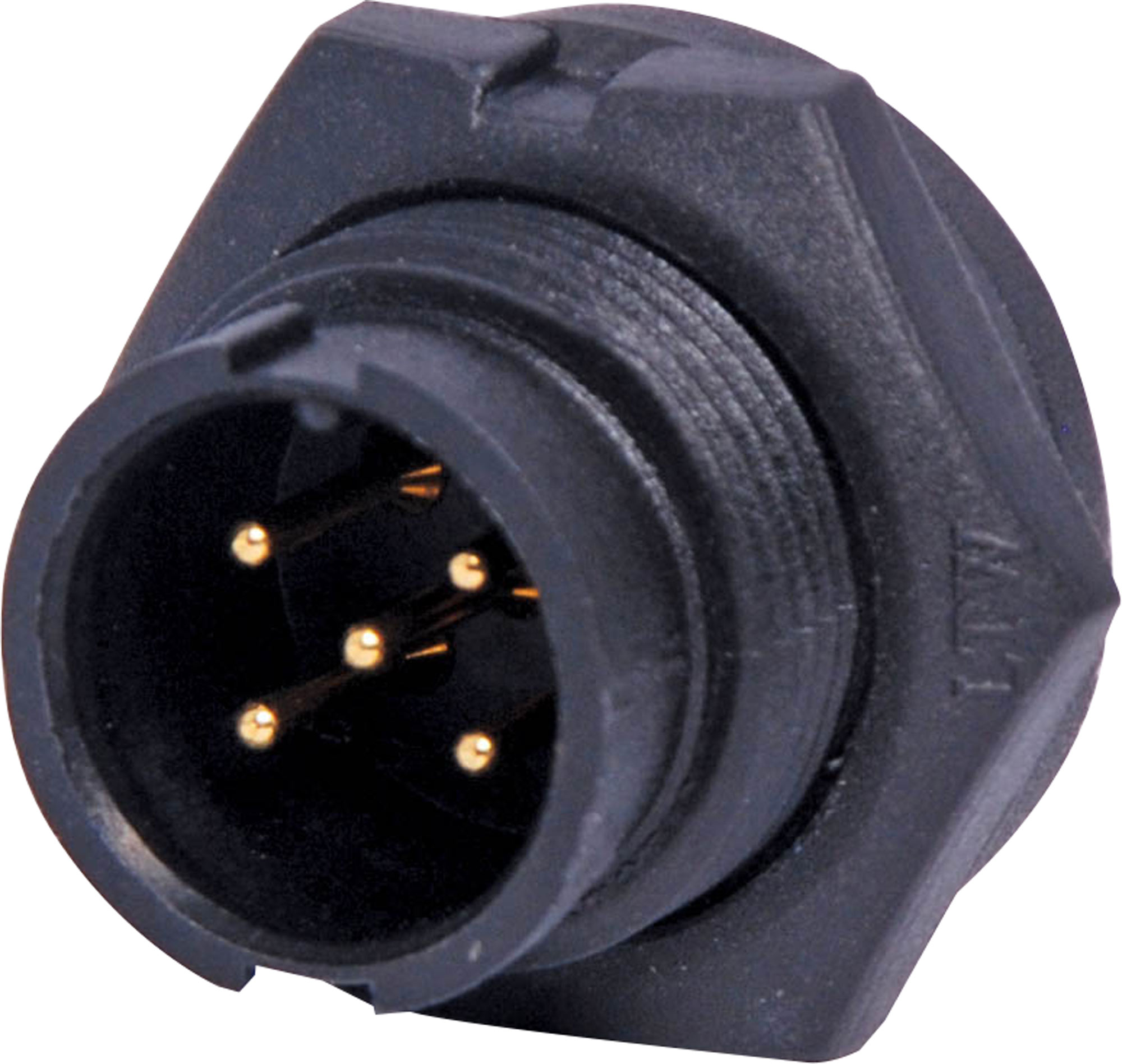

5 Pin 5A Locking Male Chassis IP67 Waterproof Plug

Manufacturer: Amphenol LTW
Be the first to review this product
Waterproof IP67 rated 5 Pin Male Solder cup chassis connector for installations outdoors or in areas prone to moisture build up. Lock Type mating ring. 5A rated.
SKU: P9465
$12.68
Per ea
QuantityPrice
ea$12.68
4+$12.27
10+$11.77

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Waterproof IP67 rated 5 Pin Male Solder cup chassis connector for installations outdoors or in areas prone to moisture build up. Lock Type mating ring. 5A rated.

Specifications

Number of Contacts: 5

  • Gender: Male
  • Mounting Type: Panel Mount
  • Connector Size: Standard
  • Termination Method: Solder
  • Current Rating: 5A
  • IP Rating: IP67
  • Contact Gender: Male
  • Voltage Rating: 500V dc
  • Mating Type: Bayonet
  • Body Orientation: Straight
  • Series: BD
  • Housing Material: Glass Fibre Reinforced Nylon
  • Contact Plating: Gold
  • Contact Material: Copper Alloy
  • Minimum Operating Temperature: -40°C
  • Maximum Operating Temperature: +105°C

12 Months

We Offer 12 Months for this product
