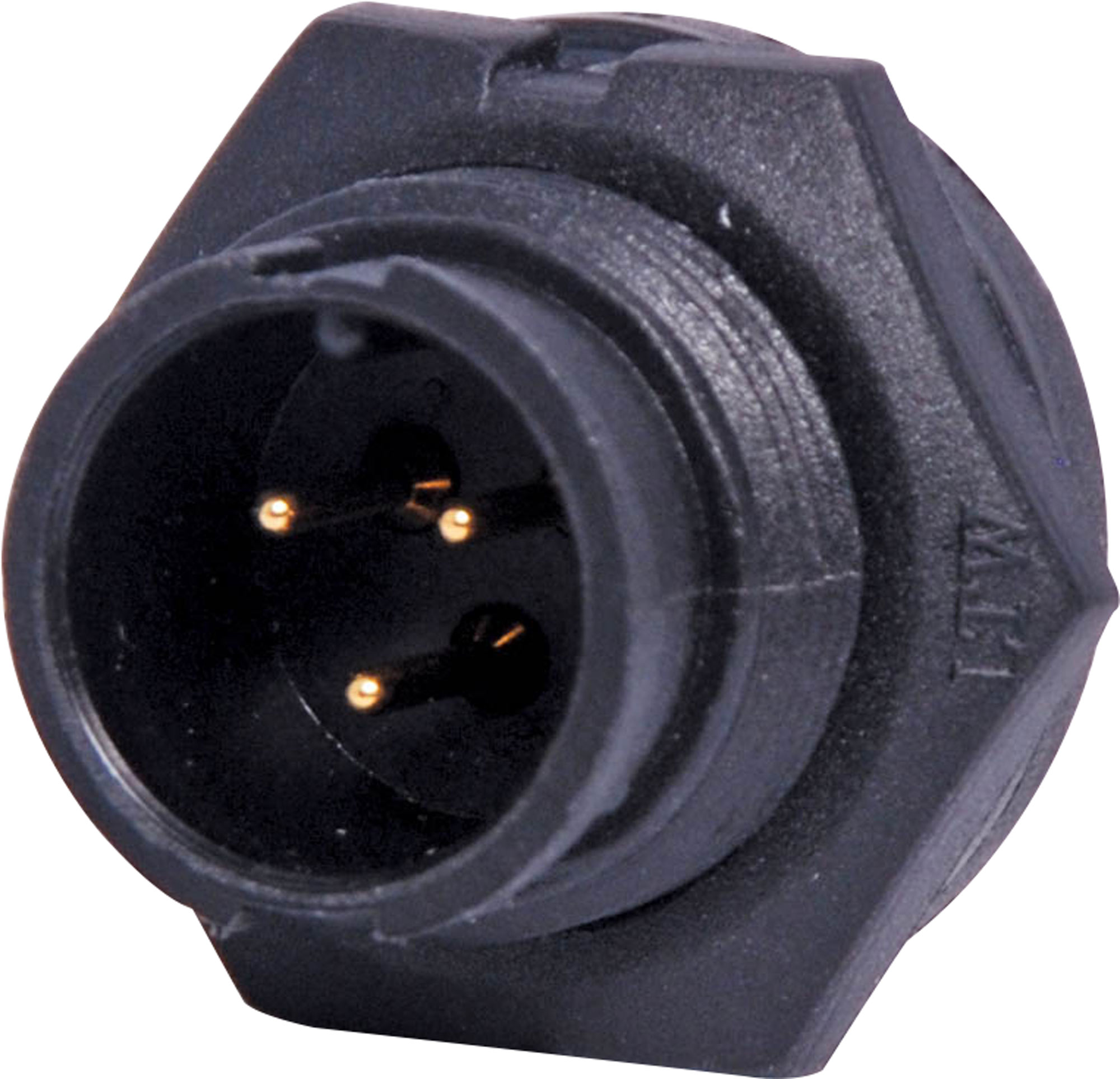

3 Pin 5A Locking Male Chassis IP67 Waterproof Plug

Manufacturer: Amphenol LTW
Be the first to review this product
Waterproof IP67 rated 3 Pin Male Solder cup chassis connector for installations outdoors or in areas prone to moisture build up. Lock Type mating ring. 5A rated.
SKU: P9463A
$12.50
Per ea
QuantityPrice
ea$12.50
4+$12.05
10+$11.59

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Waterproof IP67 rated 3 Pin Male Solder cup chassis connector for installations outdoors or in areas prone to moisture build up. Lock Type mating ring. 5A rated.

See accessories for mating connectors and suitable cap

Specifications

Number of Contacts: 3

  • Gender: Male
  • Mounting Type: Panel Mount
  • Connector Size: Standard
  • Termination Method: Solder
  • Current Rating: 5A
  • IP Rating: IP67
  • Contact Gender: Male
  • Voltage Rating: 500V dc
  • Mating Type: Bayonet
  • Body Orientation: Straight
  • Series: BD
  • Housing Material: Glass Fibre Reinforced Nylon
  • Contact Plating: Gold
  • Contact Material: Copper Alloy
  • Minimum Operating Temperature: -40°C
  • Maximum Operating Temperature: +105°C

12 Months

We Offer 12 Months for this product
