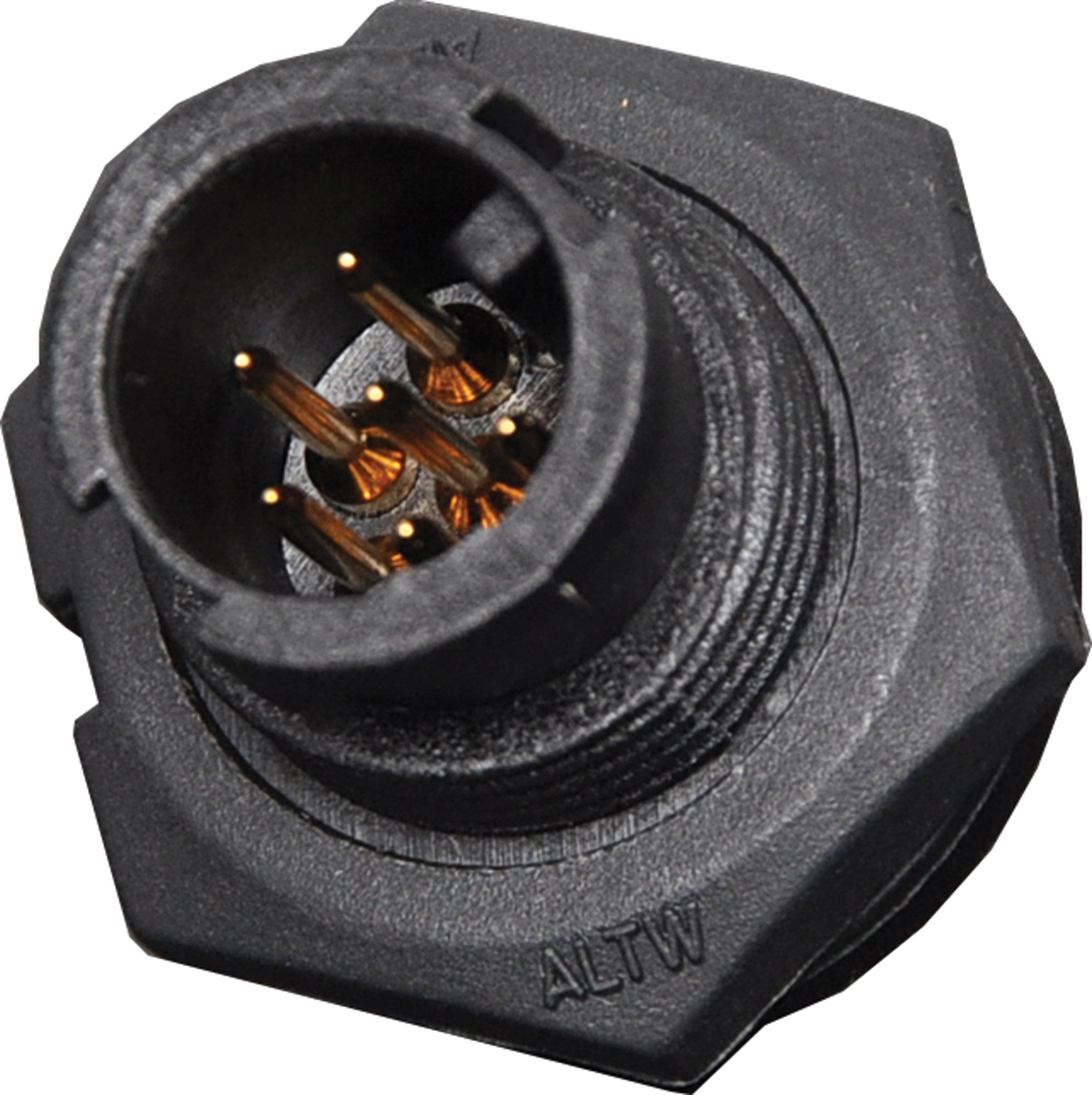

6 Pin 2A Locking Male Chassis IP66 Waterproof Plug

Manufacturer: Amphenol LTW
Be the first to review this product
IP67 rated waterproof 2, 4 and 6 pin connectors for installations outdoors or in areas prone to moisture build up. 2 pin rated at 5A. 4 & 6 pin rated at 2A.
SKU: P9366
$13.59
Per ea
QuantityPrice
ea$13.59
4+$12.50
10+$12.05

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

IP67 rated waterproof 2, 4 and 6 pin connectors for installations outdoors or in areas prone to moisture build up. 2 pin rated at 5A. 4 & 6 pin rated at 2A.

Specifications

Connector Gender: Male connector

  • Mating Style: 2 point lock bayonet
  • Current Rating: 2A
  • No. of Contacts: 6 pins
  • Contact Gender: Male pin
  • Field installable: Solder
  • Connector body type: Front Fastened
  • Backshell: Circular
  • Waterproof Rating: IP67, Unmated
  • Panel Cut (mm): 10.9X10.4
  • Panel Thickness (mm): With Cap:2.3 Without Cap:3.5
  • Voltage rating: 300V

12 Months

We Offer 12 Months for this product
