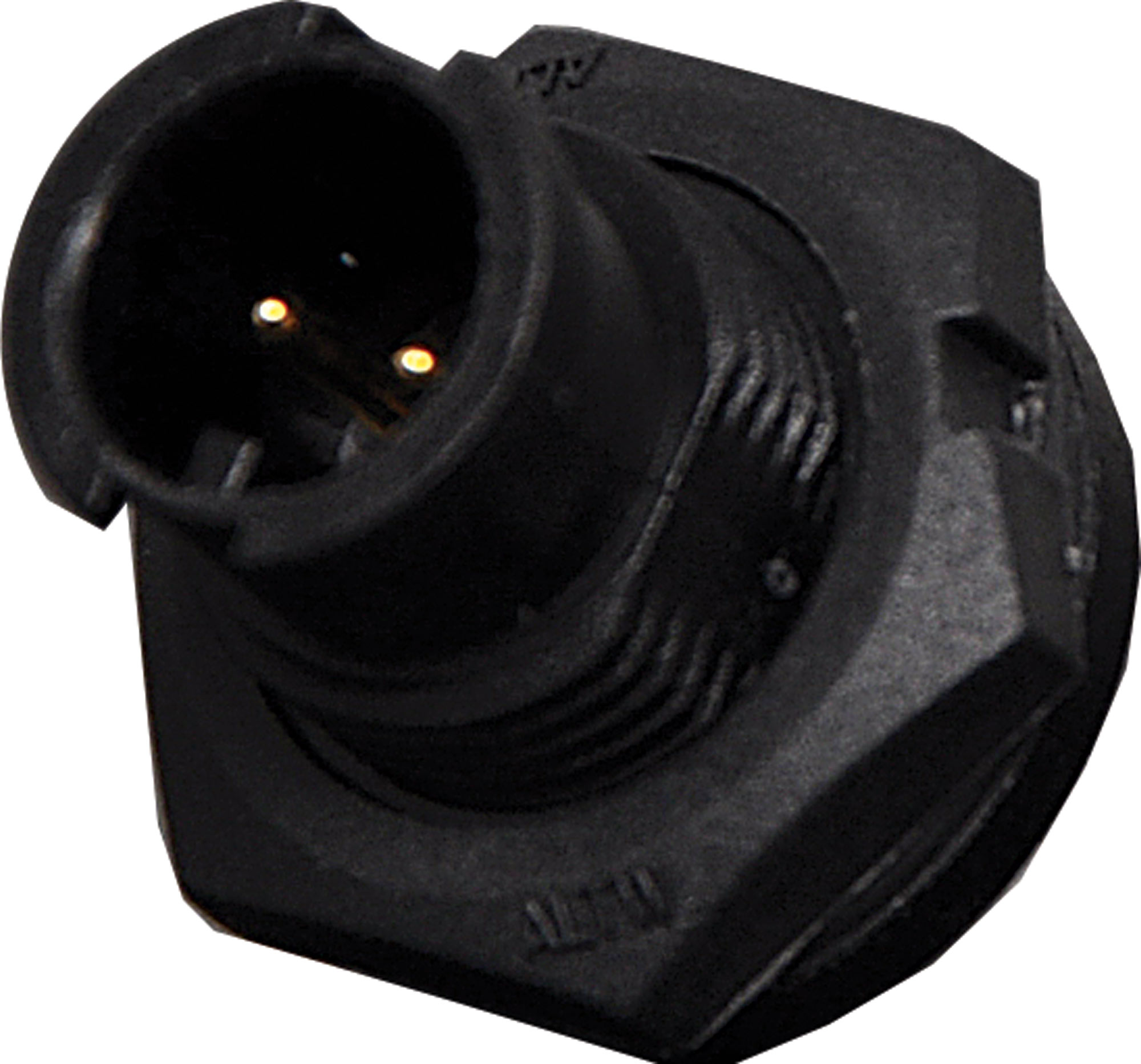

2 Pin 5A Locking Male Chassis IP66 Waterproof Plug

Manufacturer: Amphenol LTW
SKU: P9362
IP67 rated waterproof 2, 4 and 6 pin connectors for installations outdoors or in areas prone to moisture build up. 2 pin rated at 5A. 4 & 6 pin rated at 2A. Cable Entry: 4.5-6.5mm
$9.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $9.55
4+ $8.86
10+ $8.32
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

IP67 rated waterproof 2, 4 and 6 pin connectors for installations outdoors or in areas prone to moisture build up. 2 pin rated at 5A. 4 & 6 pin rated at 2A.

Cable Entry: 4.5-6.5mm

Specifications

Connector Gender: Male connector

  • Mating Style: 2 point lock bayonet
  • Current Rating: 5A
  • No. of Contacts: 2 pins
  • Contact Gender: Male pin
  • Field installable: Solder
  • Connector body type: Front Fastened (See more details)
  • Backshell: Circular
  • Waterproof Rating: IP67,Unmated
  • Version: 001
  • Panel Cut (mm): 10.9X10.4
  • Panel Thickness (mm): With Cap:2.3 Without Cap:3.5
  • Voltage rating: 300V

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
