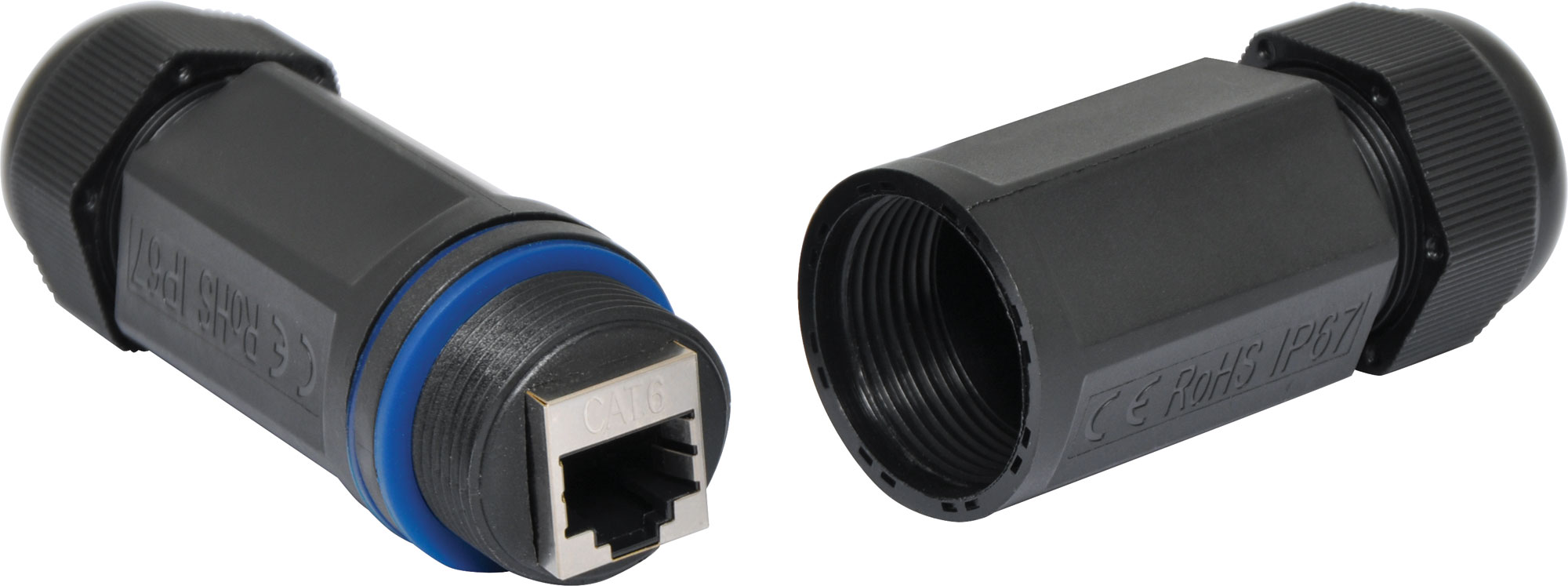

IP67 In-Line Weatherproof Cat6 Joiner

Be the first to review this product
A waterproof joiner for data cables with RJ45 back to back internal connection.
SKU: P9304
$13.59
Per ea
QuantityPrice
ea$13.59
4+$12.05
10+$11.14

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A waterproof joiner for data cables with RJ45 back to back internal connection. The blue sealing o-rings have a split allowing cables which have already been terminated, or pre-made patch leads to be threaded through the connector housing.

Specifications

Coupler Material

  • Shield: BRASS
  • Plastic Housing:ABS
  • RJ45 contact material& finished:
  • Phospor Bronze Nickel plated
  • Contact area: Gold plated

Performance

  • Insertion force: 900gms for 8 contacts.
  • Retention strength: 7.7kgs between jack and plug.
  • Operation temperature: -20°C to 68°C

Durability

  • Jack: 750 cycles plug-jack mating and unmating test,
  • Insertion cycle at 20 cycles/minute max.
  • Contact resistance test per 100 cycles.
  • The cat.6 performance is in compliance with the ANSI/TIA/EIA 568C standard. RoHS2.0 (2011/65/EU) Compliant

12 Months

We Offer 12 Months for this product
