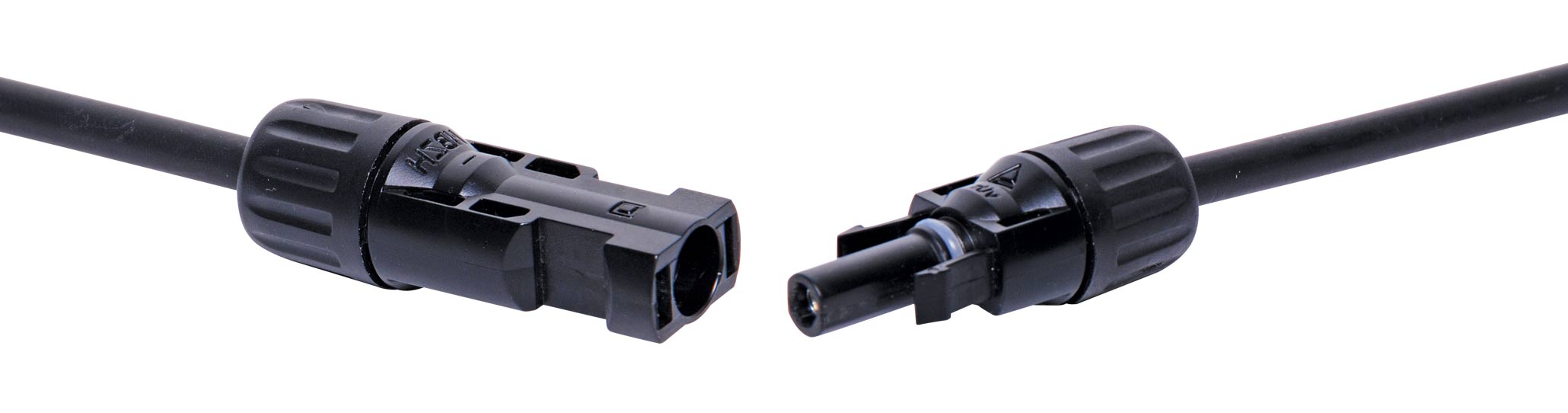

2m Solar MC4 Style Male to Female Lead

SKU: P8615B
Water & dust proof - IP67 Rated. This lead can be used for connections in photovoltaic solar panel arrays. The fully sealed design is suitable for use in exposed installations.
$24.50

All Prices Shown are (ex GST)
Bulk Pricing
ea $24.50
4+ $22.27
10+ $20.45
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Water & dust proof - IP67 Rated. This lead can be used for connections in photovoltaic solar panel arrays. The fully sealed design is suitable for use in exposed installations.

Specifications

Rated Current： 30A

  • Rated Voltage： 1000V DC (TUV) / 600V DC（UL）
  • Test Voltage: 6KV(50Hz,1min)
  • Contact resistance of blug connectors: ≤0.5mΩ
  • Safety Class： Class Ⅱ
  • Protection Degree,mated： IP67
  • Protection Dearee,Unmated IP2X
  • Wire Size Range： 4-6mm2 (TUV) / 12AWG（UL）
  • Flame Class： UL94-V0(TUV) /5VA（UL）
  • Insulation Material： PC&PPO
  • Temperature Range： -40°C...+85°C (TUV)/ -40°C...+90°C (UL)
  • Certification： TUV & UL

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
