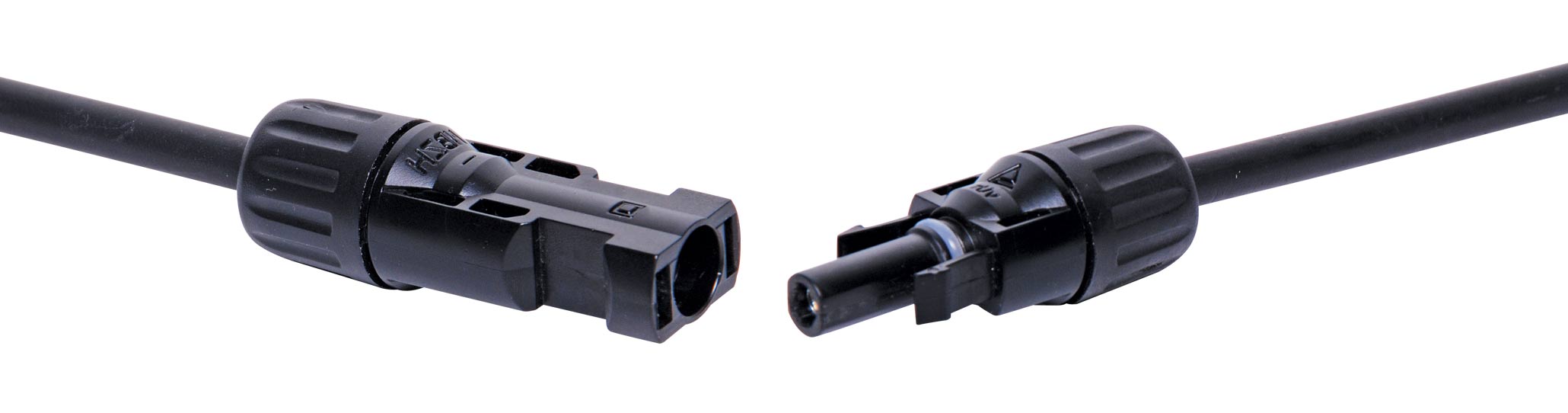

2m Solar MC4 Style Male to Female Lead

SKU: P8615A
Water & dust proof - IP67 Rated. This lead can be used for connections in photovoltaic solar panel arrays. The fully sealed design is suitable for use in exposed installations.
$19.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $19.55
4+ $17.73
10+ $16.36
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Water & dust proof - IP67 Rated. This lead can be used for connections in photovoltaic solar panel arrays. The fully sealed design is suitable for use in exposed installations.

Specifications

Rated Current: 30A

  • Rated Voltage: 1000V DC (TUV) / 600V DC (UL)
  • Test Voltage: 6KV (50Hz,1min)
  • Contact Resistance of Lug Connectors: =0.5mΩ
  • Safety Class: Class 2
  • Protection Degree (mated): IP67
  • Protection Degree (unmated): IP2X
  • Wire Size Range: 4-6mm2 (TUV) / 12AWG (UL)
  • Flame Class: UL94-V0 (TUV) /5VA (UL)
  • Insulation Material: PC&PPO
  • Temperature Range: -40°C ~ +85°C (TUV)/ -40°C ~ +90°C (UL)
  • Certification: TUV & UL

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
