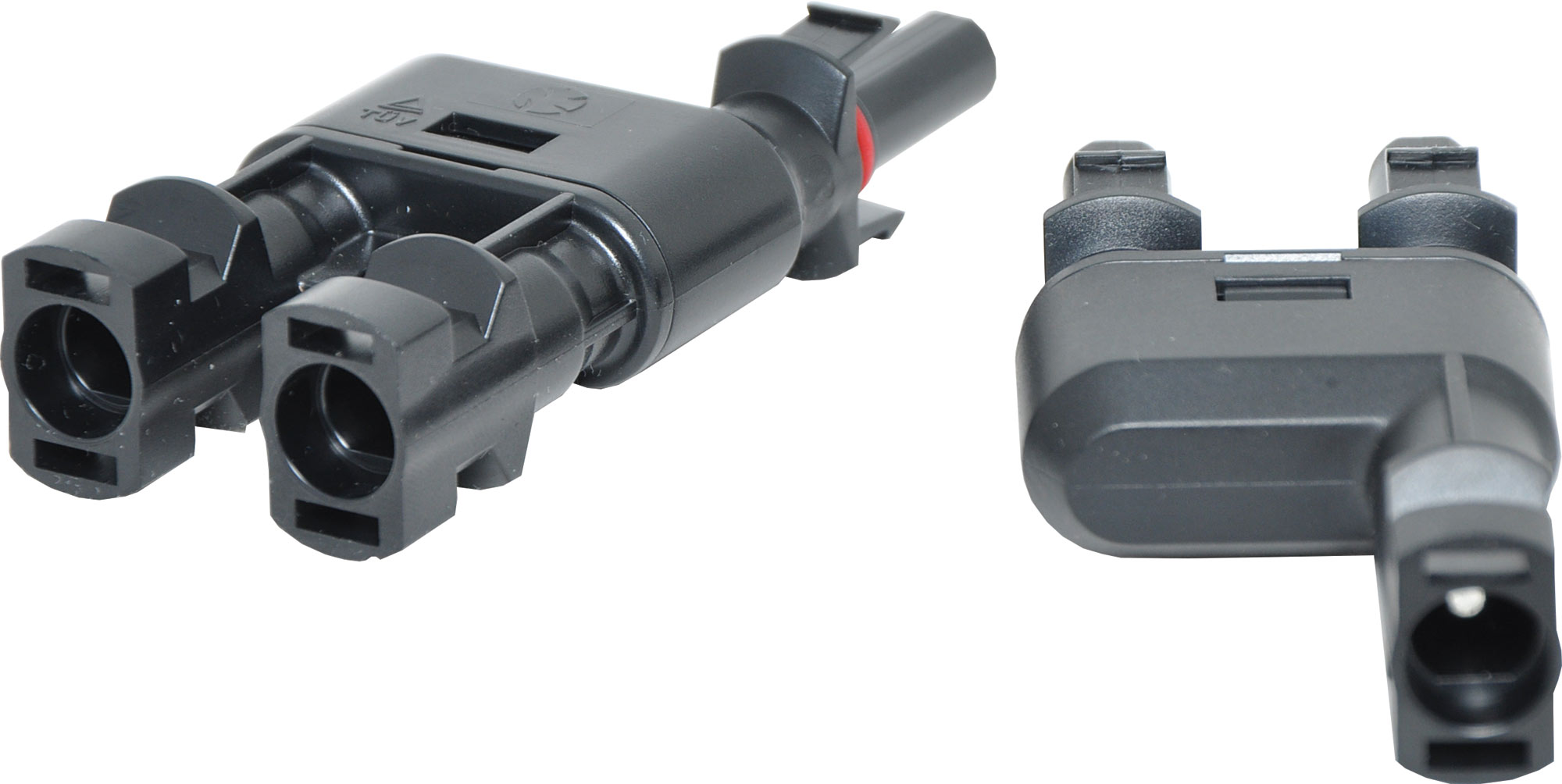

IP67 MC4 Style Solar Panel 30A Y Adapter Pair

Be the first to review this product
MC4 style dual line plug adaptor designed for use when daisy chaining solar panels together.
SKU: P8611
$24.50
Per ea
QuantityPrice
ea$24.50
4+$23.18
10+$21.77

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

MC-4 style dual line plug adaptor designed for use when daisy-chaining solar panels together. Water & dust proof - IP67 rated. Commonly used on photovoltaic solar panel arrays. Fully sealed design is suitable for use in exposed installations. Rated 30A @ 1000VDC (70°C).

Specifications:

Contact Material: Copper, Silver Plated

  • Insulation Material: PPO
  • Rated Current: 30A (2-4mm2)
  • Rated Voltage: DC 1000V TUV
  • Test Voltage: 6000V (50Hz, 1min)
  • Contact Resistance: 0.5mΩ
  • Protection Requirement: IP67
  • Safety Class: II
  • Flame Class: UL94 - V0
  • Insertion Force: = Withdrawal Force: >= 50N
  • Temperature Range: -40 ~ +90°C
  • Over Voltage Category/Pollution Degree: CATIII/2

12 Months

We Offer 12 Months for this product
