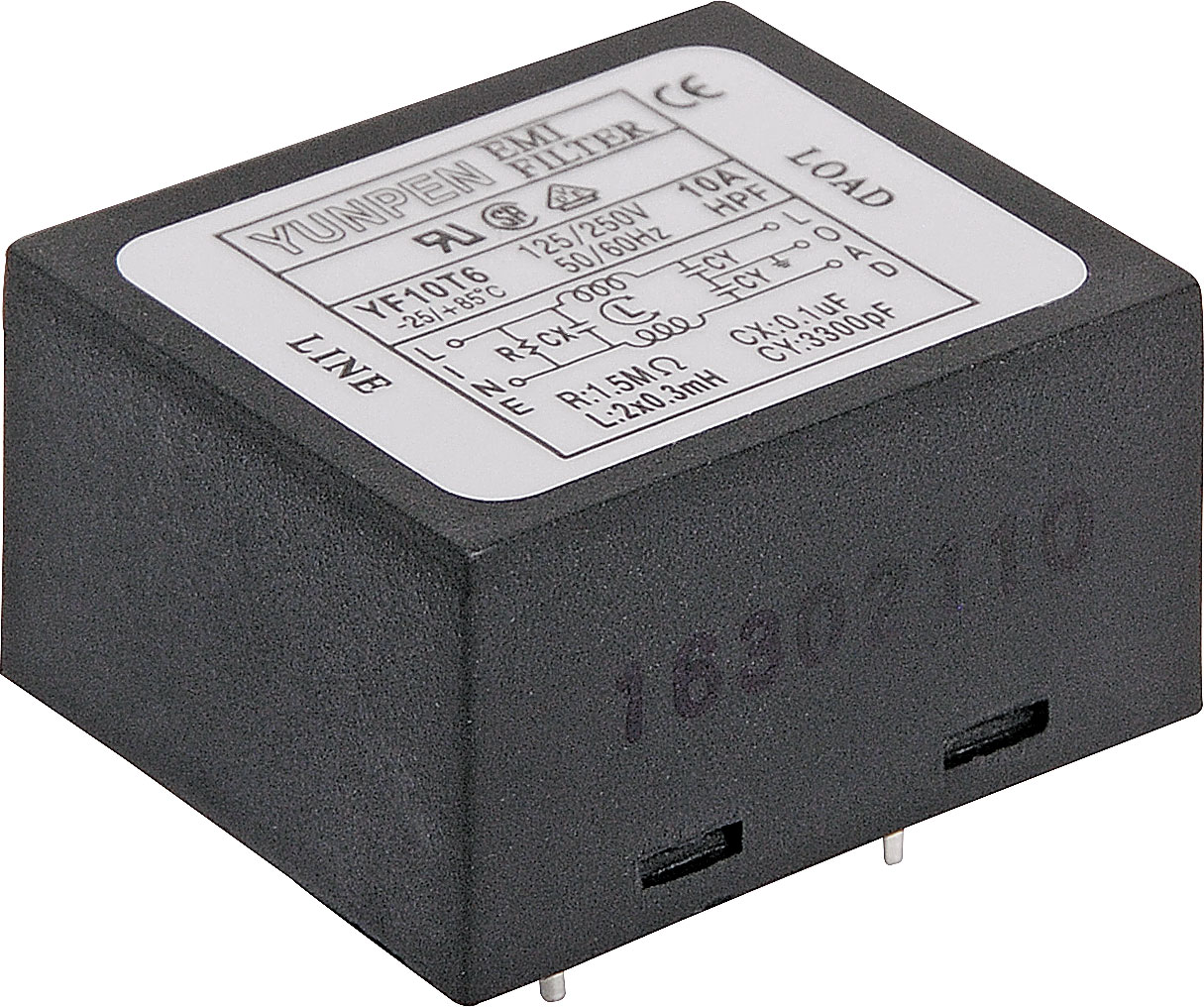

250V 10A Mains PCB Mount EMI Filter

Specifications

Rated Voltage: 250V AC

• Rated Current: 10A
• Leakage Current: 0.8mA Max @ 250V AC 50Hz
• Test Voltage:
• - Line to Line: 1450V DC
• - Line to Ground: 2250V DC
• Insulation Resistance: 100MΩ @ 250V DC
• Direct Current Resistance: 0.1Ω Max
• Temperature Increase: 30ºC Max
• Operating Temperature: -25ºC - +85ºC
• Attenuation:
• - Normal Mode 25dB/Min: 1.50 - 50MHz
• - Common Mode 25dB/Min: 1.50 - 50MHz
• CX: 0.1µF
• CY: 2 x 3300pF
• Inductance: 2 x 0.3mH
