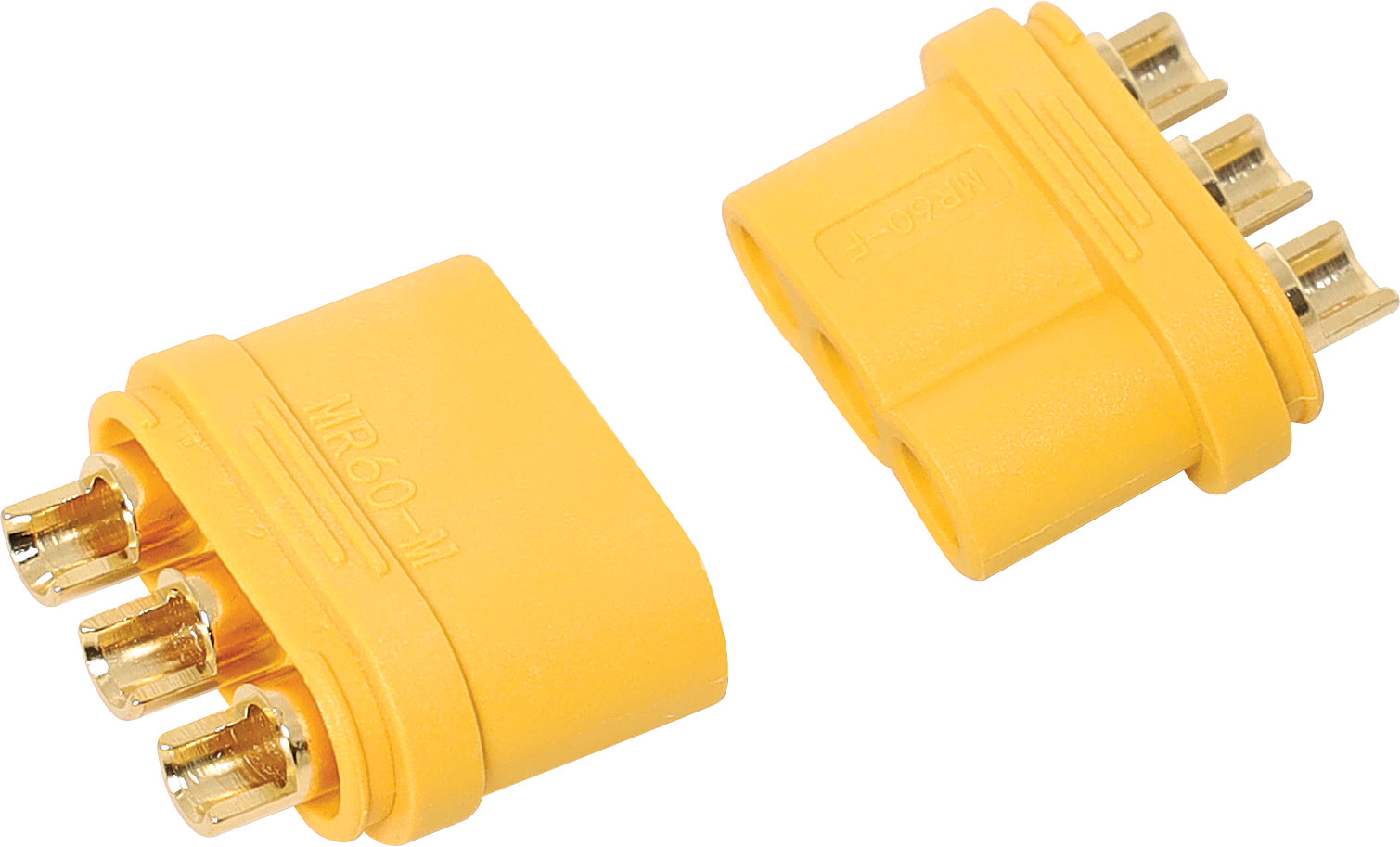

60A 500V MR60 Style High Current DC Connector

SKU: P7827
These MR60 connectors are ideal for use as battery connectors in high current draw applications such as RC LiPo batteries.
$5.41

All Prices Shown are (ex GST)
Bulk Pricing
ea $5.41
4+ $4.86
10+ $4.32
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

These MR60 connectors are ideal for use as battery connectors in high current draw applications such as RC LiPo batteries. Supplied as plug & socket pair. 60A rated @ 500V DC.

Features

  • Suitable for connecting ESCs and motors
  • With protective sleeve
  • Assistive weld foot, more stable

Specifications

Body Material and Surface Plating: Brass and gold plated

  • Insulation Material: PA66
  • Contact Resistance: 0.5mΩ
  • Rated Voltage: DC 500V
  • Rated Current: 30A
  • Instantaneous Current: 60A
  • FR Level: UL94 V0
  • USE Times: 1000 times
  • Cable SPEC: 12AWG
  • Operating Temperature: -20?--120?

Warranty & Returns

12 Months

We Offer 12 Months for this product
